1987 Kawasaki Tecate 4 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1987 Kawasaki Tecate 4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

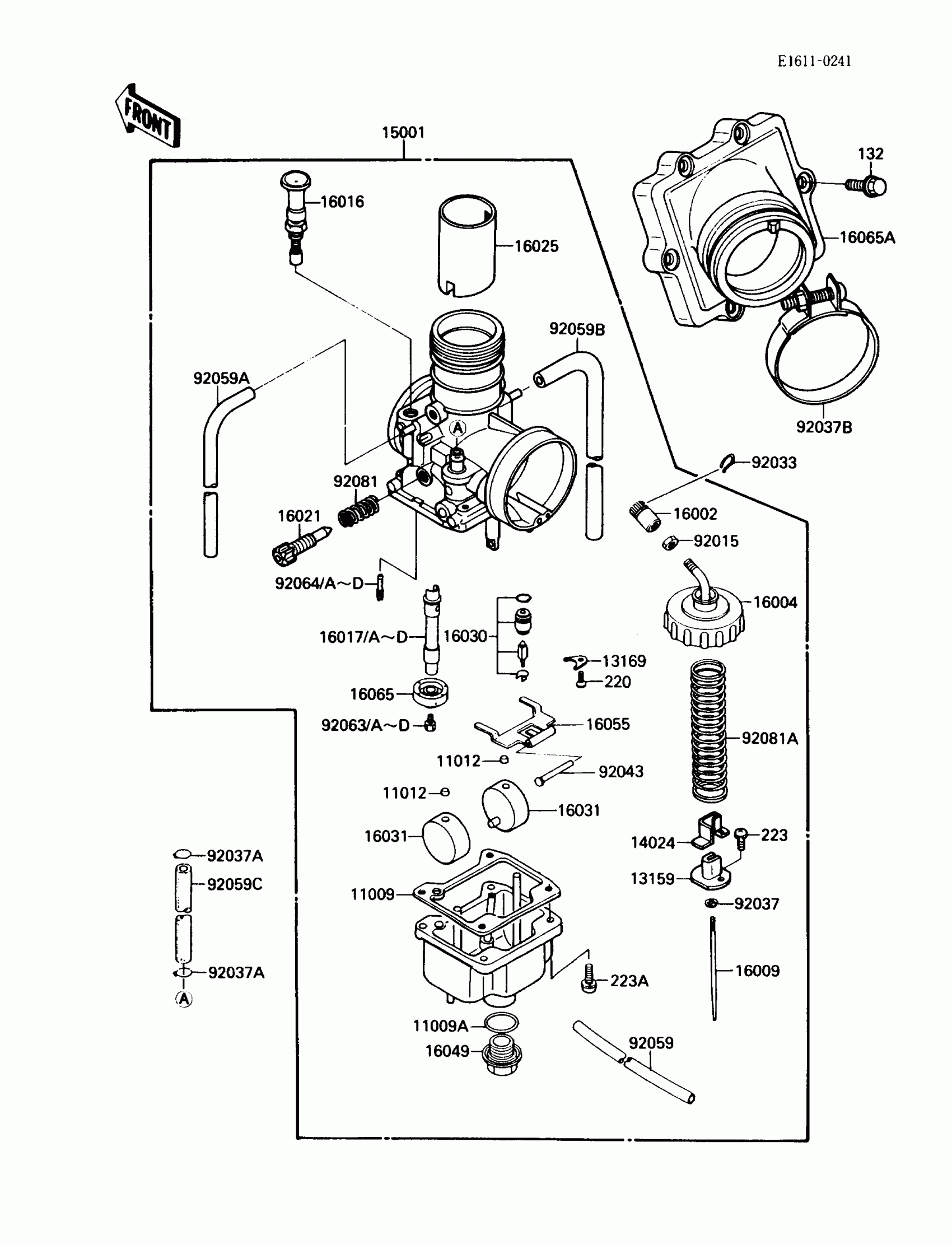

1987 Kawasaki Tecate 4 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FLOAT CHAMBER

11009-1275

1
Out of stock

11009A

GASKET,MAIN JET COVER

16038-009

1
Out of stock

11012

CAP,FLOAT

11012-1047

1
Out of stock

13159

CONNECTOR

13159-1004

1
Out of stock

13169

PLATE, LOCK

13169-1190

1
Out of stock

14024

COVER,THROTTLE VALVE

14025-1113

1
Out of stock

15001

CARBURETOR-ASSY

15001-1338

1
Out of stock

16002

ADJUSTER-CABLE

16002-1006

1
Out of stock

16004

CAP-CHAMBER,MIXING

16004-1013

1
Out of stock

16009

NEEDLE-JET,6FL61-3

16009-1350

1
Out of stock

16016

PLUNGER ASSY,STARTER

16016-1013

1
Out of stock

16017

JET-NEEDLE,Q-8

16017-1295

1
Out of stock

16017A

JET-NEEDLE,Q-6

16017-1306

1
Out of stock

16017B

JET-NEEDLE,Q-4

16017-1333

1
Out of stock

16017C

JET-NEEDLE,Q-2

16017-1334

1
Out of stock

16017D

JET-NEEDLE,Q-0

16017-1336

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1029

1
Out of stock

16025

VALVE-THROTTLE,CA 3.0

16025-1145

1
Out of stock

16030

VALVE-FLOAT,3.3

16030-1020

1
Out of stock

16031

FLOAT

16031-029

1
Out of stock

16049

COVER-MAIN JET

16049-006

1
Out of stock

16055

ARM-FLOAT

16055-009

1
Out of stock

16065

HOLDER-CARBURETOR,NEEDLE JET

16065-1045

1
Out of stock

16065A

HOLDER-CARBURETOR

16065-1163

1
Out of stock

92015

NUT,CABLE ADJUST LOCK

16003-004

1
Out of stock

92033

RING-SNAP

92036-018

1
Out of stock

92037

CLAMP,E-TYPE

16008-010

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP,55MM

92037-1486

1
Out of stock

92043

PIN,FLOAT

16032-008

1
Out of stock

92059

TUBE,3.5X6.5X350

92059-1211

1
Out of stock

92059A

TUBE,4X7X250

92059-1858

1
Out of stock

92059B

TUBE,4X7X325

92059-1877

1
Out of stock

92059C

TUBE,2.5X5.8X270

92059-3731

1
Out of stock

92063

JET-MAIN,#240

92063-026

1
Out of stock

92063A

JET-MAIN NO 250A

92063-027

1
Out of stock

92063B

JET-MAIN NO 260A

92063-028

1
Out of stock

92063C

JET-MAIN NO 270A

92063-029

1
Out of stock

92063D

JET-MAIN NO 280A

92063-030

1
Out of stock

92064

JET-PILOT,#30

92064-022

1
Out of stock

92064A

JET-PILOT NO 35

92064-023

1
Out of stock

92064B

JET-PILOT NO 40

92064-024

1
Out of stock

92064C

JET-PILOT,#25

92064-032

1
Out of stock

92064D

JET-PILOT,#27.5

92064-1033

1
Out of stock

92081

SPRING,THROTTLE STOP SCREW

16022-005

1
Out of stock

92081A

SPRING,THROTTLE VALVE

92081-1432

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

220

SCREW PAN HEAD 4X6

220B0406

1
Out of stock

223

SCREW-PAN-WS-CROS

223B0308

1
Out of stock

223A

SCREW-PAN-WS-CROS

223B0518

1
Out of stock
