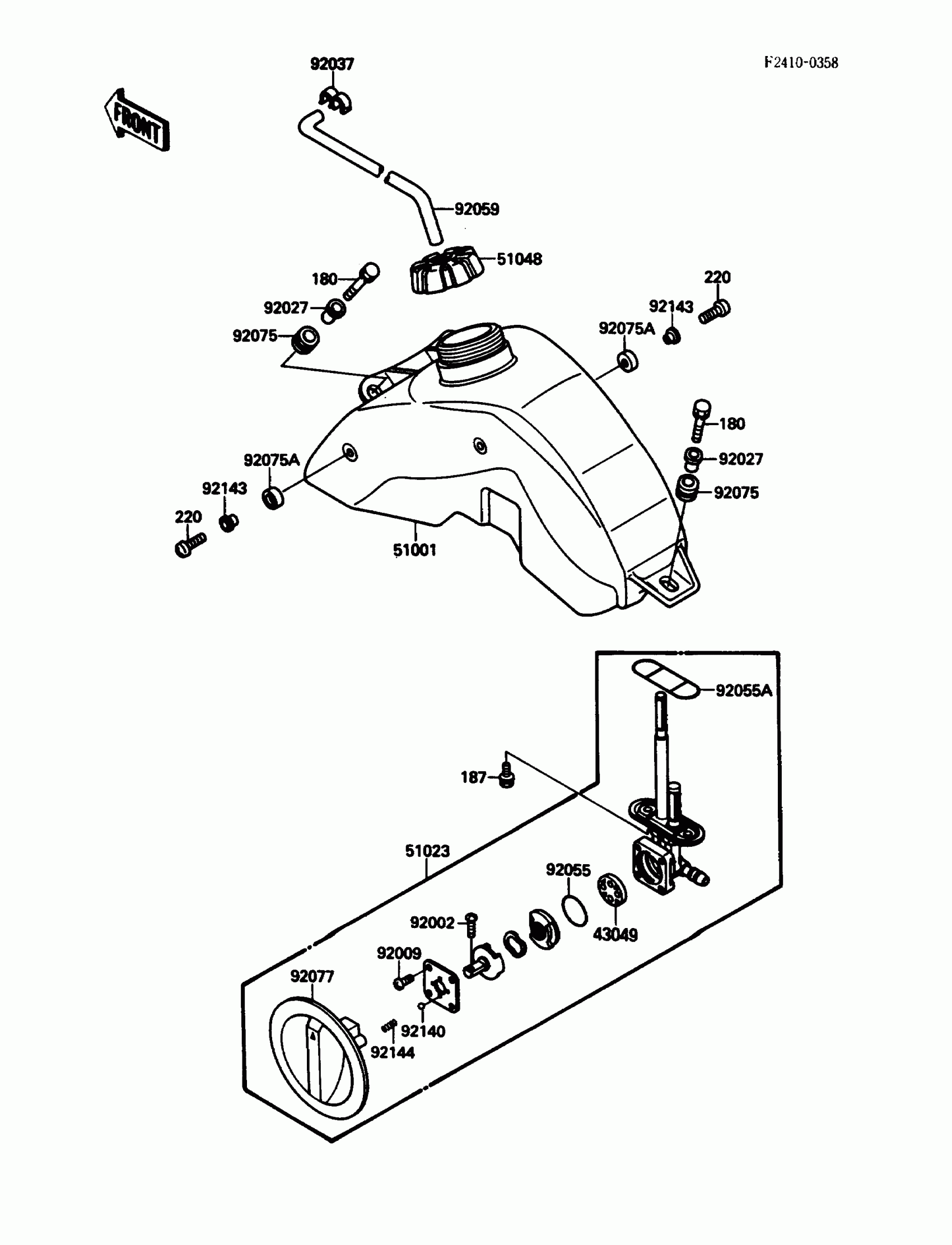

Kawasaki Tecate 4 Fuel Tank Diagram

#

Description
Price

43049

PACKING,FUEL TAP LEVER

43049-1017

$5.54

51001

TANK-COMP-FUEL

51001-1262

$164.09

51023

TAP-ASSY,FUEL

51023-1137

Unavailable

51048

CAP-ASSY-TANK,FUEL

51048-1090

$57.18

92002

BOLT,SCREW,4X12

92002-1996

$4.08

92009

SCREW,3X5

92009-1123

$0.54

92027

COLLAR,L=16.1

92027-1847

$4.67

92037

CLAMP,HOSE

92037-1603

$3.81

92055

RING-O,FUEL TAP LEVER

92055-1111

$3.81

92055A

RING-O,FUEL TAP PACKING

92055-1348

$5.61

92059

TUBE,5X9X250

92059-1258

$11.19

92075

DAMPER

92075-1787

$4.93

92075A

DAMPER,FUEL TANK

92075-1910

$2.80

92077

KNOB,FUEL TAP

92077-1078

$55.16

92140

BALL,STAINLESS,5/32"

92140-1051

$4.32

92143

COLLAR,L=4.5

92027-1965

$5.51

92144

SPRING,FUEL TAP KNOB

92144-1212

$3.98

180

BOLT-UPSET-WS,6X25

180D0625

$3.25

187

BOLT 6X14

187B0614

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable
