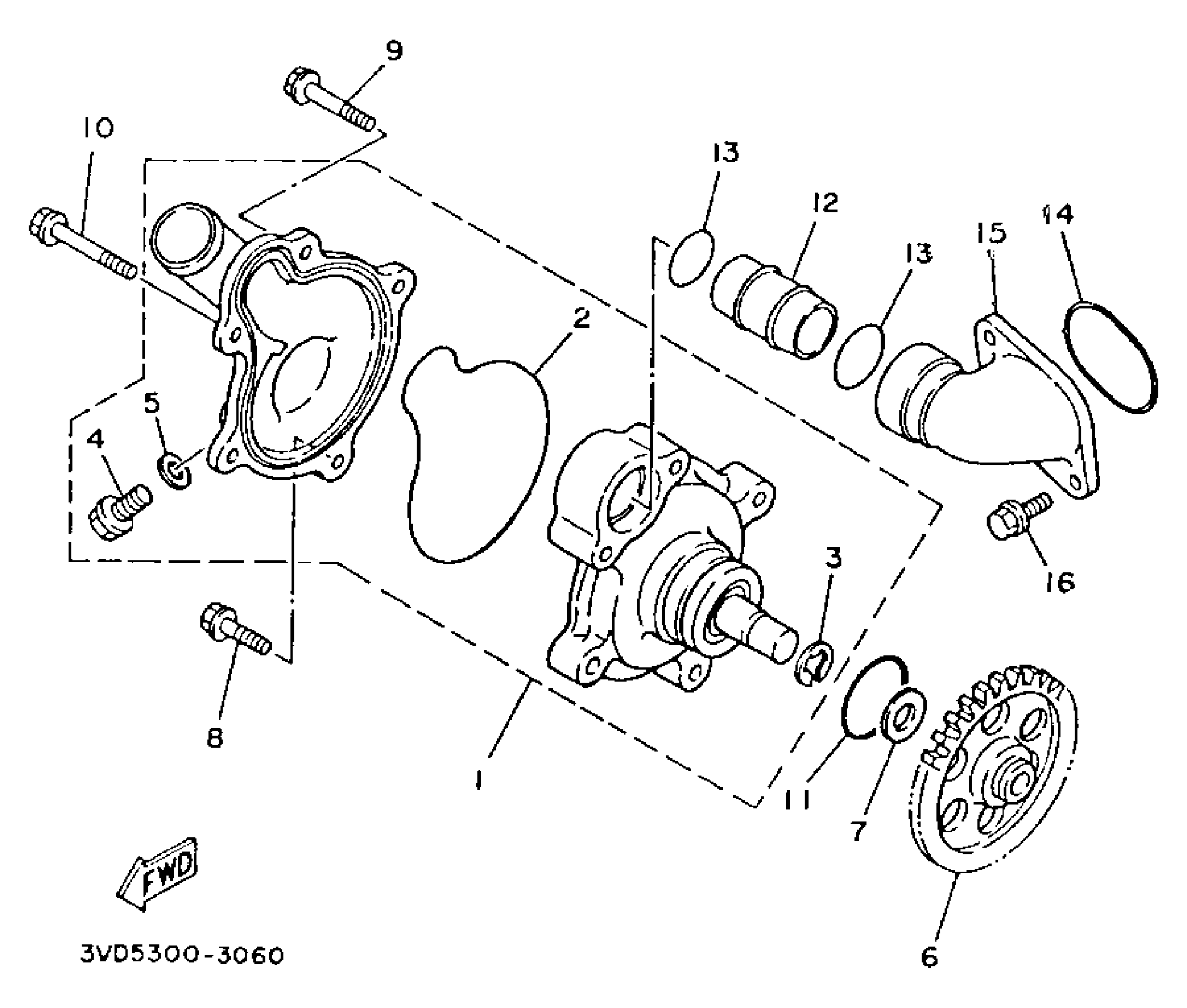

Yamaha TDM850EC (TDM850 CA) 1993 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

4UN-Y1242-00-00

Unavailable

2

O-RING

3LD-12439-00-00

Unavailable

3

CIRCLIP(10Y)

99009-12400-00

$3.59

4

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

5

GASKET 256113960000

90430-06014-00

Unavailable

6

GEAR, IMPELLER SHAFT

3VD-12459-00-00

Unavailable

7

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

8

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

9

BOLT, SMALL FLANGE

95024-06045-00

$9.49

10

BOLT, SMALL FLANGE

95027-06060-00

$2.87

11

O-RING (626)

93210-33133-00

$2.92

12

PIPE 1

3LD-12481-00-00

Unavailable

13

O-RING

93210-21190-00

$7.49

14

O-RING

93210-357A2-00

$9.49

15

JOINT 1

3VD-12469-00-00

Unavailable

16

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable
