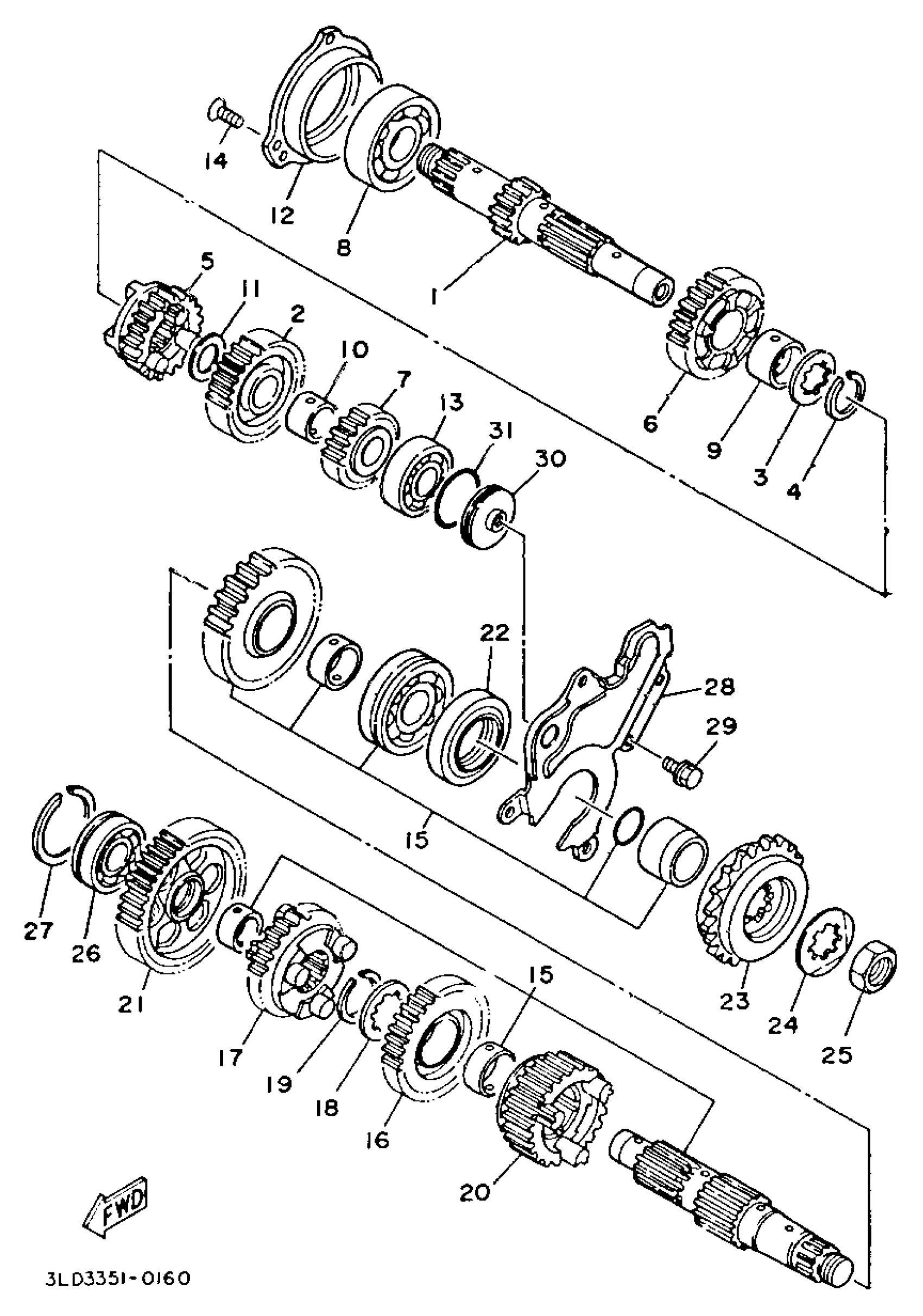

Yamaha TDM850EC (TDM850 CA) 1993 TRANSMISSION Diagram

#

Description

Price

1

AXLE, MAIN (13T)

3LD-17411-00-00

Unavailable

2

GEAR, 5TH PINION (30T)

3VD-17151-00-00

Unavailable

3

WASHER (3J3)

90209-22191-00

$7.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION (22T)

3VD-17131-00-00

Unavailable

6

GEAR,4TH PINION

3VD-17141-01-00

Unavailable

7

GEAR, 2ND PINION (21T)

3LD-17121-00-00

Unavailable

8

BEARING (3Y1)

93306-30525-00

$63.99

9

COLLAR(1FN)

90387-253M6-00

Unavailable

10

COLLAR

90387-203M7-00

Unavailable

11

WASHER, PLATE

90201-200K3-00

Unavailable

12

HOUSING, BEARING 1

3LD-15163-10-00

Unavailable

13

BEARING(3LD)

93306-20464-00

Unavailable

14

SCREW, FLATHEAD (2H7)

90149-06126-00

$9.49

15

DRIVE AXLE ASSEMBLY

3LD-17402-00-00

Unavailable

16

GEAR, 3RD WHEEL (29T)

3VD-17231-00-00

Unavailable

17

GEAR, 4TH WHEEL

3VD-17241-01-00

Unavailable

18

WASHER (4H7)

90209-25196-00

Unavailable

19

CIRCLIP (2H7)

93440-28062-00

Unavailable

20

GEAR, 5TH WHEEL (27T)

3VD-17251-00-00

Unavailable

21

GEAR, 1ST WHEEL (37T)

3LD-17211-00-00

Unavailable

22

OIL SEAL

93102-35469-00

Unavailable

23

SPROCKET, DRIVE 16T (16T)

3VD-17460-00-00

Unavailable

24

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

25

NUT 152174630000

90179-18020-00

Unavailable

26

BEARING(1FN)

93306-20455-00

Unavailable

27

CIRCLIP(1FN)

93440-45144-00

Unavailable

28

PLATE, COVER

3LD-17471-01-00

Unavailable

29

BOLT, FLANGE

95817-06012-00

Unavailable

30

COVER, AIR CLEANER

3LD-15414-00-00

Unavailable

31

O-RING (626)

93210-33133-00

Unavailable
