Description

Price

1

REAR ARM

4TX-22110-00-00

Unavailable

2

BUSH

33M-22184-00-00

Unavailable

3

BEARING (4X7)

93320-32403-00

$46.99

4

COVER, THRUST 2

4X7-22129-00-00

$22.99

5

WASHER, PLATE(48H)

90201-161J3-00

Unavailable

6

SHAFT, PIVOT

46X-22141-00-00

Unavailable

7

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

8

CASE, CHAIN

3VD-22311-00-00

Unavailable

9

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

10

SEAL, GUARD

3VD-22151-00-00

Unavailable

11

COLLAR (8G8)

90387-06681-00

$9.49

12

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

$9.49

13

HOLDER, BRKE HOSE 1

3VD-25875-01-00

Unavailable

14

COLLAR

90387-06107-00

$8.49

15

BOLT, HEXAGON

97017-06025-00

$4.24

16

WASHER(6TA)

92907-06600-00

Unavailable

17

COVER, REAR FENDERREAR TIRE

3VD-W2165-00-00

Unavailable

18

. STAY 1

3VD-2164F-00-00

Unavailable

19

RIVET, BLIND (8V0)

90267-40110-00

Unavailable

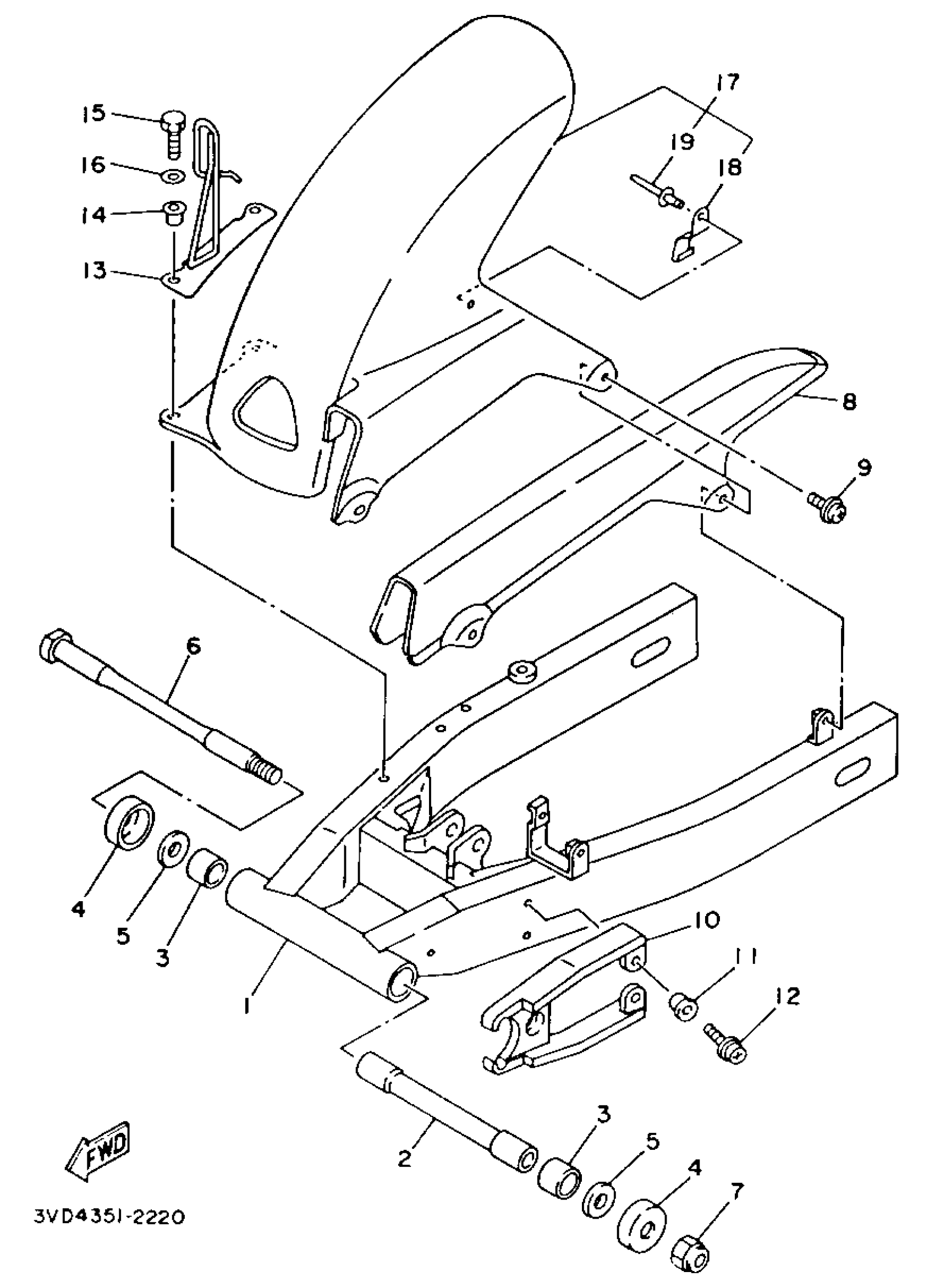

Yamaha TDM850EC (TDM850 CA) 1993 SWING ARM Diagram

REAR ARM

BUSH

BEARING (4X7)

COVER, THRUST 2

WASHER, PLATE(48H)

SHAFT, PIVOT

NUT, SELF-LOCKING (1J7)

CASE, CHAIN

SCREW, W/WASHER (4L0)

SEAL, GUARD

COLLAR (8G8)

SCREW, PANHEAD W/WASHER (22F)

HOLDER, BRKE HOSE 1

COLLAR

BOLT, HEXAGON

WASHER(6TA)

COVER, REAR FENDERREAR TIRE

. STAY 1

RIVET, BLIND (8V0)
