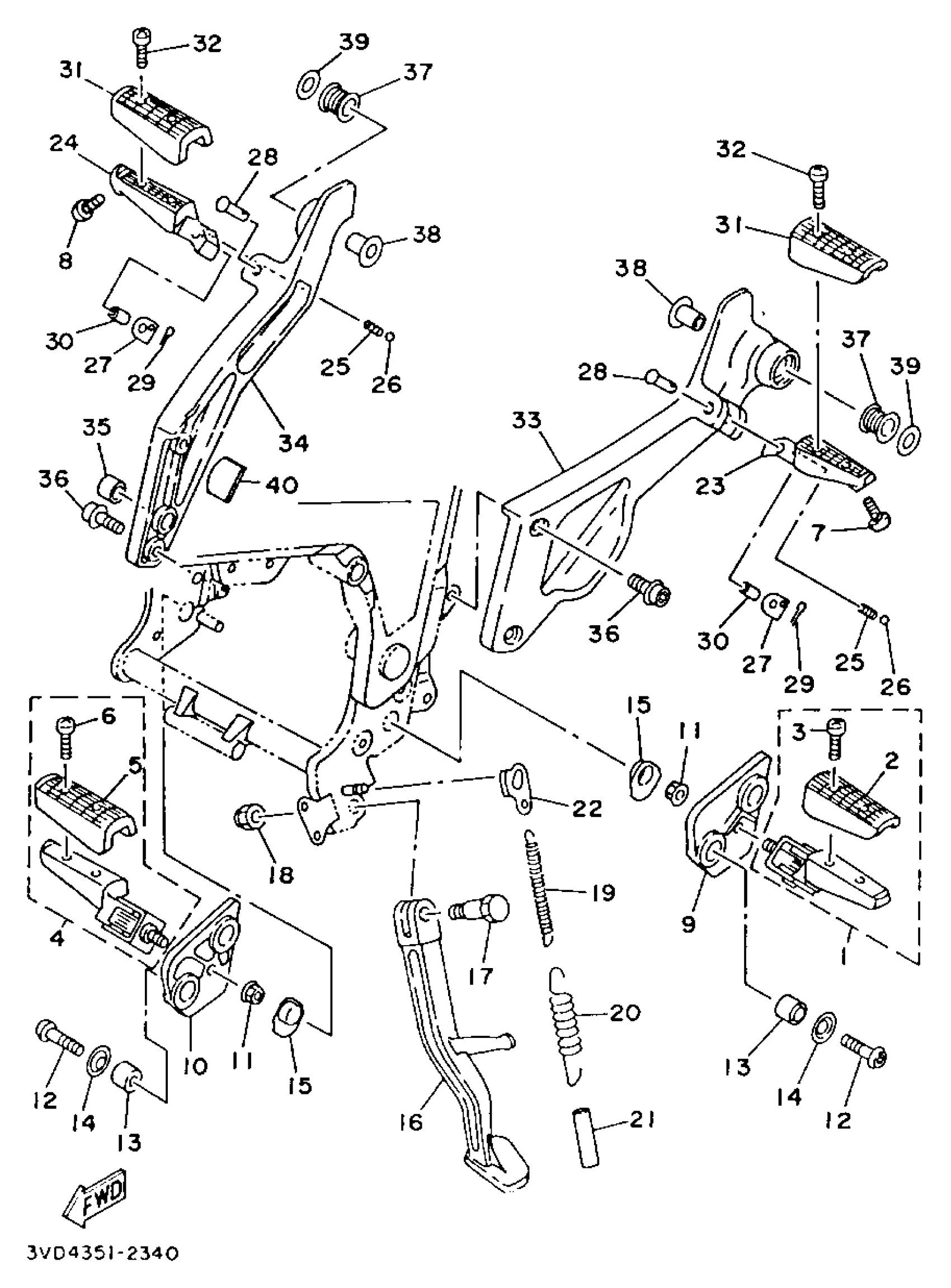

Yamaha TDM850EC (TDM850 CA) 1993 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

1UA-27410-00-00

Unavailable

2

COVER, FOOTREST

2GH-27413-00-00

$45.99

3

SCREW, PAN HEAD

98507-05014-00

$8.49

4

FRONT FOOTREST ASSY (RIGHT)

1UA-27420-00-00

Unavailable

5

COVER, FOOTREST

2GH-27413-00-00

$45.99

6

SCREW, PAN HEAD

98507-05014-00

$8.49

7

BOLT

90109-08177-00

$10.49

8

BOLT

90109-08177-00

$10.49

9

BRACKET 2

3VD-27442-11-00

Unavailable

10

BRACKET 3

3VD-27443-11-00

Unavailable

11

NUT(4KG)

90179-10658-00

$9.49

12

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

$9.49

13

DAMPER, FOOTREST 2

1NL-27424-00-00

$35.99

14

WASHER(1UF)

90209-08295-00

$8.49

15

DAMPER, FOOTREST

3VD-27414-00-00

Unavailable

16

STAND, SIDE

3VD-27311-01-00

Unavailable

17

BOLT(2GH)

90109-104E6-00

Unavailable

18

NUT, U

90185-10037-00

Unavailable

19

SPRING, TENSION (4K0)

90506-18224-00

Unavailable

20

SPRING, TENSION (4K0)

90506-26225-00

Unavailable

21

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

22

LINK, SIDE STAND

3VD-27315-00-00

Unavailable

23

FOOTREST, REAR 1

4BR-27431-01-00

Unavailable

24

FOOTREST, REAR 2

4BR-27441-00-00

Unavailable

25

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

26

BALL

93501-04011-00

Unavailable

27

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

28

PIN, CLEVIS(1HX)

91701-06040-00

Unavailable

29

PIN, COTTER

91490-20025-00

Unavailable

30

COLLAR (24R)

90387-064H8-00

Unavailable

31

COVER, FOOTREST

2GH-27413-00-00

$45.99

32

SCREW, PAN HEAD

98507-05014-00

$8.49

33

BRACKET, FOOTREST 1

3VD-27412-10-00

Unavailable

34

BRACKET, FOOTREST 2

3VD-27422-10-00

Unavailable

35

BUSH, SOLID(3VD)

90380-20213-00

Unavailable

36

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

Unavailable

37

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

38

COLLAR

90387-10048-00

Unavailable

39

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

40

DAMPER

3VD-2139X-00-00

Unavailable
