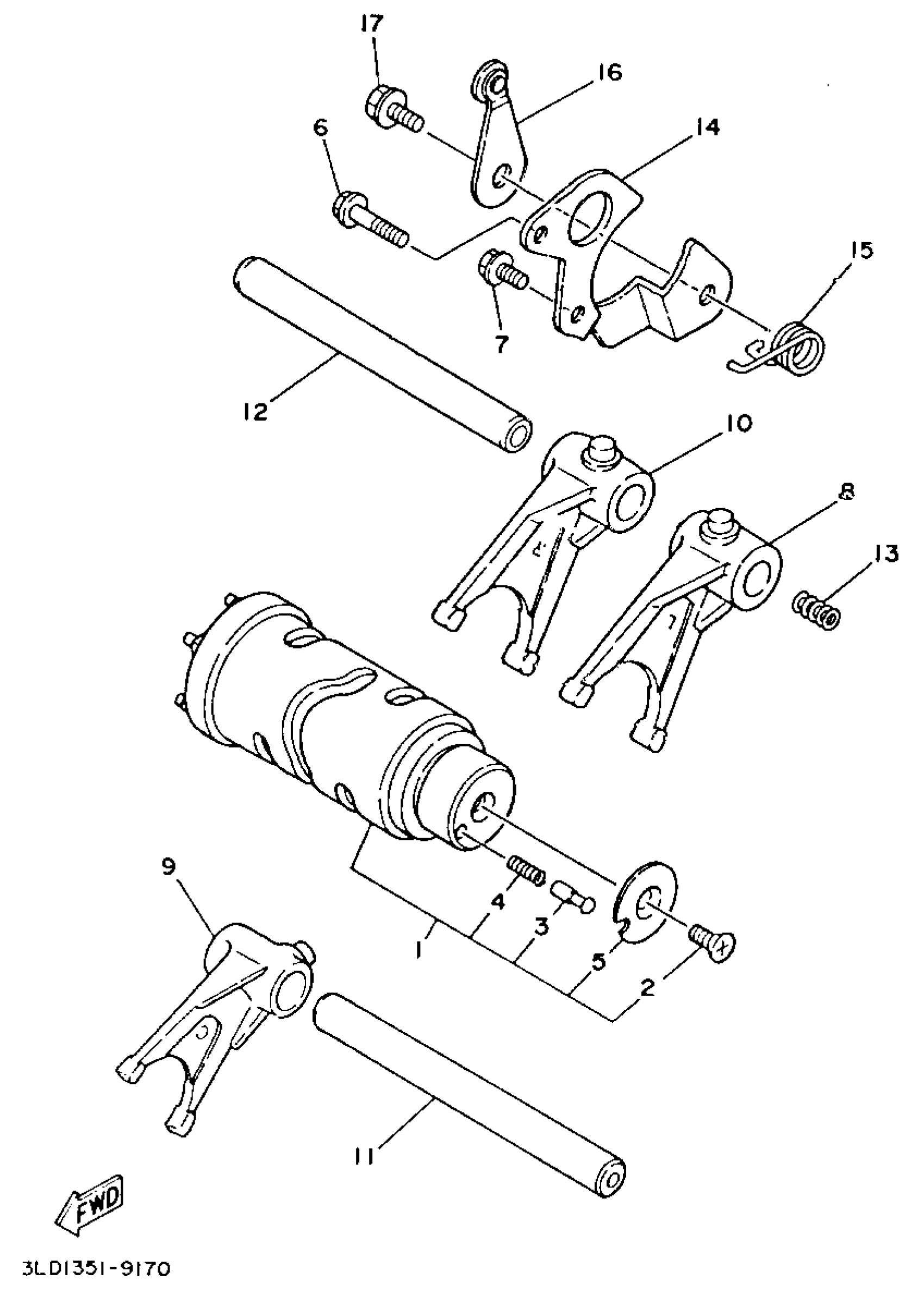

Yamaha TDM850EC (TDM850 CA) 1993 SHIFT CAM FORK Diagram

#

Description

Price

1

SHIFT CAM ASY

4TX-18540-40-00

Unavailable

2

SCREW, FLAT

98707-05012-00

$1.71

3

POINT, NEUTRAL

4UN-18542-00-00

$8.99

4

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

5

PLATE, SIDE 2

278-18566-00-00

Unavailable

6

BOLT, FLANGE

95817-06025-00

Unavailable

7

BOLT, WASHER BASED (4H7)

90105-06154-00

$4.72

8

FORK, SHIFT 1

3VD-18511-00-00

Unavailable

9

FORK, SHIFT 2

3VD-18512-00-00

Unavailable

10

FRK,SHFT 3

3VD-18513-00-00

Unavailable

11

BAR, SHIF FRK GDE 1

3VD-18531-00-00

Unavailable

12

BAR, SHIF FRK GDE 2

3VD-18535-00-00

Unavailable

13

SPRING, COMPRESSION

90501-071F1-00

Unavailable

14

STOPPER, SHIFT BAR

3LD-18536-00-00

Unavailable

15

SPRING, TORSION

90508-262A2-00

Unavailable

16

STOPPER LEVER ASSY

36Y-18140-00-00

Unavailable

17

BOLT

90109-06036-00

Unavailable
