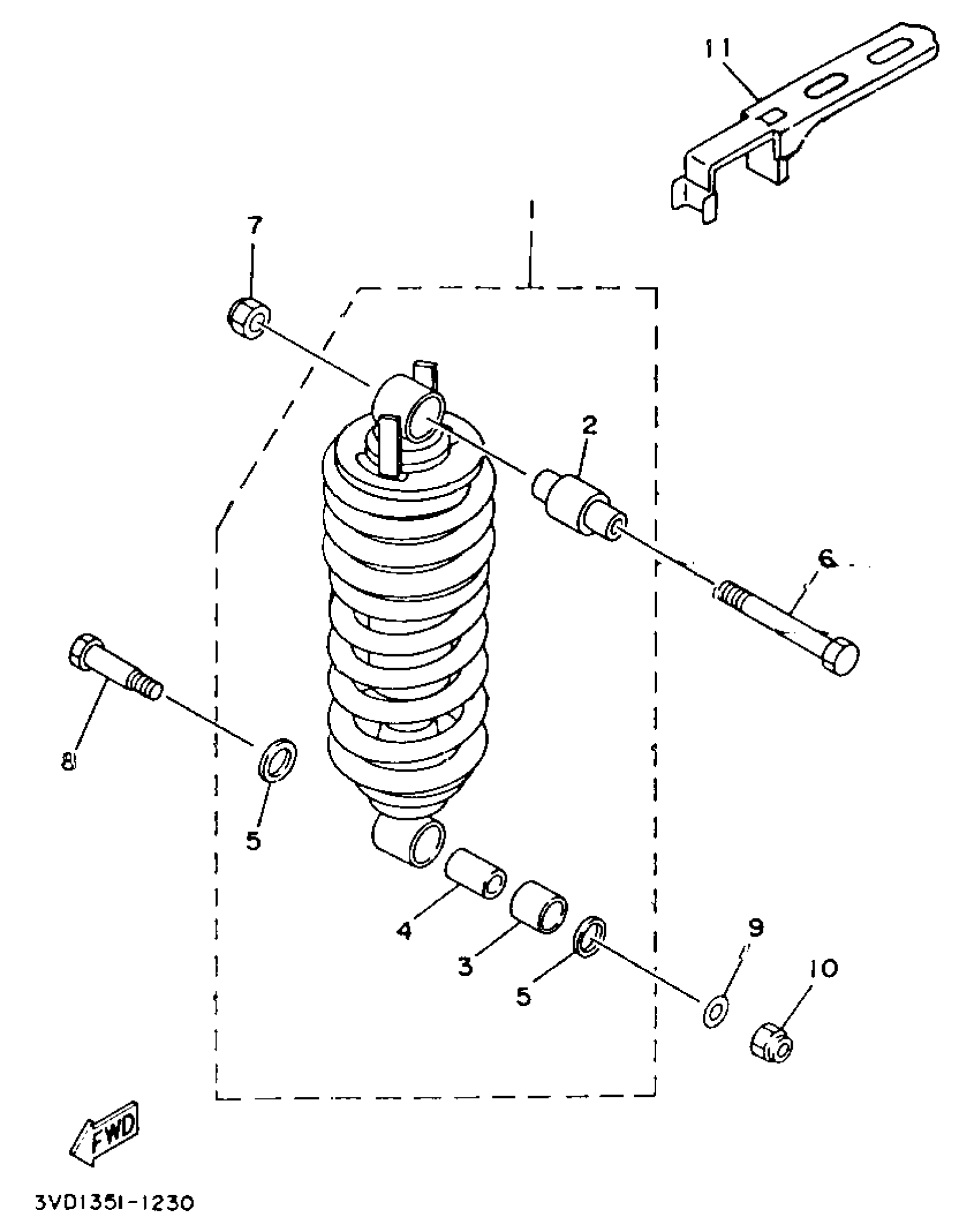

Yamaha TDM850EC (TDM850 CA) 1993 REAR SHOCKS Diagram

SHOCK ABSORBER ASSY, REAR

4TX-22210-00-00

Unavailable

BUSH, REAR SHOCK ABSORBER

5JW-22216-00-00

$40.99

BUSH, BIMETAL FORMED(39K)

90384-18190-00

Unavailable

. COLLAR (3VD)

90387-127X0-00

Unavailable

OIL SEAL (2J5)

93109-18020-00

$13.49

BOLT(3VD)

90109-125F1-00

Unavailable

NUT, U (4PM)

95617-12100-00

$4.16

BOLT(1WG)

90101-10659-00

Unavailable

WASHER, PLATE (25H)

90201-124G9-00

$7.49

NUT, U

95614-10100-00

$7.49

KNOB, CONTROL

3VD-22464-00-00

Unavailable
