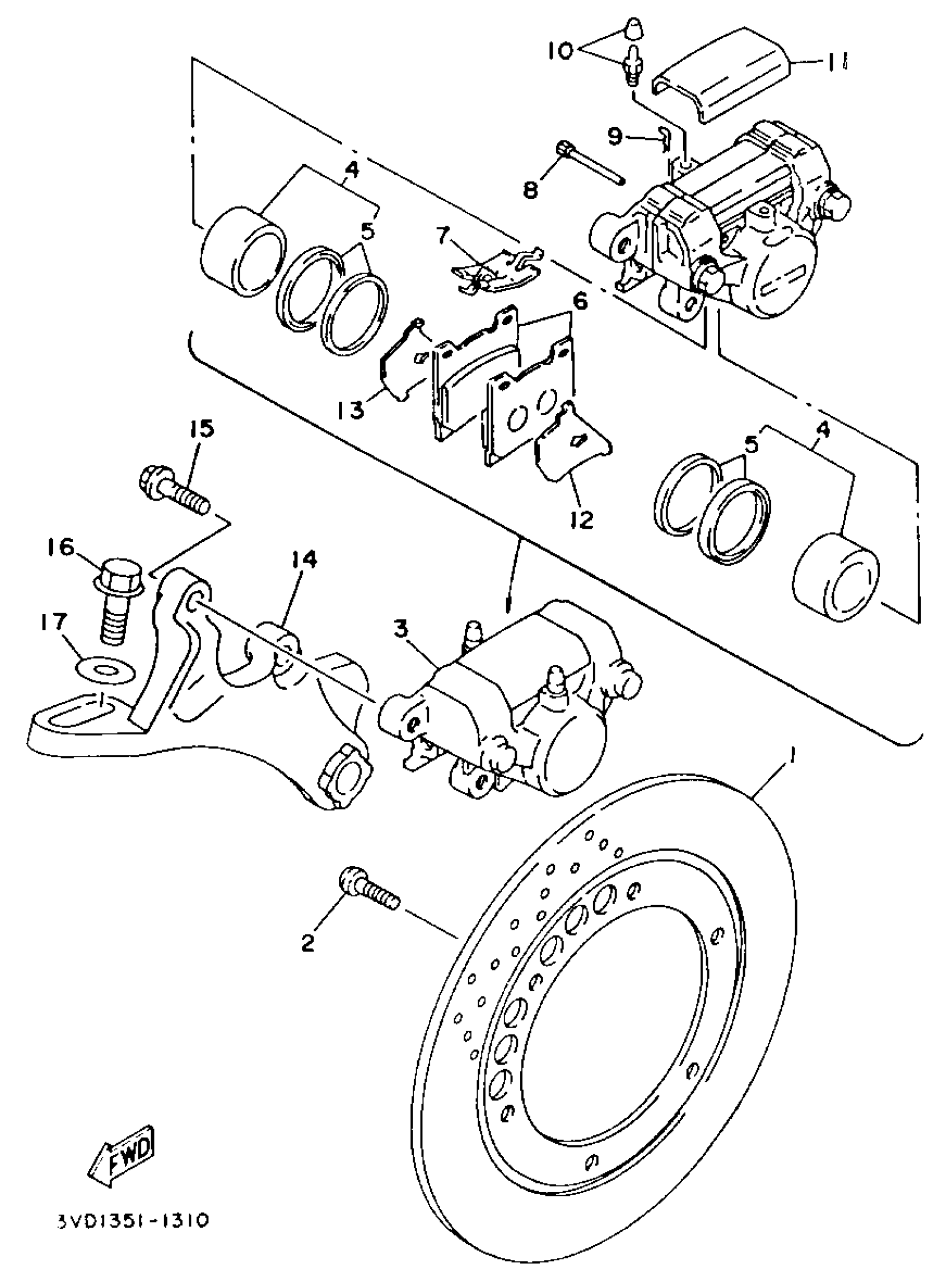

Yamaha TDM850EC (TDM850 CA) 1993 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

4HM-2582W-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

3

CALIPER ASSY REAR2

3HE-2580W-10-00

Unavailable

4

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

5

PISTON SEAL KIT

31A-W0047-00-00

$57.99

6

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

7

SUPPORT, PAD

1WG-25919-00-00

$10.99

8

PIN, PAD

3HE-25924-00-00

Unavailable

9

CLIP, PAD PIN

3GM-25925-00-00

$11.99

10

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

11

COVER, DUST

51J-25836-01-00

Unavailable

12

SHIM, CALIPER

1FK-25827-01-00

$16.49

13

SHIM, CALIPER

1FK-25828-01-00

$15.49

14

BRACKET, CALIPER

3VD-25819-00-00

Unavailable

15

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

16

BOLT, FLANGE

95817-10030-00

Unavailable

17

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable
