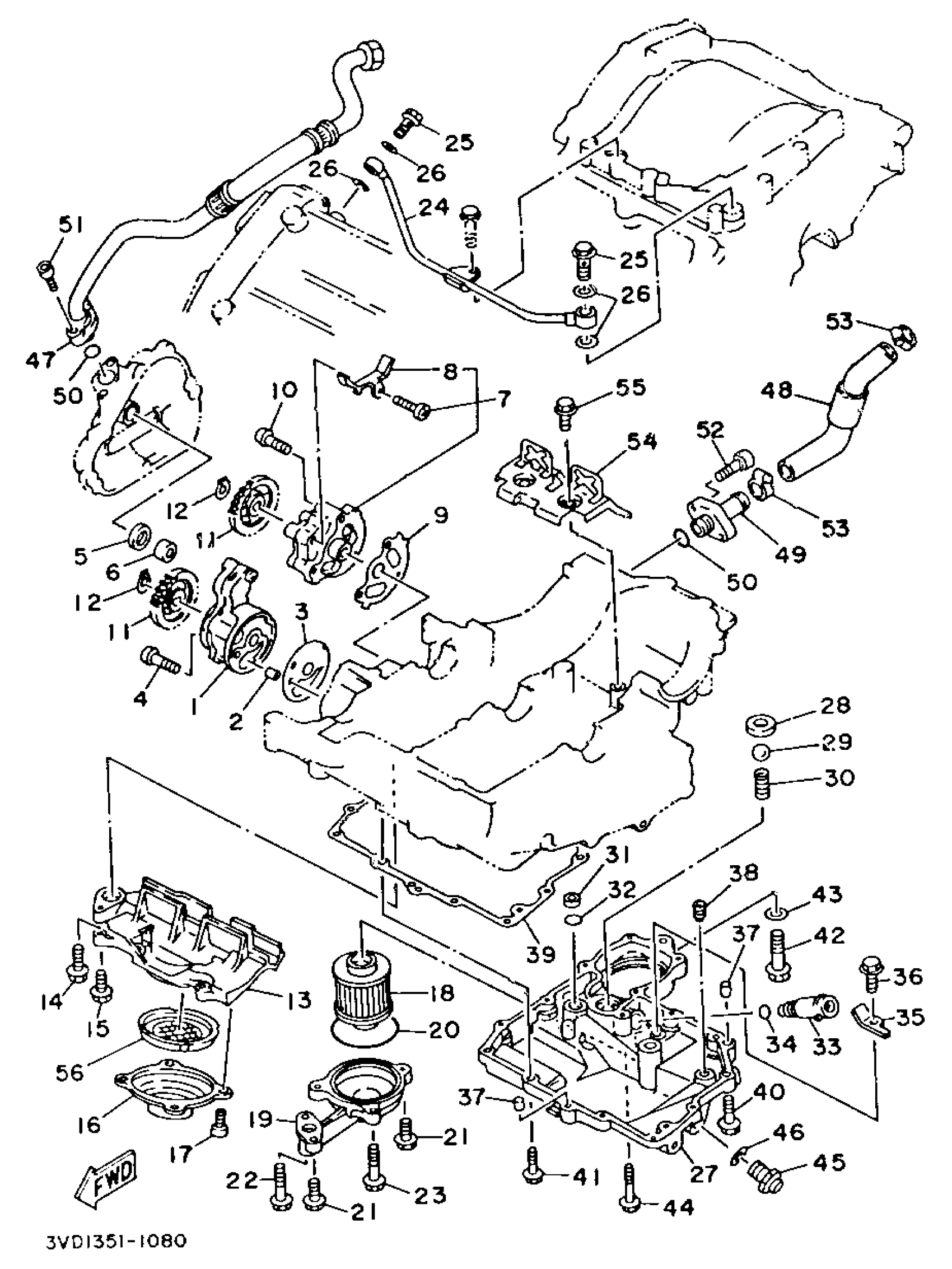

Yamaha TDM850EC (TDM850 CA) 1993 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

3LD-13300-00-00

Unavailable

2

PIN, DOWEL(N04)

91808-12024-00

$4.24

3

GASKET, PUMP COVER

5PS-13329-00-00

Unavailable

4

SCREW PAN HEAD

98580-06545-00

$5.60

5

GASKET (1L9)

90430-14131-00

$8.49

6

COLLAR(3LD)

90387-120W5-00

Unavailable

7

OIL PUMP ASSEMBLY., 2

3LD-13303-00-00

Unavailable

8

. PLATE

3LD-13371-00-00

Unavailable

9

GASKET, PUMP COVER

3LD-13339-00-00

$2.39

10

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

11

GEAR, PUMP DRIVEN

3VD-13325-00-00

Unavailable

12

CIRCLIP(24H)

99009-11400-00

$8.49

13

HOUSING, STRAINER

3VD-13412-00-00

Unavailable

14

BOLT, SMALL FLANGE

95027-06025-00

$4.16

15

. BOLT, FLANGE

95027-06020-00

Unavailable

16

STRAINER, OIL

3VD-13411-00-00

Unavailable

17

SCREW PAN HEAD

98580-06010-00

Unavailable

18

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

Unavailable

19

COVER, OIL ELEMENT

3LD-13447-00-00

Unavailable

20

O-RING (583 OIL CLEANER)

93210-64297-00

Unavailable

21

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

22

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

23

BOLT, FLANGE(4KM)

95024-06040-00

Unavailable

24

PIPE, DELIVERY 1

5PS-13161-00-00

Unavailable

25

BOLT, UNION(1HX)

90401-10106-00

Unavailable

26

GASKET (5R6)

90430-10171-00

Unavailable

27

COVER,STRAINER

3VD-13417-10-00

Unavailable

28

SEAT, CHECK BALL

3LD-13113-00-00

Unavailable

29

BALL (5/8INCH) (527 CKD)

93505-08030-00

Unavailable

30

SPRING, COMPRESSION(3LD)

90501-104F9-00

Unavailable

31

COLLAR(3LD)

90387-106W6-00

Unavailable

32

O-RING(3LD)

93210-12790-00

Unavailable

33

RELIEF VALVE ASSY

11H-13490-00-00

Unavailable

34

O-RING (611)

93210-10096-00

Unavailable

35

STAY

3LD-13151-00-00

Unavailable

36

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

37

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

38

NOZZLE

4KM-13572-01-00

Unavailable

39

GASKET, STRAINER COVER

3VD-13414-00-00

Unavailable

40

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

41

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

42

BOLT, SMALL FLANGE

95024-10040-00

Unavailable

43

GASKET (5R6)

90430-10171-00

Unavailable

44

BOLT, FLANGE(4BH)

95024-06035-00

Unavailable

45

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

46

GASKET

214-11198-01-00

Unavailable

47

HOSE, OIL 1

3VD-13464-10-00

Unavailable

48

HOSE, OIL 2

3VD-13465-00-00

Unavailable

49

PIPE, OIL 1

3VD-13416-00-00

Unavailable

50

O-RING(36Y)

93210-13657-00

Unavailable

51

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

52

BOLT,SOCKET

91317-06020-00

Unavailable

53

CLAMP, HOSE

90460-27270-00

Unavailable

54

PLATE, BAFFLE

3VD-13317-00-00

Unavailable

55

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

56

SEAL, OIL STRAINER

3VD-13415-00-00

Unavailable
