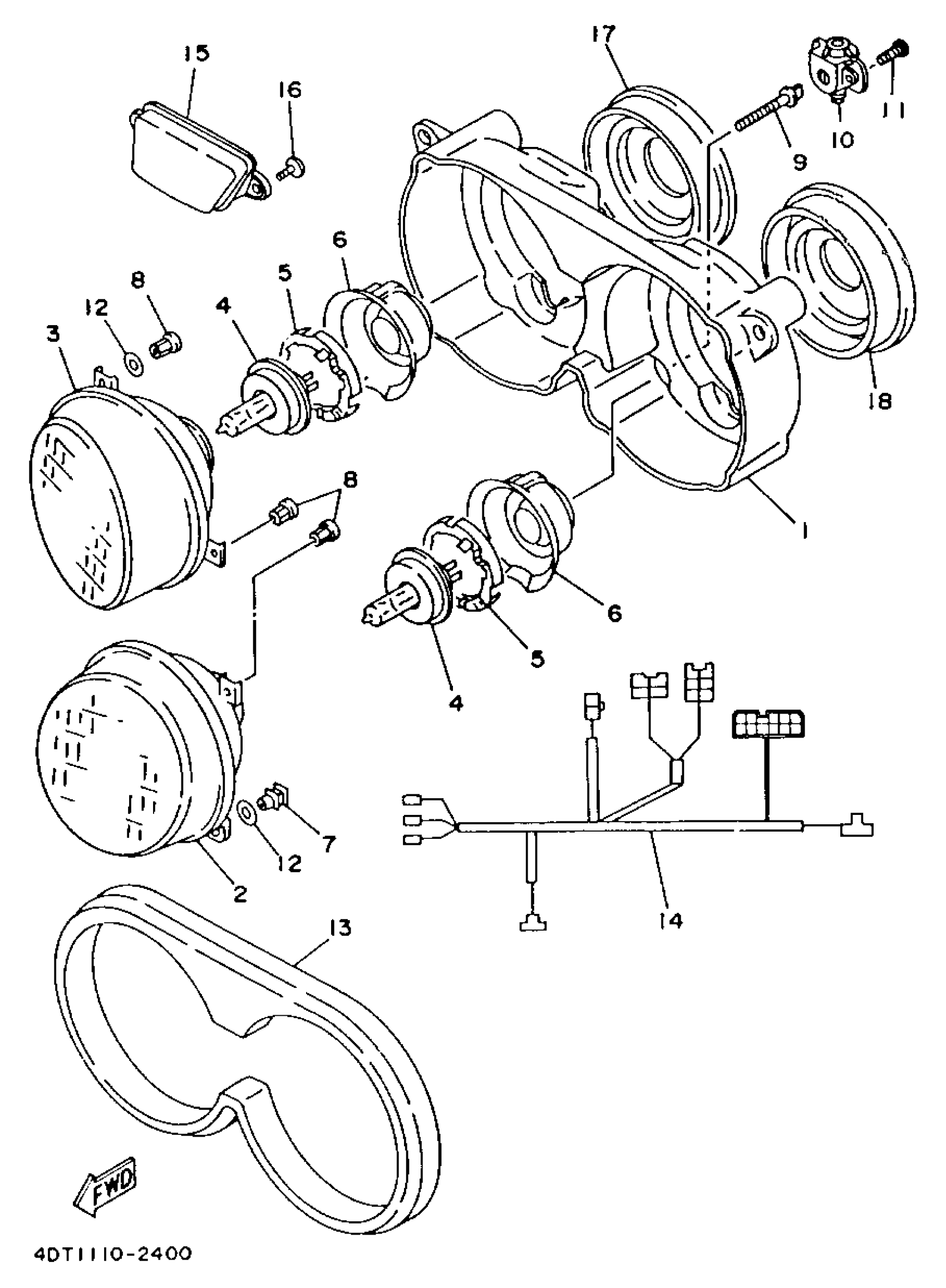

Yamaha TDM850EC (TDM850 CA) 1993 HEADLIGHT Diagram

#

Description
Price

1

BODY ASSEMBLY

3VD-84330-00-00

Unavailable

2

LENS ASSEMBLY

3VD-84320-50-00

Unavailable

3

LENS ASSEMBLY

3VD-8432A-50-00

Unavailable

4

BULB, HEADLIGHT

1ML-84314-00-XX

Unavailable

5

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

6

COVER, SOCKET

2F9-84397-01-00

$30.99

7

HOLDER

3AJ-8431U-00-00

$9.99

8

. NUT, ADJUSTING

51L-84334-00-00

Unavailable

9

SCREW, RIM ADJUSTING

2AX-84331-00-00

Unavailable

10

GEAR UNIT ASY

3LD-8430M-00-00

Unavailable

11

SCREW, TAPPING(4HP)

97707-40616-00

$1.70

12

WASHER, PLAIN

3GM-84344-00-00

Unavailable

13

DAMPER, HEADLIGHT 1

3HE-84366-00-00

Unavailable

14

CORD, HEADLIGHT

3VD-84359-10-00

Unavailable

15

CAP

4DT-84378-00-P1

Unavailable

16

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

17

COVER, SOCKET

2LA-84397-00-00

Unavailable

18

COVER, SOCKET

2LA-84397-10-00

Unavailable
