Description

Price

1

HANDLEBAR

3VD-26111-12-00

Unavailable

2

GRIP (LEFT)

1KG-26241-00-00

Unavailable

3

GRIP ASSY

3FH-26240-00-00

Unavailable

4

END, GRIP

51J-26246-01-00

$77.99

5

COLLAR (2H7)

90387-22660-00

$9.49

6

THROTTLE CABLE ASSEMBLY

3VD-26302-00-00

Unavailable

7

CAP, GRIP UPPER

3XW-26281-01-00

$31.99

8

CAP, GRIP UNDER

3XW-26282-01-00

$31.99

9

SCREW, PAN

98507-05035-00

$8.49

10

CABLE, STARTER 1

3VD-26331-01-00

$37.99

11

NUT

1VJ-26333-00-00

$7.99

12

CABLE, CLUTCH

3VD-26335-01-00

Unavailable

13

STAY

3VD-26292-00-00

Unavailable

14

BOLT, FLANGE

95817-06012-00

$1.43

15

REAR VIEW MIRROR ASSY(LEFT)

4TX-26280-00-00

Unavailable

16

REAR VIEW MIRROR ASSY (RIGHT)

3VD-26290-01-00

Unavailable

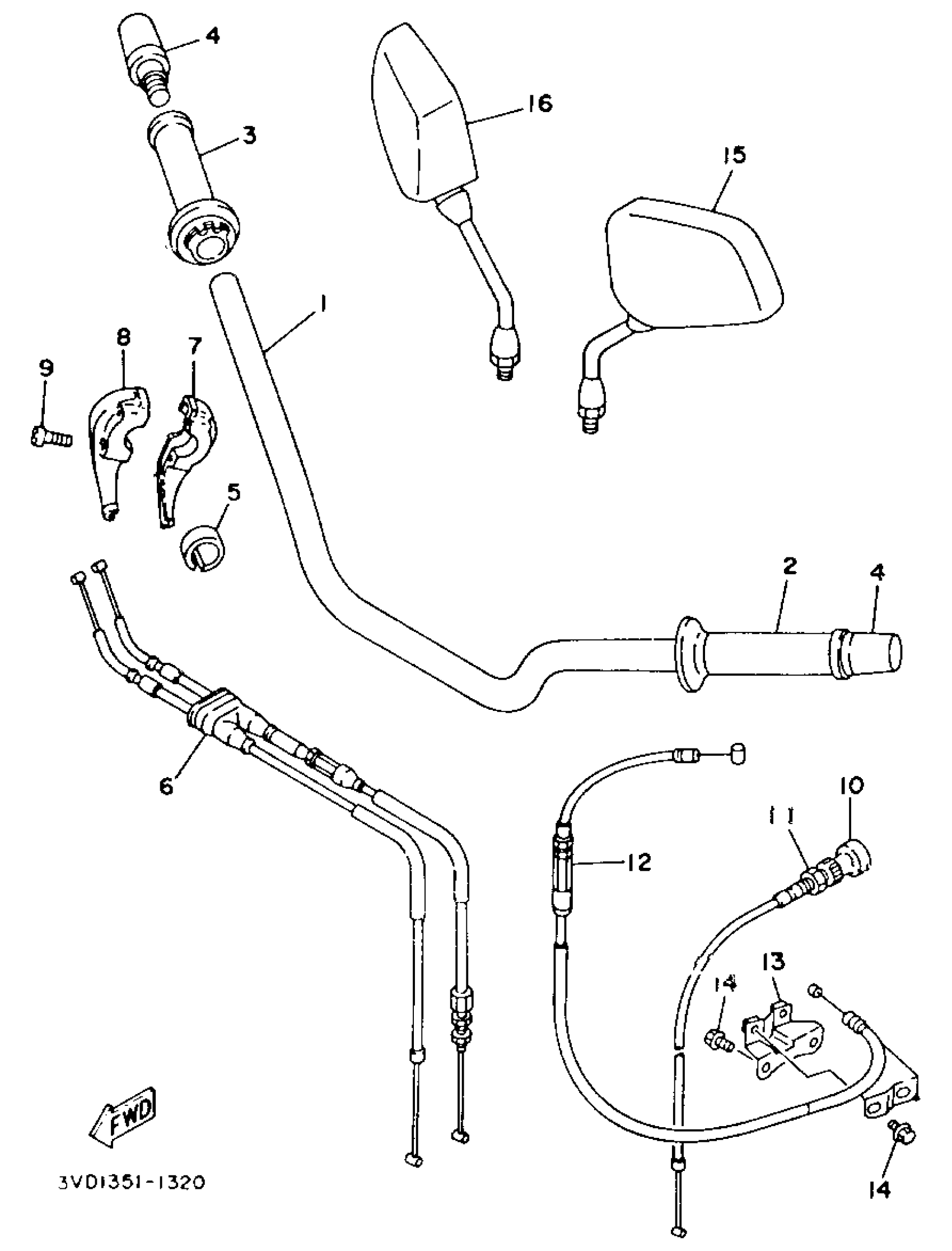

Yamaha TDM850EC (TDM850 CA) 1993 HANDLEBAR CABLE Diagram

HANDLEBAR

GRIP (LEFT)

GRIP ASSY

END, GRIP

COLLAR (2H7)

THROTTLE CABLE ASSEMBLY

CAP, GRIP UPPER

CAP, GRIP UNDER

SCREW, PAN

CABLE, STARTER 1

NUT

CABLE, CLUTCH

STAY

BOLT, FLANGE

REAR VIEW MIRROR ASSY(LEFT)

REAR VIEW MIRROR ASSY (RIGHT)
