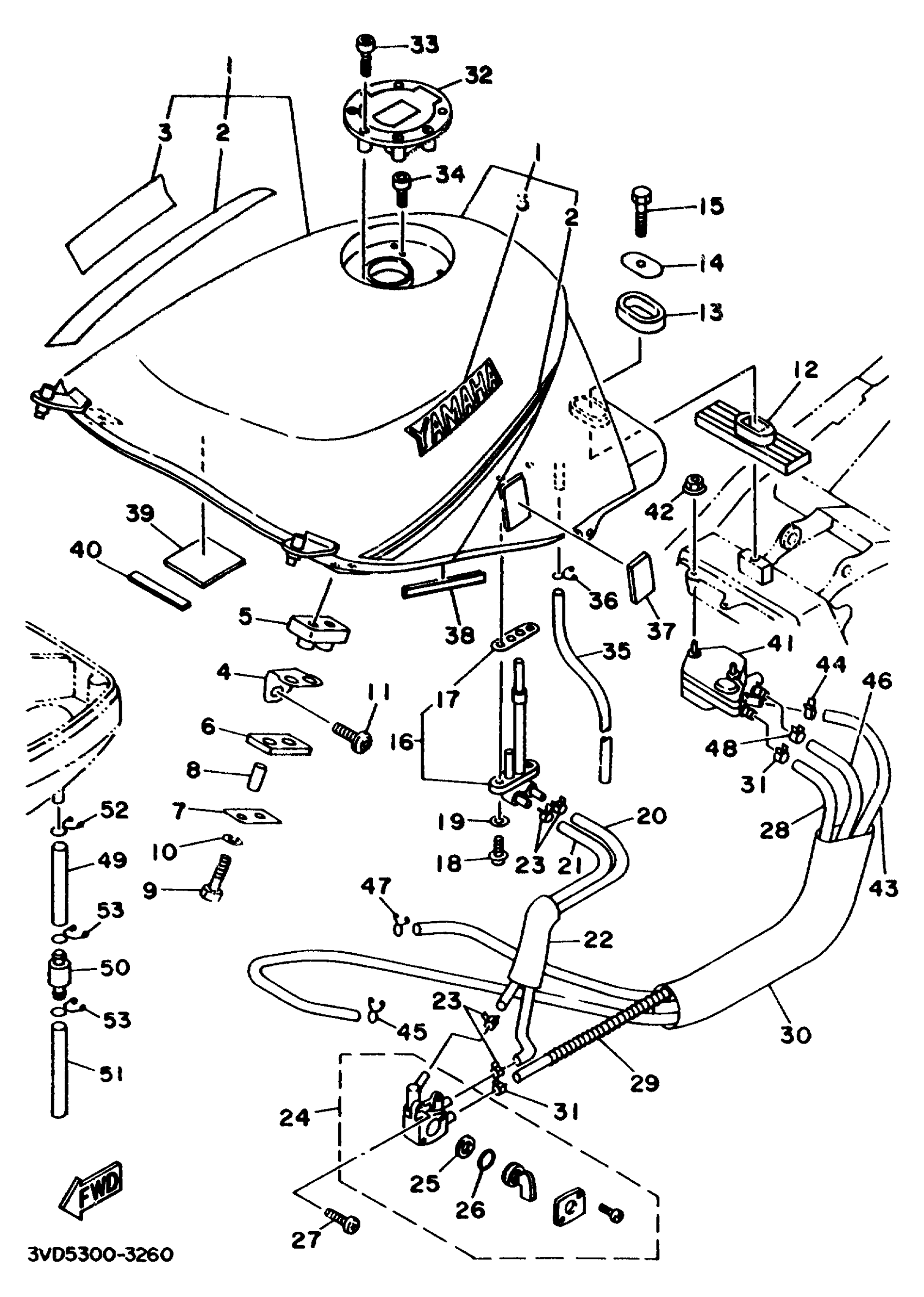

Yamaha TDM850EC (TDM850 CA) 1993 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

3VD-24110-20-01

Unavailable

2

. GRAPHIC SET

3VD-24240-40-00

Unavailable

3

EMBLEM, YAMAHA

99246-00120-00

$9.49

4

BRACKET, FUEL TNK 1

3VD-24191-00-00

Unavailable

5

DAMPER, LOCATING 1

3VD-24181-00-00

Unavailable

6

DAMPER, LOCATING 3

47X-24183-00-00

Unavailable

7

WASHER, SPECIAL

47X-24186-00-00

$3.33

8

COLLAR(1AE)

90387-060N3-00

$10.49

9

BOLT(3RV)

97014-06035-00

$2.75

10

WASHER, SPRING

92995-06100-00

Unavailable

11

BOLT

90109-086A0-00

Unavailable

12

DAMPER, LOCATING 4

2GH-24184-00-00

Unavailable

13

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

14

WASHER, SPECIAL

12R-24186-00-00

$9.99

15

BOLT, HEXAGON

97017-08030-00

$9.49

16

FILTER ASSY

3LN-24560-01-00

Unavailable

17

O-RING

4X8-24512-00-00

Unavailable

18

SCREW 256241430000

90149-06011-00

Unavailable

19

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

20

PIPE, FUEL 1

3VD-24311-00-00

Unavailable

21

PIPE 3

3VD-24313-00-00

Unavailable

22

PROTECTOR, PIPE

1JK-24327-00-00

Unavailable

23

CLIP(3BM)

90467-10135-00

Unavailable

24

FUEL COCK ASSY

3LN-24500-00-00

Unavailable

25

VALVE PACKING

3AC-24523-00-00

Unavailable

26

SEAL, COCK

3AJ-24534-01-00

Unavailable

27

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

28

HOSE (L400)

90445-116K9-00

Unavailable

29

SPRING, COMPRESSION(1YU)

90501-061E8-00

Unavailable

30

PROTECTOR, PIPE

3VD-24327-00-00

Unavailable

31

CLIP(3BM)

90467-10135-00

Unavailable

32

CAP ASSY

4FM-24602-20-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

34

BOLT, SOCKET

91314-05010-00

Unavailable

35

HOSE (L730)

90445-105K7-00

Unavailable

36

CLIP

90467-090A2-00

Unavailable

37

HOOK, SIDE COVER 2

3VD-2411H-01-00

Unavailable

38

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

39

DAMPER

51L-28371-00-00

Unavailable

40

SEAL 4

J44-78248-00-00

Unavailable

41

FUEL PUMP ASSY

4BR-13910-09-00

Unavailable

42

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

43

PIPE, IMPULSE

3VD-13929-00-00

Unavailable

44

CLIP (8L2)

90467-08017-00

Unavailable

45

CLIP (16G)

90467-08021-00

Unavailable

46

HOSE

3VD-14294-00-00

Unavailable

47

CLIP(1JH)

90467-11106-00

Unavailable

48

CLIP(3BM)

90467-10135-00

Unavailable

49

HOSE (L800)

90445-11083-00

Unavailable

50

FILTER ASSY

4X7-2149Y-00-00

Unavailable

51

HOSE (L370)

90445-112E1-00

Unavailable

52

CLIP(1JH)

90467-11106-00

Unavailable

53

CLIP

90467-100A1-00

Unavailable
