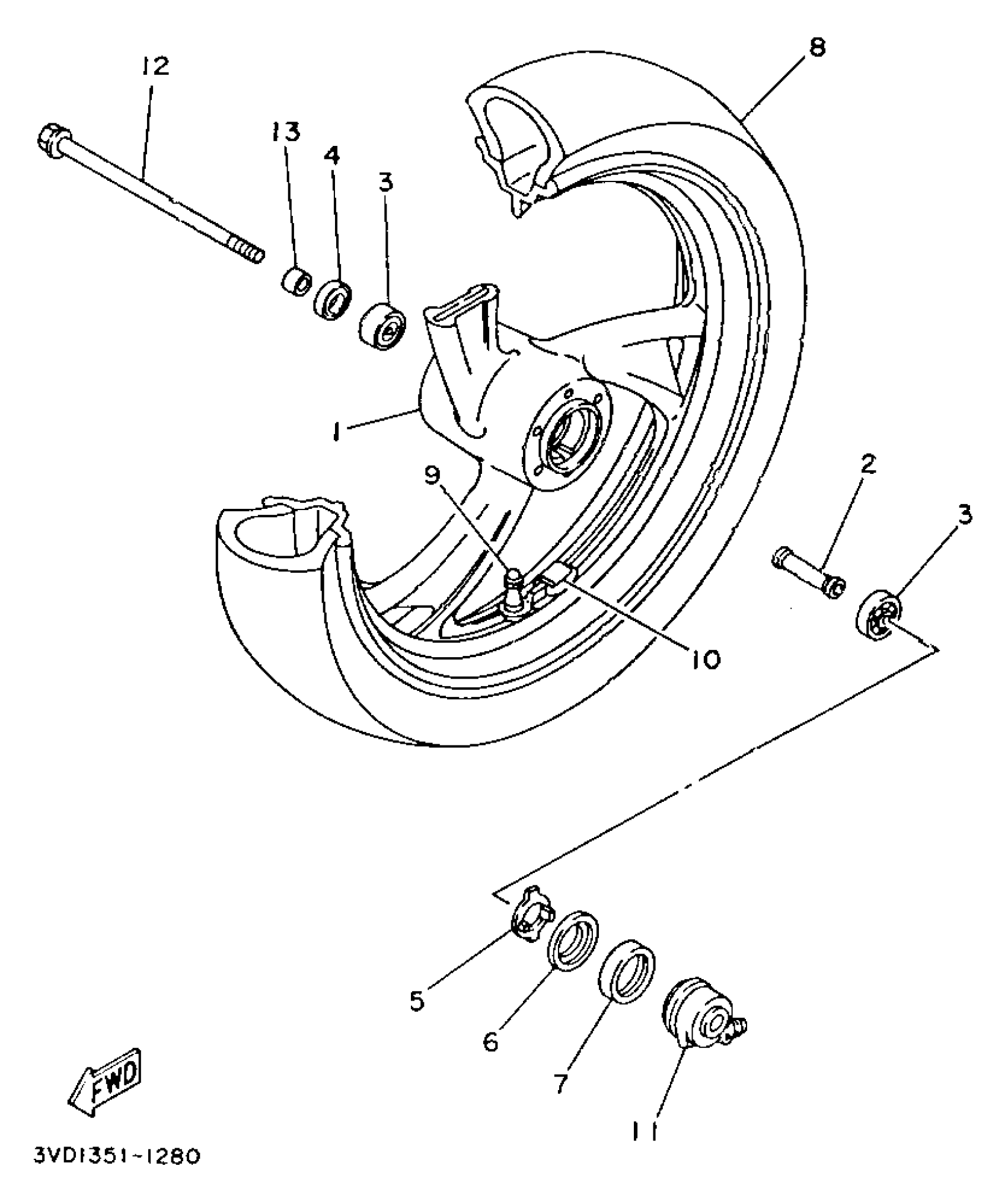

Yamaha TDM850EC (TDM850 CA) 1993 FRONT WHEEL Diagram

WHEEL, CAST FRONT

3VD-25168-00-TR

Unavailable

WHEEL,CAST FRONT

3VD-25168-00-WG

Unavailable

SPACER

90560-17233-00

Unavailable

BEARING(4HM)

93306-30317-00

$39.99

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

OIL SEAL (45X56X6)

93105-45017-00

$14.99

110/80-18 K505F DL (110/80-17 58H K505F)

94111-187X0-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$16.99

BALANCER, WHEEL

5MT-25398-00-00

$17.49

BALANCER, WHEEL

5MT-25398-10-00

$17.49

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

GEAR UNIT ASSY

4TR-25190-20-00

$115.99

AXLE, WHEEL

3GM-25181-03-00

Unavailable

COLLAR(2GV)

90387-177R1-00

Unavailable
