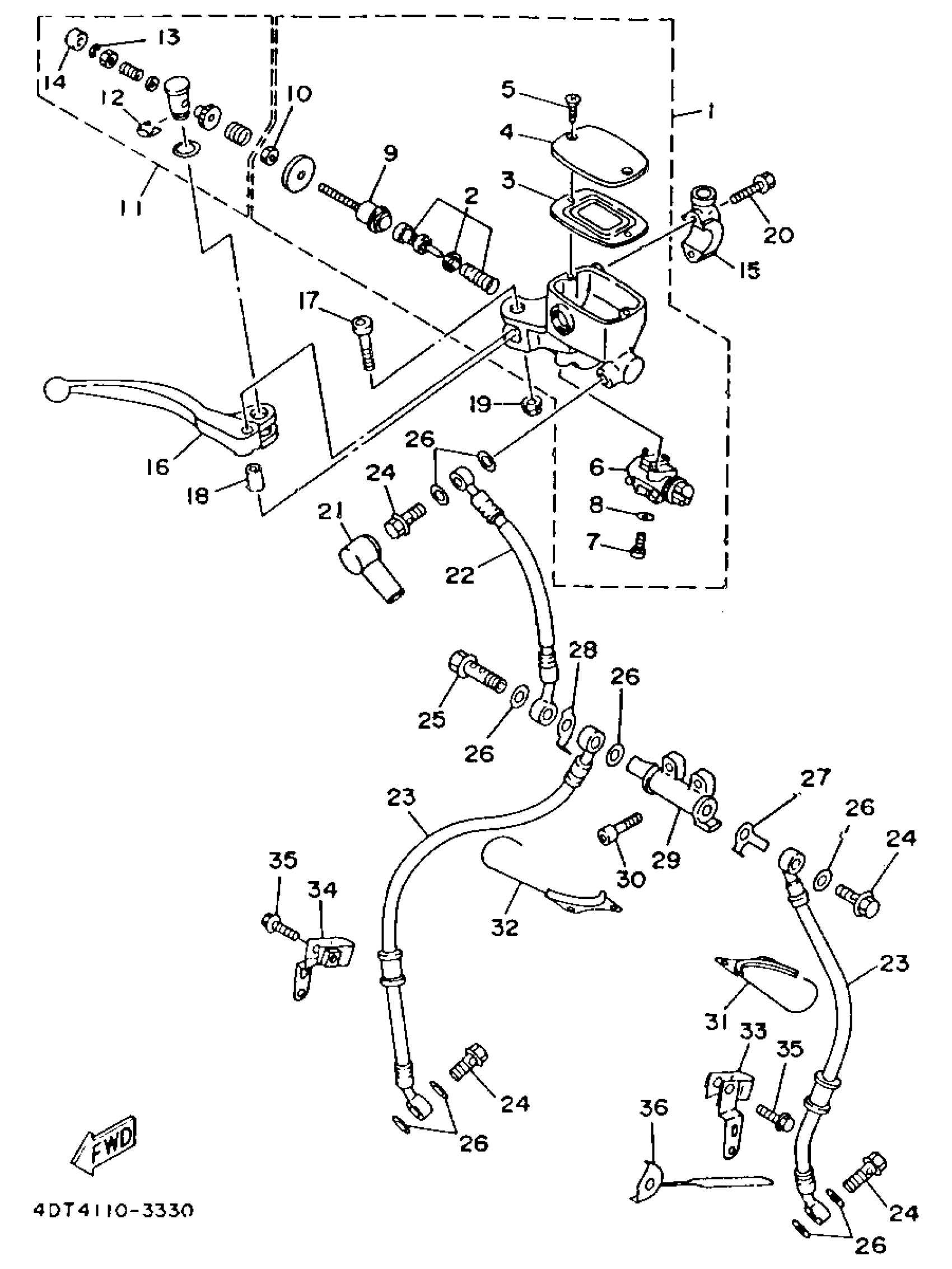

Yamaha TDM850EC (TDM850 CA) 1993 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

4TX-W2587-02-00

$246.99

2

CYLINDER KIT, MASTER

4TX-25807-04-00

Unavailable

3

DIAPHRAGM, RESERVOIR

3YX-25854-00-00

Unavailable

4

CAP, RESERVOIR

4TX-25852-01-00

Unavailable

5

SCREW, FLAT

98707-04012-00

$2.18

6

FRONT STOP SWITCH ASSY

4BH-83980-00-00

Unavailable

7

SCREW, PAN HEAD

98517-04012-00

$3.88

8

WASHER(JF2)

92907-04600-00

$1.71

9

ROD, PUSH

3YX-25880-00-00

Unavailable

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

SCREW KIT, MASTER CYLINDER

3YX-W0091-02-00

Unavailable

12

CIRCLIP(2R6)

99001-08600-00

$8.49

13

CIRCLIP(6L5)

99080-03600-00

Unavailable

14

BOOT

3YX-2583H-00-00

Unavailable

15

BRACKET, MASTER CYLINDER

3YX-25867-00-00

Unavailable

16

LEVER

3YX-83922-09-00

Unavailable

17

BOLT, LEVER

3YX-2589F-00-00

Unavailable

18

SLEEVE, CALIPER

3YX-25838-00-00

Unavailable

19

NUT, SELF-LOCKING

95617-06100-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

21

BOOT, MASTER CYLINDER

4L0-25862-01-00

Unavailable

22

BRAKE HOSE SET (3VD)

99999-02430-00

Unavailable

23

HOSE, BRAKE

99999-02431-00

Unavailable

24

BOLT, UNION(3GM)

90401-10159-00

Unavailable

25

BOLT, UNION

90401-10038-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

27

WASHER, LOCK

3VD-25834-01-00

Unavailable

28

WASHER, LOCK

3VD-25844-00-00

Unavailable

29

JOINT

42H-25885-01-00

Unavailable

30

BOLT,SOCKET

91317-06025-00

Unavailable

31

GUIDE, CABLE 1

3VD-26131-00-00

Unavailable

32

GUIDE, CABLE 2

3VD-26132-00-00

Unavailable

33

HOLDER, BRKE HOSE 2

3VD-25876-00-00

Unavailable

34

HOLDER, BRAKE HOSE

3VD-25886-00-00

Unavailable

35

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

36

HOLDER, CABLE

3VD-23317-00-00

Unavailable
