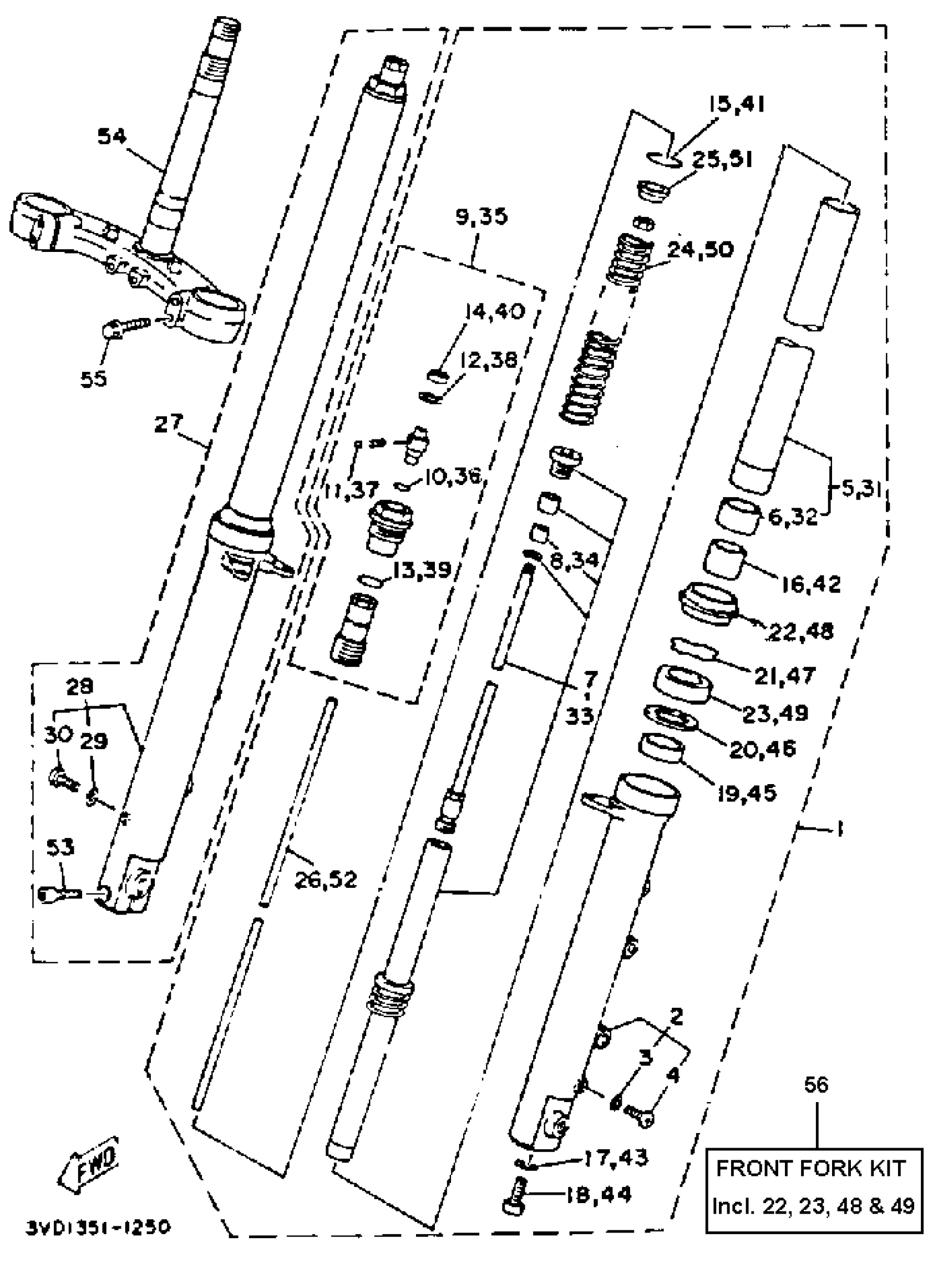

Yamaha TDM850EC (TDM850 CA) 1993 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L (L.H)

3VD-23102-01-00

Unavailable

2

. OUTER TUBE LH (LH)

3VD-23106-00-00

Unavailable

3

GASKET

5U8-23129-00-00

$7.99

4

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

5

. INNER TUBE 1

3VD-23110-00-00

Unavailable

6

METAL, SLIDE 2

3VD-23135-10-00

$31.99

7

. DAMPER ASSEMBLY

3VD-2330E-00-00

Unavailable

8

.. PISTON, FRNT FORK

3VD-2312K-00-00

Unavailable

9

. BOLT, CAP

3VD-23111-00-00

Unavailable

10

O-RING (1J7)

93210-09350-00

$7.49

11

BALL

93503-16003-00

$2.72

12

.. CIRCLIP

3VD-23183-00-00

Unavailable

13

.. O-RING

93210-18N01-00

Unavailable

14

.. CAP

3VD-2319U-00-00

Unavailable

15

O-RING(3VD)

93210-35N02-00

$3.98

16

. SPINDLE, TAPER

3VD-23173-00-00

Unavailable

17

GASKET (5R6)

90430-10171-00

Unavailable

18

BOLT,SOCKET

91314-10025-00

Unavailable

19

METAL, SLIDE 1

3VD-23125-10-00

Unavailable

20

GUIDE, COVER UPPER

3VD-23115-00-00

Unavailable

21

CLIP, OIL SEAL

3VD-23156-00-00

Unavailable

22

SEAL, DUST

3VD-23144-00-00

Unavailable

23

OIL SEAL

5VU-23145-00-00

Unavailable

23

OIL SEAL

5VU-23145-00-00

Unavailable

24

. SPRING, FRONT FORK

3VD-23141-01-00

Unavailable

25

. SEAT, SPRING UPPER

3VD-23142-00-00

Unavailable

26

. PLUNGER

3VD-2318Y-00-00

Unavailable

27

FRONT FORK ASSEMBLY R (R.H)

3VD-23103-01-00

Unavailable

28

. OUTER TUBE RH (RH)

3VD-23107-00-00

Unavailable

29

GASKET

5U8-23129-00-00

$7.99

30

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

31

. INNER TUBE 1

3VD-23110-00-00

Unavailable

32

METAL, SLIDE 2

3VD-23135-10-00

$31.99

33

. DAMPER ASSEMBLY

3VD-2330E-00-00

Unavailable

34

.. PISTON, FRNT FORK

3VD-2312K-00-00

Unavailable

35

. BOLT, CAP

3VD-23111-00-00

Unavailable

36

O-RING (1J7)

93210-09350-00

$7.49

37

BALL

93503-16003-00

$2.72

38

.. CIRCLIP

3VD-23183-00-00

Unavailable

39

.. O-RING

93210-18N01-00

Unavailable

40

.. CAP

3VD-2319U-00-00

Unavailable

41

O-RING(3VD)

93210-35N02-00

$3.98

42

. SPINDLE, TAPER

3VD-23173-00-00

Unavailable

43

GASKET (5R6)

90430-10171-00

Unavailable

44

BOLT,SOCKET

91314-10025-00

Unavailable

45

METAL, SLIDE 1

3VD-23125-10-00

Unavailable

46

GUIDE, COVER UPPER

3VD-23115-00-00

Unavailable

47

CLIP, OIL SEAL

3VD-23156-00-00

Unavailable

48

SEAL, DUST

3VD-23144-00-00

Unavailable

49

OIL SEAL

5VU-23145-00-00

Unavailable

49

OIL SEAL

5VU-23145-00-00

Unavailable

50

. SPRING, FRONT FORK

3VD-23141-01-00

Unavailable

51

. SEAT, SPRING UPPER

3VD-23142-00-00

Unavailable

52

. PLUNGER

3VD-2318Y-00-00

Unavailable

53

BOLT,SOCKET

91314-08040-00

Unavailable

54

UNDER BRACKET

3VD-23340-00-00

Unavailable

55

BOLT, FLANGE

95817-08035-00

Unavailable

56

FORK SEAL KIT (TWO FORKS)

5VU-W003B-00-00

Unavailable
