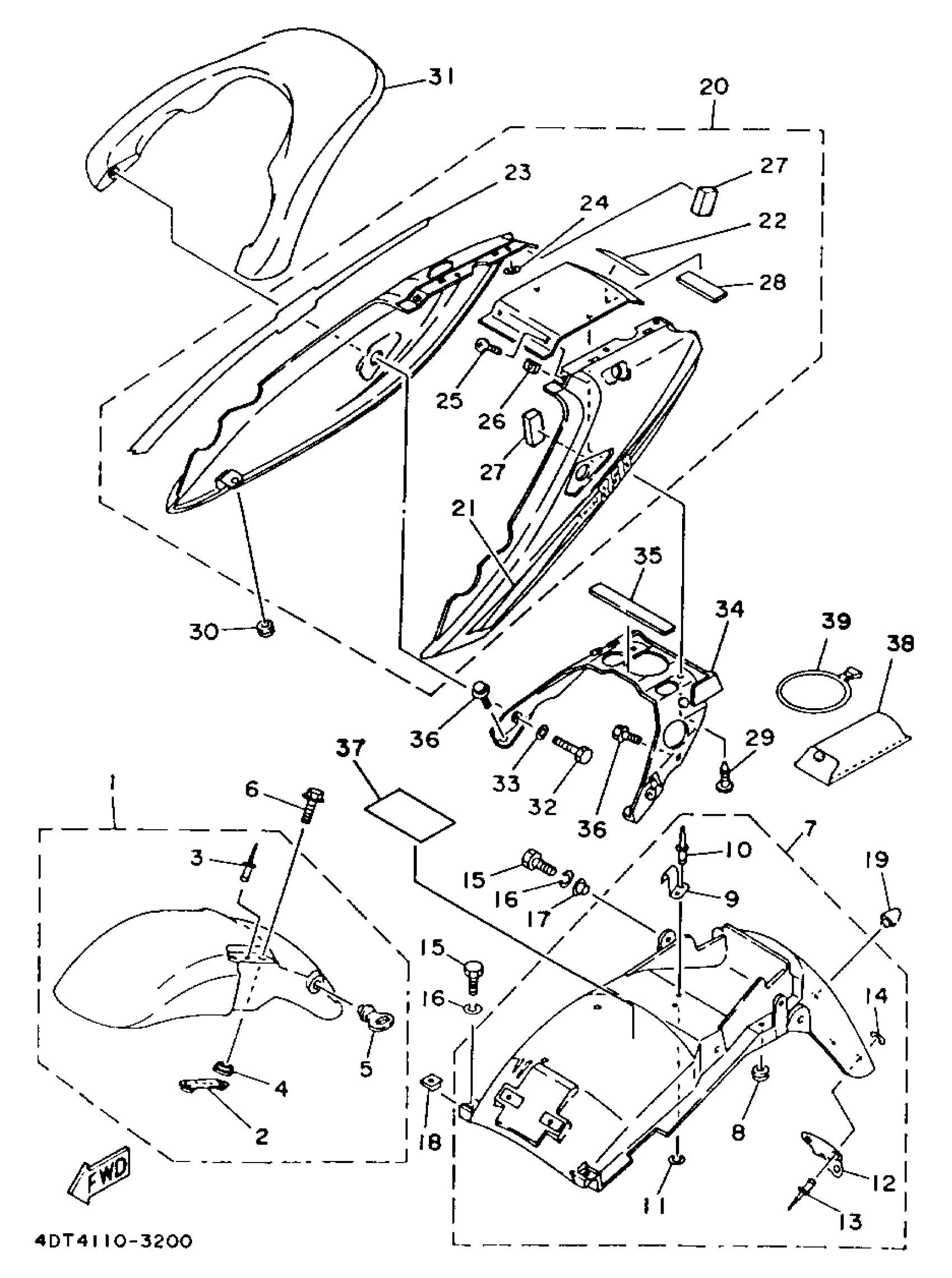

Yamaha TDM850EC (TDM850 CA) 1993 FENDER Diagram
#
1
FRONT FENDER COMP
3VD-Y2151-00-P2
Unavailable
2
BRACKET, FENDER
3GM-21512-00-00
Unavailable
7
REAR FENDER COMP
3VD-Y2161-01-00
Unavailable
8
GROMMET
90480-10258-00
Unavailable
9
HOOK, TOOL BAND
3VD-21366-00-00
Unavailable
12
BRACKET,REFLECT 1
3HE-85132-01-00
Unavailable
16
WASHER, SPRING
92995-06100-00
Unavailable
17
COLLAR (3L1)
90387-07717-00
Unavailable
18
NUT, SPRING (26H)
90183-06023-00
Unavailable
19
PLUG
90338-07018-00
Unavailable
20
COVER, TAIL ASSEMBLY.
3VD-W247K-30-P2
Unavailable
21
. GRAPHIC
3VD-2173E-00-00
Unavailable
22
EMBLEM, YAMAHA
99246-00080-00
Unavailable
23
. GRAPHIC
3VD-2173F-00-00
Unavailable
24
NUT, SPRING(3VD)
90183-08065-00
Unavailable
25
SCREW, BINDING
98907-05012-00
Unavailable
26
NUT, SPRING
90183-051A0-00
Unavailable
27
DAMPER
2YK-21747-00-00
Unavailable
28
DAMPER 5
1AE-2837J-00-00
Unavailable
29
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
30
GROMMET(3VD)
90480-12550-00
Unavailable
31
STAY, REAR
3VD-21645-00-P2
Unavailable
32
BOLT
97017-08035-00
Unavailable
33
WASHER(6TA)
92907-08600-00
Unavailable
34
BRACKET, TAILLIGHT
3VD-2117E-00-00
Unavailable
35
SEAL 4
J44-78248-00-00
Unavailable
36
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
37
PLATE, EPA CAL 2
4DT-2179R-10-00
Unavailable
37
PLATE, EPA U49
4DT-2179V-10-00
Unavailable
38
TOOL KIT
3VD-28100-00-00
Unavailable
39
BAND, TOOL
3YX-21376-00-00
Unavailable
