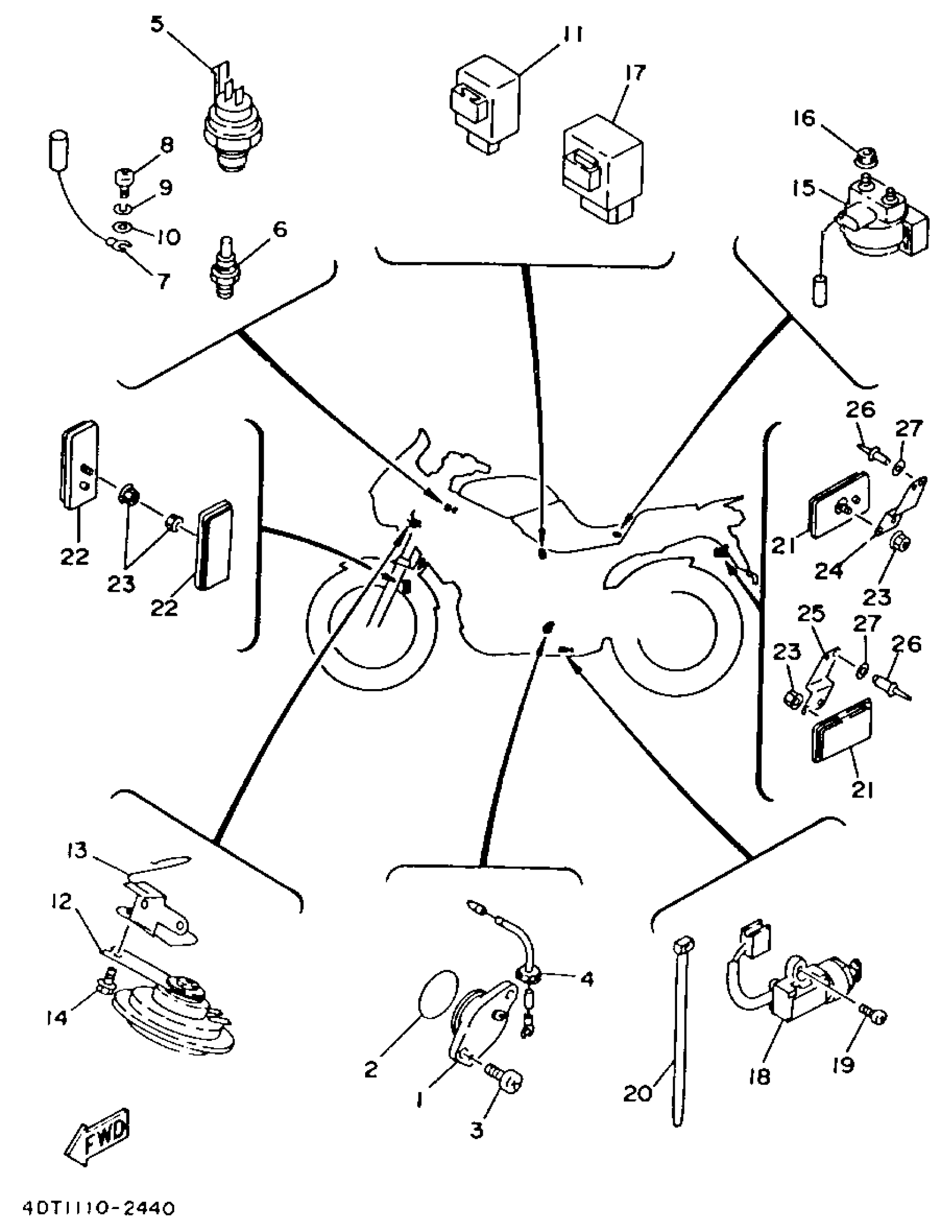

Yamaha TDM850EC (TDM850 CA) 1993 ELECTRICAL 2 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

2

O-RING (371)

93210-29196-00

$8.49

3

SCREW, PAN HEAD

98580-06016-00

Unavailable

4

WIRE, LEAD

3LD-82541-00-00

Unavailable

5

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

6

THERMO UNIT

11H-83591-00-00

$105.99

7

WIRE,EARTH LEAD 1

4NK-83354-00-00

Unavailable

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

WASHER, PLAIN (646)

92990-04600-00

$5.99

11

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

11

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

12

HORN

2KG-83371-00-00

Unavailable

13

STAY

3VD-2317E-00-00

Unavailable

14

BOLT, FLANGE

95817-06010-00

$4.73

15

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

16

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

17

RELAY ASSY

2UJ-81950-02-00

Unavailable

18

SWITCH, SIDE STAND

3LD-82566-51-00

Unavailable

19

SCREW, PAN HEAD

98507-05014-00

Unavailable

20

BAND

1UA-82591-00-00

Unavailable

21

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

22

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

23

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

24

BRACKET, REAR STAY

2LJ-21688-00-00

Unavailable

25

BRACKET, REAR STAY 2

2LJ-21689-00-00

Unavailable

26

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

27

WASHER, PLATE(26H)

90201-044H9-00

Unavailable
