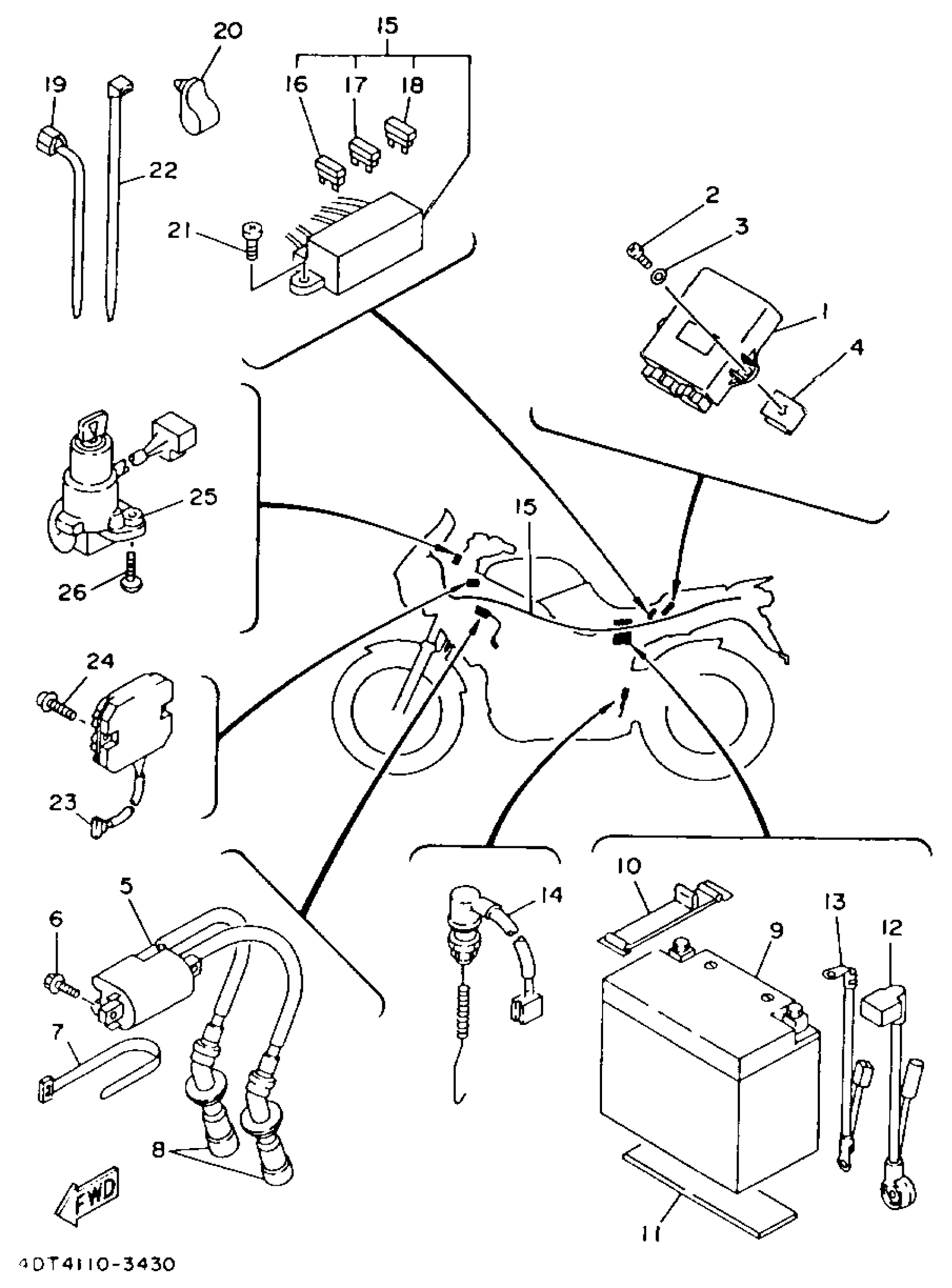

Yamaha TDM850EC (TDM850 CA) 1993 ELECTRICAL 1 Diagram

IGNITOR UNIT ASSEMBLY 1

3VD-82305-00-00

Unavailable

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

WASHER(6TA)

92907-06600-00

$2.72

NUT, SPRING (26H)

90183-06023-00

$9.49

IGNITION COIL ASSY

3LD-82310-09-00

Unavailable

BOLT, FLANGE

95817-06020-00

$3.81

BAND, SWITCH CORD

25G-83936-01-00

$4.78

PLUG CAP ASSY

3LD-82370-00-00

Unavailable

YTX12BS YUASA BATTERY - SA

YTX-12BS0-00-00

Unavailable

BAND, BATTERY

3VD-82131-00-00

Unavailable

SEAT, BATTERY

5Y1-82122-00-00

$7.99

WIRE, PLUS LEAD

3VD-82115-00-00

Unavailable

WIRE, MINUS LEAD

4KM-82116-00-00

Unavailable

STOP SWITCH ASY

4TX-82530-00-00

Unavailable

WIRE HARNESS ASSEMBLY

4DT-82590-10-00

Unavailable

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

FUSE (20A)

2GV-82151-00-00

Unavailable

FUSE (10A)

42X-82151-00-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

CLAMP (2H7)

90464-12027-00

Unavailable

SCREW, BINDING

98907-06012-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

RECTIFIER & REGULATOR ASSY

3VD-81960-01-00

Unavailable

BOLT(3AK)

90109-067E6-00

Unavailable

MAIN SWCH STRG LCK

4DT-82501-00-00

Unavailable

SCREW(1KT)

90149-06228-00

Unavailable
