Yamaha TDM850EC (TDM850 CA) 1993 CRANKCASE Diagram
#
1

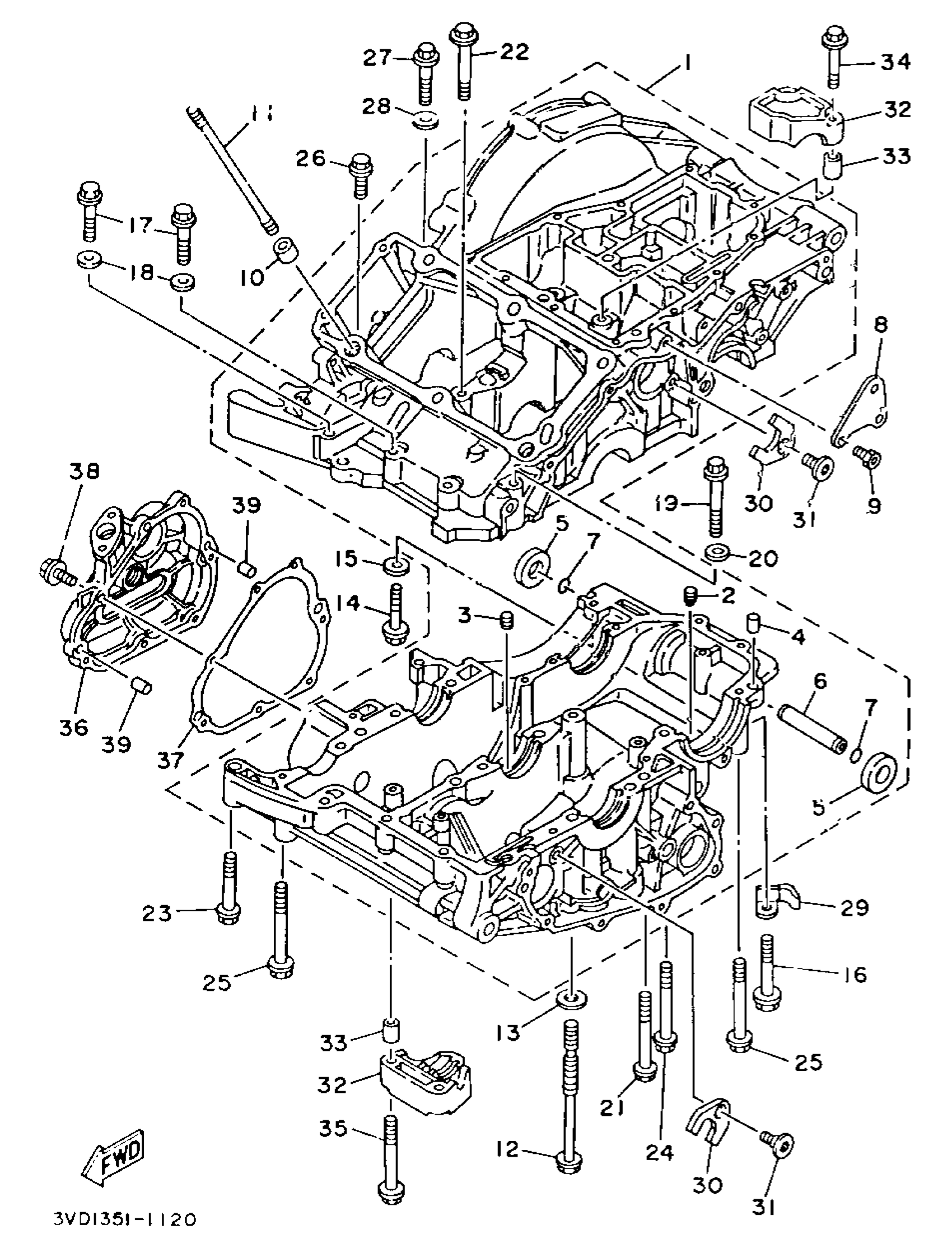

CRANKCASE ASSEMBLY
3VD-15100-10-00
Unavailable
5
. DAMPER, ENG MOUNT 1ENGINE MOUNT 1
3VD-15316-00-00
Unavailable
6
. SPACER, ENG MOUNTENGINE MOUNT
3VD-15317-00-00
Unavailable
8
BRACKET
3VD-15199-00-00
Unavailable
11
BOLT, CYLINDER HOLDING 1
3LD-11361-00-00
Unavailable
12
BOLT, WASHER BASED
90105-10560-00
Unavailable
16
BOLT, FLANGE
95817-06055-00
Unavailable
17
BOLT, FLANGE
95817-08050-00
Unavailable
18
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
19
BOLT, FLANGE
95817-08060-00
Unavailable
20
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
21
BOLT, FLANGE
95817-06070-00
Unavailable
22
BOLT, FLANGE
95814-08065-00
Unavailable
23
BOLT, FLANGE
95817-08050-00
Unavailable
24
BOLT, FLANGE(JN5)
95817-08070-00
Unavailable
25
BOLT, FLANGE
95817-08075-00
Unavailable
26
BOLT, FLANGE
95822-06025-00
Unavailable
29
CLAMP
90465-08341-00
Unavailable
30
PLATE
3LD-15191-00-00
Unavailable
31
SCREW, COUNTERSUNK (4H7)
90151-06014-00
Unavailable
32
HOLDER
3LD-15118-00-00
Unavailable
33
PIN, DOWEL(3XW)
91808-16023-00
Unavailable
34
BOLT, FLANGE
95817-06045-00
Unavailable
35
BOLT, FLANGE
95817-06070-00
Unavailable
36
COVER, OIL PUMP
3VD-15416-10-00
Unavailable
37
GASKET, OIL PUMP COVER 1
3VD-15456-00-00
Unavailable
38
BOLT, FLANGE(3DM)
95024-06020-00
Unavailable
39
PIN, DOWEL(N04)
91808-12024-00
Unavailable
