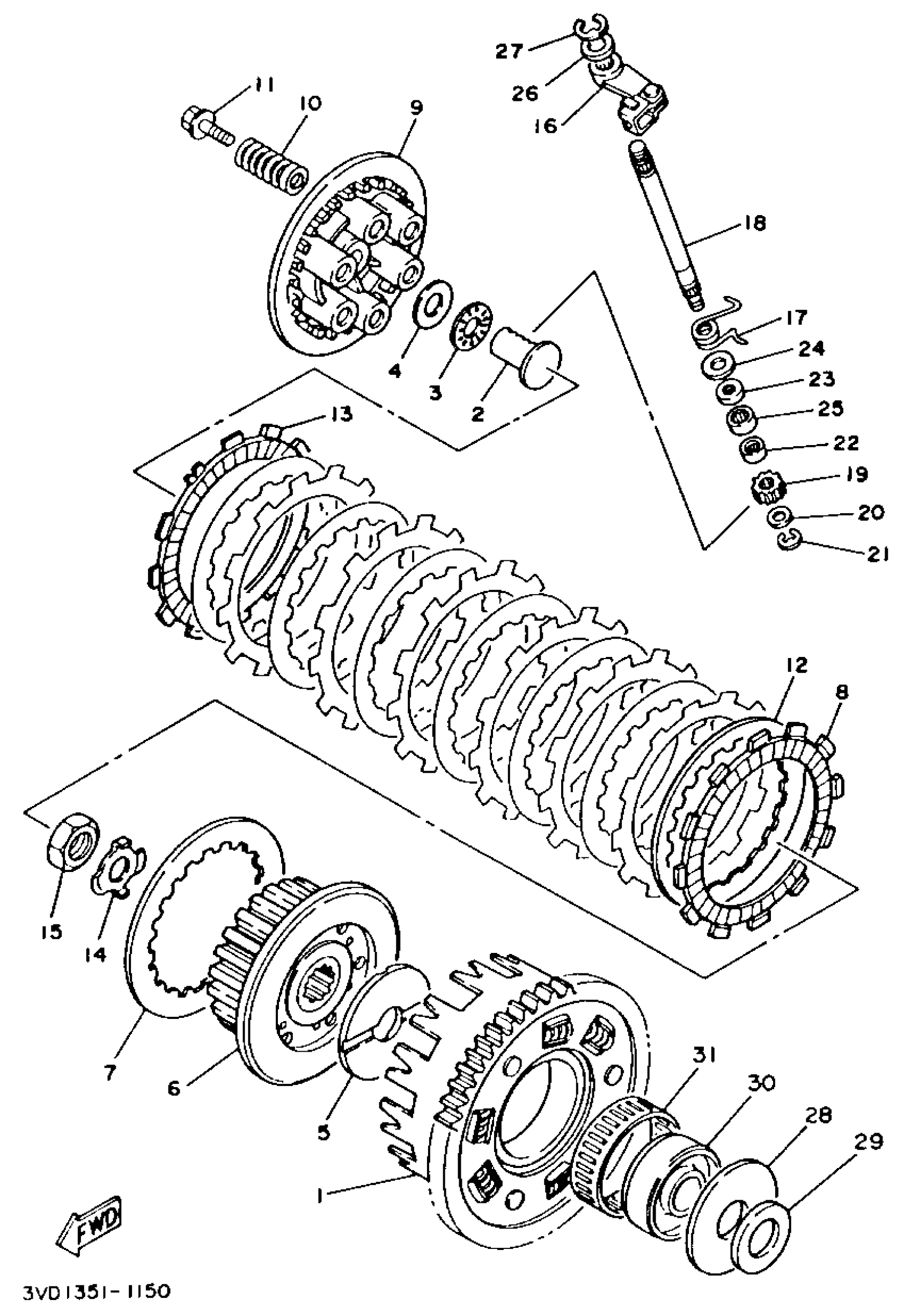

Yamaha TDM850EC (TDM850 CA) 1993 CLUTCH Diagram

PRI DRVN GEARCOMP.

3VD-16150-01-00

Unavailable

ROD PUSH ASSY

3LD-1637A-01-00

Unavailable

BEARING, THRUST (713)

93340-21505-00

$18.99

WASHER, PLATE(3GD)

90201-150U6-00

$9.49

PLATE, THRUST 1

4H7-16154-00-00

Unavailable

BOSS, CLUTCH

3VD-16371-03-00

Unavailable

PLATE, CLUTCH 1

168-16324-10-00

Unavailable

PLATE, FRICTION

4H7-16321-02-00

$23.99

PLATE, PRESSURE 1

3LD-16351-00-00

Unavailable

SPRING, COMPRESSION(1FN)

90501-225A9-00

$8.49

SCREW, WITH WASHER(1AE)

90159-06123-00

$9.49

PLATE, CLUTCH 2

31A-16325-10-00

$9.99

PLATE, FRICTION

4H7-16321-02-00

$23.99

WASHER, LOCK (34L)

90215-20231-00

$4.41

NUT (34L)

90170-20327-00

$18.99

PUSH LEVER ASSY

3VD-16340-11-00

Unavailable

SPRING, TORSION

90508-161A4-00

Unavailable

AXLE, PUSH LEVER

3LD-16382-00-00

Unavailable

PINION, RELEASE

3LD-16398-00-00

Unavailable

.. WASHER, PLATE

92990-08600-00

Unavailable

CIRCLIP

99080-07600-00

Unavailable

BEARING

93317-11096-00

Unavailable

OIL SEAL (4G0)

93102-12224-00

Unavailable

WASHER (692)

90201-12M34-00

Unavailable

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

WASHER, PLAIN(735)

90201-10119-00

Unavailable

CIRCLIP(10W)

99009-10400-00

Unavailable

PLATE, THRUST 2

3VD-16164-00-00

Unavailable

PLATE, THRUST 1

3VD-16154-00-00

Unavailable

SPACER 1

3LD-16181-00-00

Unavailable

BEARING CYLINDRICA

93310-365B8-00

Unavailable
