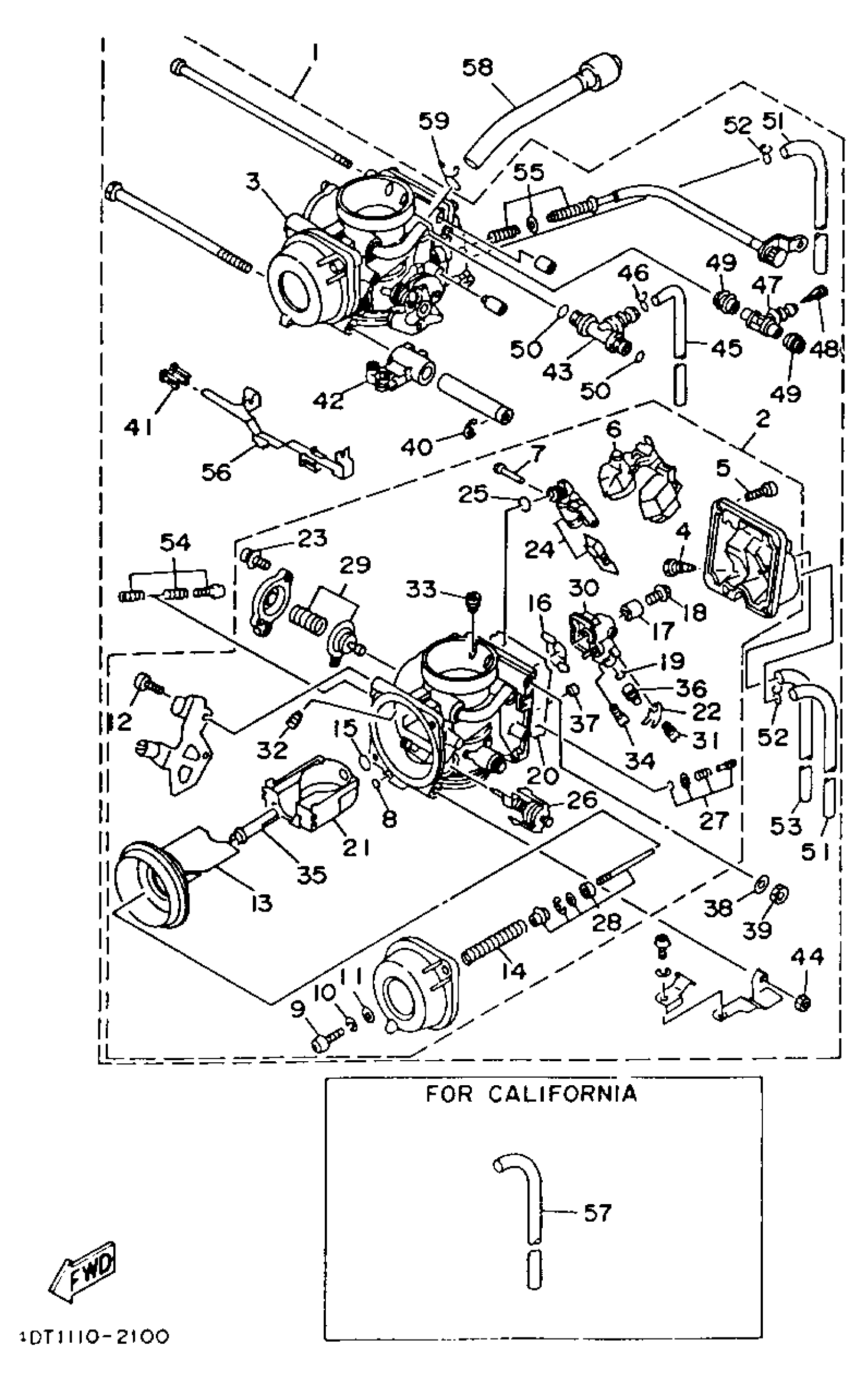

Yamaha TDM850EC (TDM850 CA) 1993 CARBURETOR Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

[4D-T1490-00-00

Unavailable

1

UNAVAILABLE IN PRICE BOOK

[4D-T1490-01-00

Unavailable

2

. CARBURETOR ASSEMBLY 1

4DT-14901-00-00

Unavailable

2

. CARBURETOR ASSEMBLY 1

4DT-14901-10-00

Unavailable

3

. CARBURETOR ASSEMBLY 2

4DT-14902-00-00

Unavailable

3

. CARBURETOR ASSEMBLY 2

4DT-14902-10-00

Unavailable

4

PLUG, DRAIN

3FV-14191-00-00

$24.99

5

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

6

FLOAT

3GM-14985-00-00

Unavailable

7

PIN, FLOAT

53L-14186-00-00

$4.73

8

O-RING

3FV-14147-00-00

$16.49

9

SCREW, PAN HEAD

90157-05M19-00

Unavailable

10

WASHER(3SX)

92907-05100-00

$8.49

11

WASHER(1RW)

92907-05600-00

$3.78

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

DIAPHRAGM ASSY

3GM-14940-00-00

Unavailable

14

.. SPRING, DIAPHRAM

4DT-14933-00-00

Unavailable

15

O-RING

1AE-14147-00-00

Unavailable

16

O-RING

3LF-14147-00-00

Unavailable

17

. WASHER, MAIN JET

3GM-14153-00-00

Unavailable

18

SCREW

1HX-14565-00-00

Unavailable

19

O-RING

3LD-14147-00-00

Unavailable

20

SEAL

3GM-14997-00-00

Unavailable

21

. BLOCK, JET

3GM-1411E-00-00

Unavailable

22

.. JET

3LD-14945-00-00

Unavailable

23

SCREW, PAN HEAD

98517-04012-00

Unavailable

24

NEEDLE VALVE SET

3GM-14107-17-00

Unavailable

25

O-RING

3EN-14147-00-00

Unavailable

26

STARTER SET

3EN-1410A-01-00

Unavailable

27

PILOT SCREW SET

12R-14105-00-00

Unavailable

28

.. NEEDLE SET

4DT-1490J-00-00

Unavailable

29

DIAPHRAGM SET, 5

3LD-1490H-00-00

Unavailable

30

.. BLOCK JET ASSEMBLY

3VD-1411A-00-00

Unavailable

31

. JET, MAIN (#725) (# 725)

620-1423A-65-00

Unavailable

32

PILOT JET, AIR (#1.4)

239-14172-14-00

Unavailable

33

. JET, MAIN (# 75)

830-14231-15-00

Unavailable

34

JET, PILOT (# 37.5)

4G0-14142-37-A0

Unavailable

35

NOZZLE, MAIN

3GM-14141-94-00

Unavailable

36

.. JET, MAIN (#140) (#140)

3LD-14231-28-00

Unavailable

37

CAP

3F9-14118-00-00

Unavailable

38

WASHER, PLAIN (646)

92990-05600-00

Unavailable

39

NUT, HEXAGON (663)

95380-05600-00

Unavailable

40

CLIP

3LD-14919-00-00

Unavailable

41

HOLDER

3EN-14261-00-00

Unavailable

42

. LEVER, CONNECT

3GM-14974-00-00

Unavailable

43

. PIPE, STARTER CONNSTARTER CONNECTING

3LD-14988-00-00

Unavailable

44

NUT, HEXAGON

95380-06600-00

Unavailable

45

PIPE

(2LH-14197-00-00)

Unavailable

46

CLIP, PIPE

8U9-14139-00-00

Unavailable

47

PIPE, STARTER CONNECTING

3EN-14988-00-00

Unavailable

48

NET, FILTER

1KT-14994-00-00

Unavailable

49

SEAL

3EN-14997-00-00

Unavailable

50

O-RING

36Y-14147-00-00

Unavailable

51

. HOSE

3VD-14987-00-00

Unavailable

52

CLIP (1J7)

90467-07029-00

Unavailable

53

PIPE

(3JE-14197-00-00)

Unavailable

54

STOP SCREW SET

4KM-1490K-00-00

Unavailable

55

. THROTTLE SCREW SET

3VD-14103-00-00

Unavailable

56

. LEVER, STARTER

3LD-14986-00-00

Unavailable

57

. HOSE

3VD-14987-00-00

Unavailable

58

PIPE

4CM-14148-00-00

Unavailable

59

CLIP (4X4)

90467-12052-00

Unavailable
