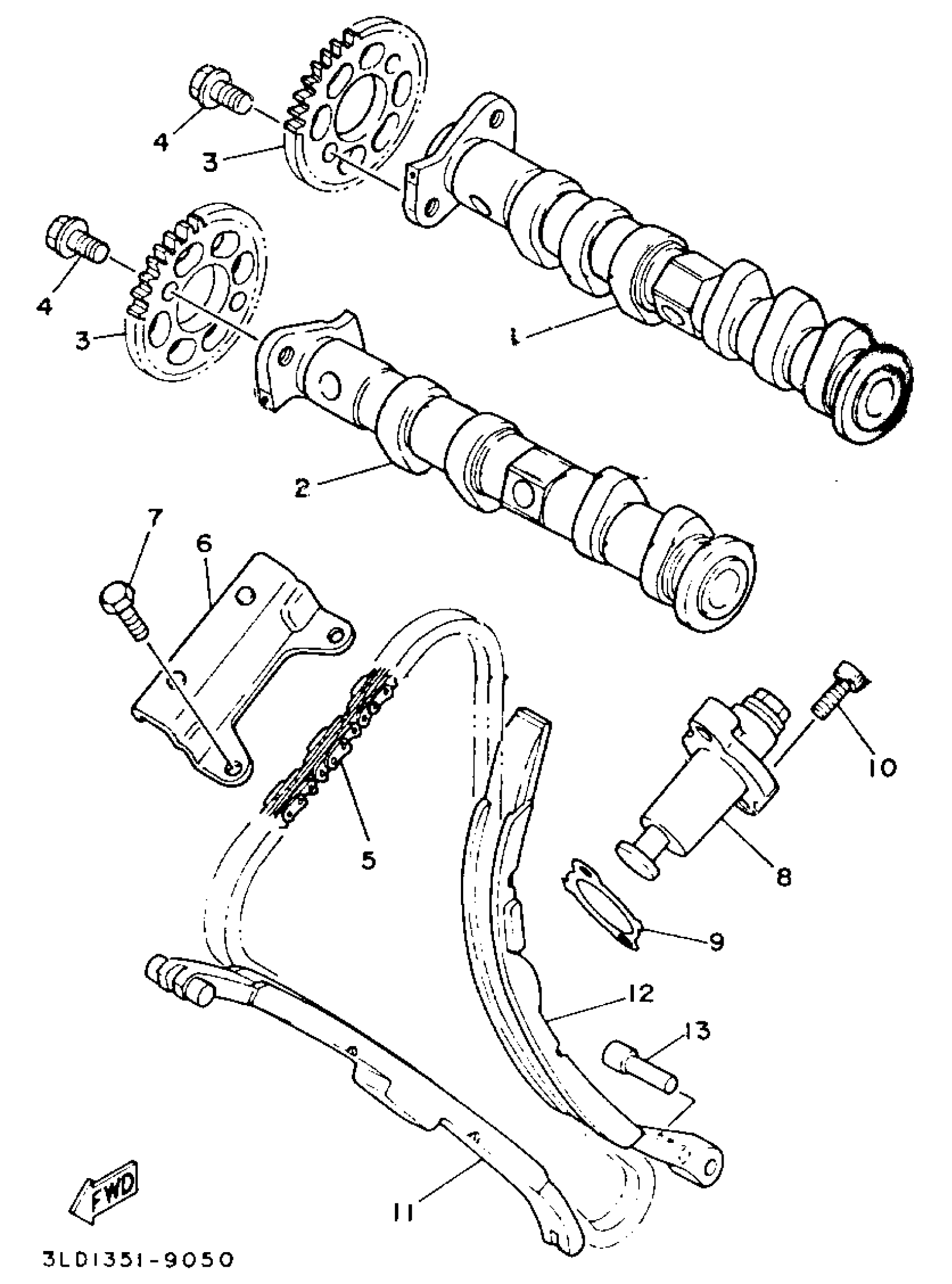

Yamaha TDM850EC (TDM850 CA) 1993 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

3LD-12171-00-00

Unavailable

2

CAMSHAFT 2

3LD-12181-00-00

Unavailable

3

SPROCKET, CAM CHAIN

3LD-12176-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$5.60

5

CHAIN(3LD)

94591-40138-00

$50.99

6

GUIDE, STOPPER 2

3LD-12241-00-00

Unavailable

7

BOLT, HEXAGON

97017-06012-00

$3.76

8

TENSIONER ASSY, CAM CHAIN

3LD-12210-00-00

Unavailable

9

GASKET, TENSIONER CASE

3VD-12213-00-00

Unavailable

10

BOLT,SOCKET HEAD

91314-06025-00

$8.49

11

DAMPER, CHAIN 1

3LD-12251-00-00

Unavailable

12

DAMPER, CHAIN 2

3LD-12252-00-00

Unavailable

13

SHAFT, TENSIONER

3LD-12247-00-00

Unavailable
