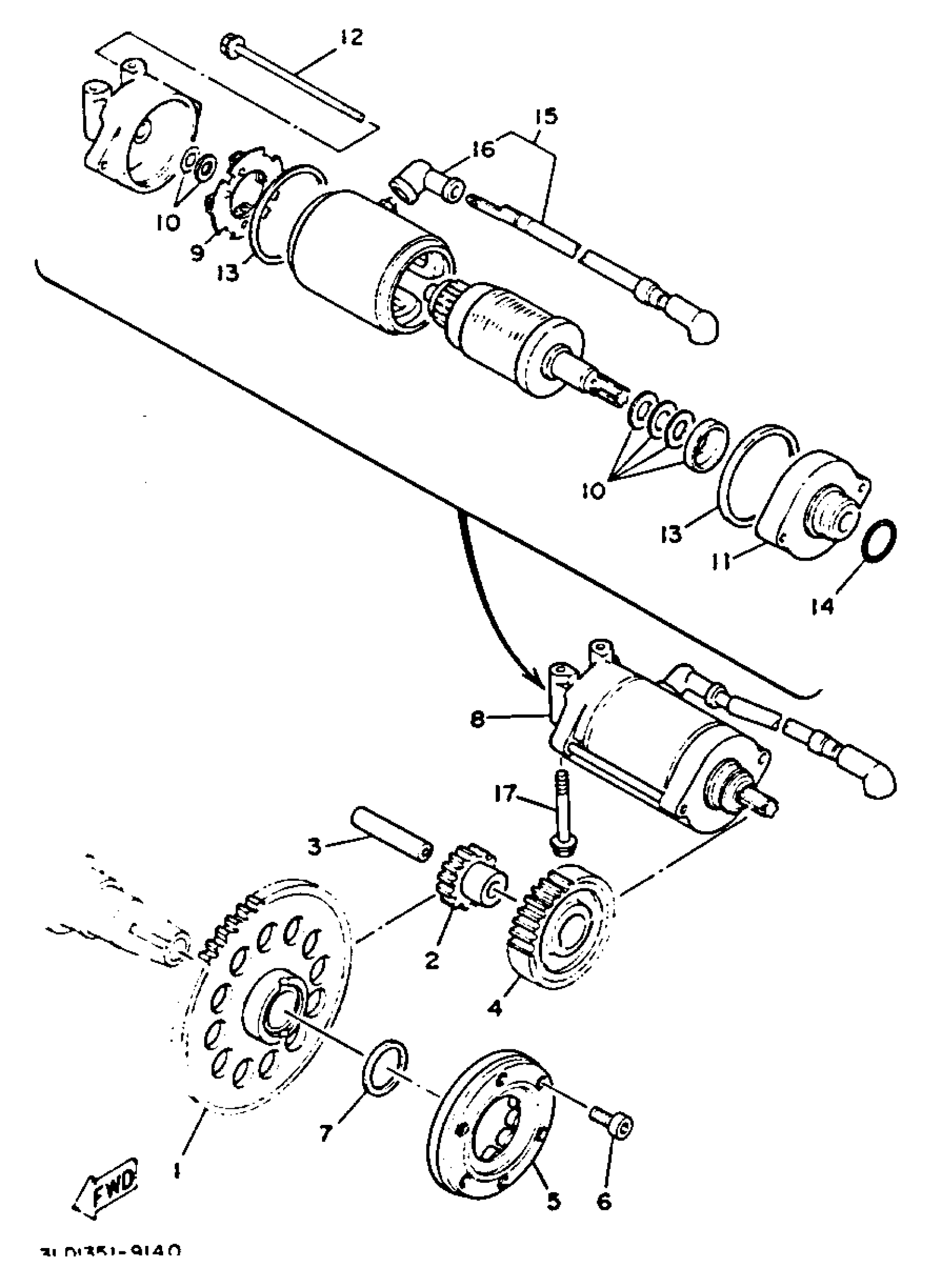

Yamaha TDM850DC (TDM850 CA) 1992 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR 3

4NX-15515-00-00

Unavailable

2

GEAR, IDLER 2

3LD-15517-00-00

Unavailable

3

SHAFT 1

26H-15521-00-00

Unavailable

4

GEAR, IDLER 1

3LD-15512-00-00

Unavailable

5

STARTER ONE-WAY ASSY

3LD-15590-02-00

Unavailable

6

BOLT,SOCKET

91317-06018-00

$8.49

7

WASHER, PLATE

90201-30008-00

$4.82

8

STARTING MOTOR ASSY

3LD-81800-00-00

Unavailable

9

BRUSH SET

3AJ-81801-00-00

$116.99

10

WASHER KIT

3AJ-81809-00-00

Unavailable

11

FRONT BRACKET ASSY

3AJ-81830-00-00

Unavailable

12

BOLT

3AJ-81826-00-00

$25.99

13

GASKET

35C-81844-00-00

Unavailable

14

O-RING (437)

93210-24235-00

$7.49

15

CORD, STARTER MOTOR

3LD-81815-00-00

Unavailable

16

.. CAP

5H0-81871-00-00

Unavailable

17

BOLT, FLANGE

95817-06050-00

Unavailable
