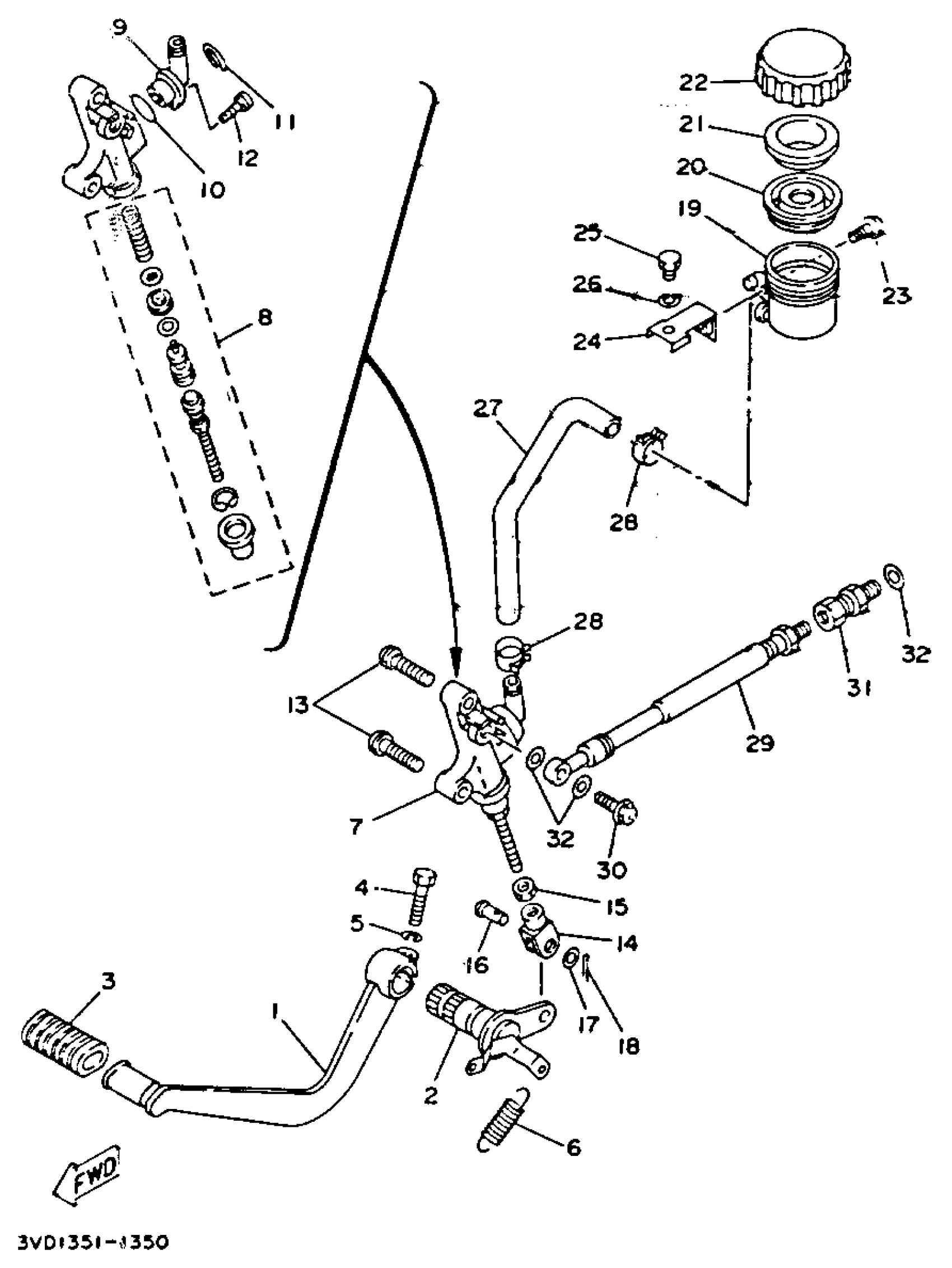

Yamaha TDM850DC (TDM850 CA) 1992 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

3VD-27211-00-00

Unavailable

2

SHAFT, BRAKE PEDAL

3VD-27212-00-00

Unavailable

3

COVER, SHIFT PEDAL

22N-18113-00-00

$7.99

4

BOLT, HEXAGON (538)

90101-06278-00

$2.17

5

WASHER, SPRING

92995-06100-00

Unavailable

6

SPRING, TENSION (2X4)

90506-20192-00

$7.49

7

RR MSTR CYLINDERASSEMBLY.

3VD-2583V-00-00

Unavailable

8

. CYLINDER KIT, MASTER

3VD-W0042-50-00

Unavailable

9

. JOINT

3LN-2582A-00-00

Unavailable

10

O-RING

3LN-2585F-00-00

Unavailable

11

CIRCLIP, MASTER CYLINDER

3LN-2585G-00-00

$4.63

12

SCREW SET

3LN-2585H-00-00

$2.18

13

BOLT, BUTTON

92017-08030-00

$9.49

14

JOINT

47X-27222-00-00

Unavailable

15

. NUT

95380-08700-00

Unavailable

16

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

17

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

18

PIN, COTTER

91490-20025-00

Unavailable

19

TANK, RESERVOIR

47X-25894-00-00

Unavailable

20

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

21

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

22

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

23

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

24

HOLDER, RESERVE TANK

3VD-2582E-00-00

Unavailable

25

BOLT(3JP)

97017-06010-00

Unavailable

26

WASHER(6TA)

92907-06700-00

Unavailable

27

HOSE, RESERVOIR

3VD-25895-01-00

Unavailable

28

CLIP (5K4)

90467-14057-00

Unavailable

29

HOSE,BRAKE 1

99999-02432-00

Unavailable

30

BOLT, UNION(3GM)

90401-10159-00

Unavailable

31

JOINT

3LC-25885-00-00

Unavailable

32

WASHER, PLATE(481)

90201-10118-00

Unavailable
