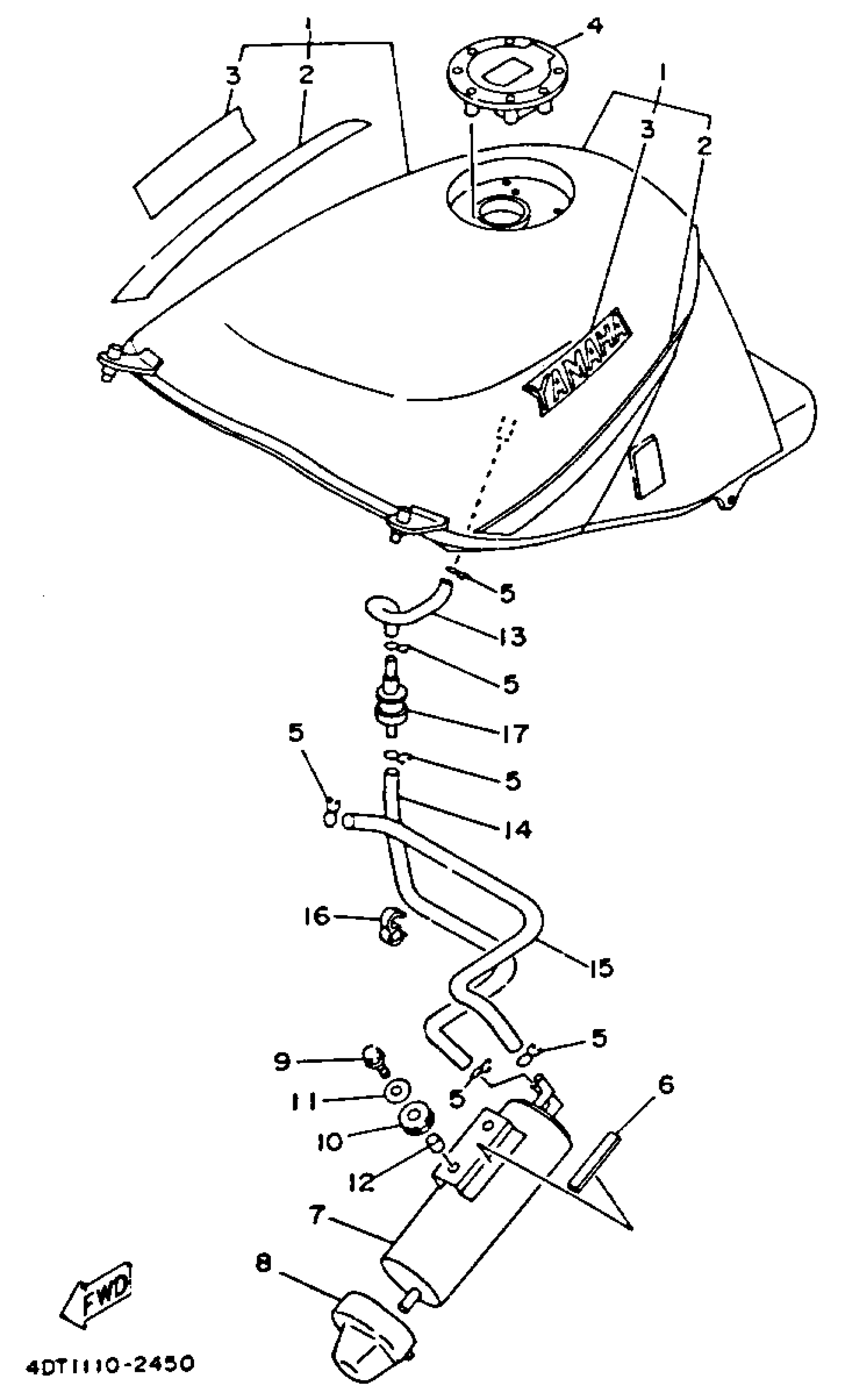

Yamaha TDM850DC (TDM850 CA) 1992 FUEL TANK CALIFORNIA ONLY Diagram

#

Description
Price

1

FUEL TANK ASY

3VD-24110-30-05

Unavailable

2

. GRAPHIC SET

3VD-24240-10-00

Unavailable

3

EMBLEM, YAMAHA

99246-00120-00

$7.57

4

CAP ASSY

4HM-24602-01-00

$259.03

5

CLIP

90467-100A1-00

$6.08

6

SEAL 4

J44-78248-00-00

$7.68

7

CANISTER ASSY

3LK-24170-00-00

Unavailable

8

COVER, CANISTER

(2JU-2419E-00-00)

Unavailable

9

BOLT, FLANGE

95817-06020-00

$2.57

10

GROMMET

90480-12529-00

$1.67

11

WASHER, PLATE(36Y)

90201-063J2-00

$4.24

12

COLLAR(47X)

90387-060G7-00

$7.14

13

PIPE, OVERFLOW

4DT-24318-00-00

Unavailable

14

PIPE, FUEL 1

4DT-24311-00-00

Unavailable

15

PIPE 3

4DT-24313-00-00

Unavailable

16

CLAMP(6M7)

90464-09M31-00

Unavailable

17

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable
