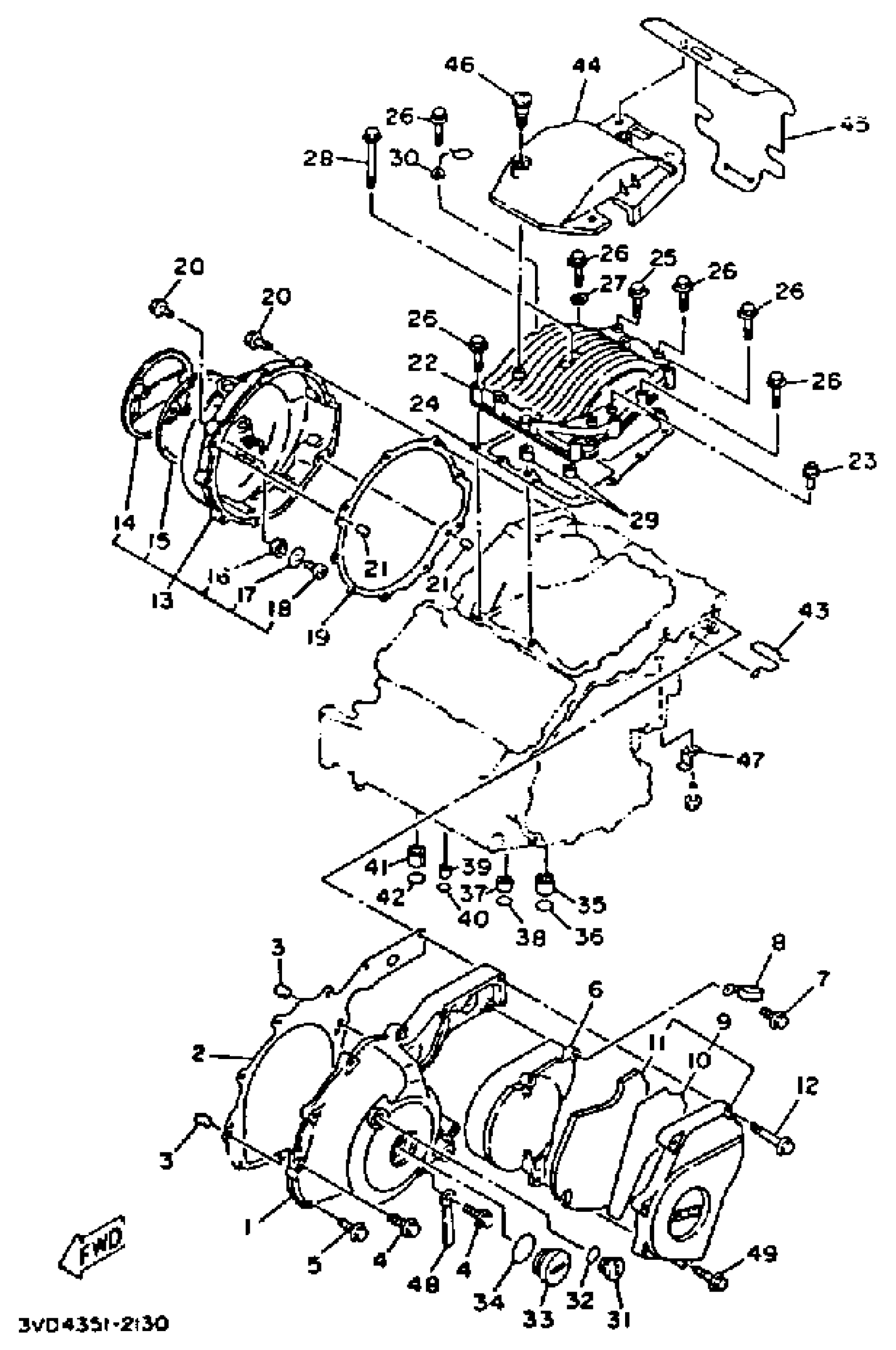

Yamaha TDM850DC (TDM850 CA) 1992 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE L

3VD-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3VD-15451-00-00

Unavailable

3

PIN, DOWEL(N04)

91808-12024-00

$4.24

4

BOLT, SMALL FLANGE

95027-06025-00

$4.16

5

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

6

COVER, CHAIN CASE

3LD-15418-00-00

Unavailable

7

BOLT, SMALL FLANGE

95027-06025-00

$4.16

8

CLAMP(51Y)

90465-08277-00

Unavailable

9

CRCS COVER ASSEMBLY RASSEMBLY 2

3VD-15420-01-00

Unavailable

10

. DAMPER, ENG MOUNT 2ENGINE MOUNT 2

3VD-15326-00-00

Unavailable

11

. DAMPER 3

3VD-15335-00-00

Unavailable

12

BOLT, SMALL FLANGE

95027-06055-00

Unavailable

13

CRANKCASE COVER ASSY 3

3VD-15430-01-00

Unavailable

14

COVER, CAP

3VD-15417-01-00

Unavailable

15

. RING, RUBBER

3LD-15449-00-00

Unavailable

16

GROMMET

1JK-15486-00-00

Unavailable

17

. WASHER

90209-05279-00

Unavailable

18

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

19

GASKET, CRANKCASE COVER 3

4NX-15462-01-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06025-00

$4.16

21

PIN, DOWEL(N04)

91808-12024-00

$4.24

22

COVER, GENERATOR R

3VD-15425-01-00

Unavailable

23

UNAVAILABLE IN PRICE BOOK

[58-31112-60-00

Unavailable

24

GASKET, CARBURETOR COVER 2

3VD-15463-00-00

Unavailable

25

BOLT, FLANGE(4BH)

95024-06035-00

Unavailable

26

BOLT, SMALL FLANGE

95027-06035-00

Unavailable

27

WASHER, PLATE (22F)

90201-066F0-00

Unavailable

28

BOLT, SMALL FLANGE

95027-06070-00

Unavailable

29

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

30

CLAMP

90465-26349-00

Unavailable

31

PLUG, STRAIGHT SCREW(3RW)

90340-14128-00

Unavailable

32

O-RING (2H9)

93210-14369-00

Unavailable

33

PLUG, STRAIGHT SCREW(3AW)

90340-32123-00

Unavailable

34

O-RING (341)

93210-32172-00

Unavailable

35

COLLAR(3HM)

90387-085N0-00

Unavailable

36

O-RING (611)

93210-10096-00

Unavailable

37

COLLAR(3LD)

90387-106W6-00

Unavailable

38

O-RING(3LD)

93210-12790-00

Unavailable

39

COLLAR (3L6)

90387-06761-00

Unavailable

40

O-RING

93210-07438-00

Unavailable

41

COLLAR

90387-130W6-00

Unavailable

42

O-RING (22U)

93210-15566-00

Unavailable

43

CLAMP

90465-20342-00

Unavailable

44

COVER ASSY

3VD-15490-01-00

Unavailable

45

FLAP

3VD-21621-00-00

Unavailable

46

BOLT 1

3KJ-15481-00-00

Unavailable

47

CLAMP (54U)

90462-10147-00

Unavailable

48

CLAMP(4MX)

90465-06376-00

Unavailable

49

BOLT, SMALL FLANGE

95027-06030-00

Unavailable
