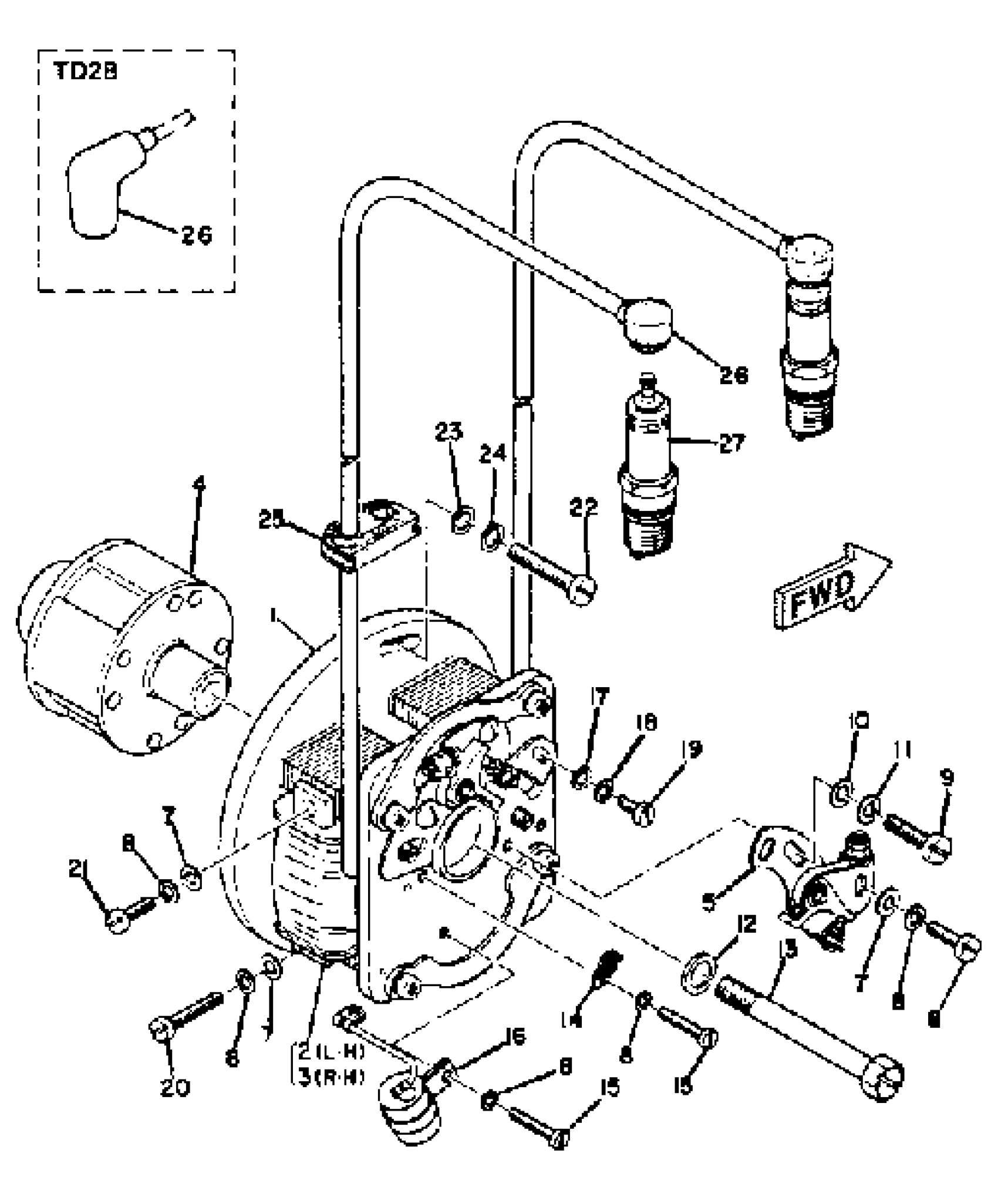

Yamaha TD2 (TD2) 1970 MAGNETO Diagram

#

Description
Price

1

MAGNETO ASS''Y

[17-78150-01-10

Unavailable

2

. COIL IGNITION (LH)

[17-78151-11-00

Unavailable

3

. COIL IGNITION (RH)

[17-78151-21-00

Unavailable

4

. ROTOR ASS''Y

[17-78155-01-00

Unavailable

5

CONTACT BRKR ASY 1

177-81521-10-00

Unavailable

6

. SCREW (1)

[14-48152-41-00

Unavailable

7

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

. SCREW (1)

[14-48152-41-00

Unavailable

10

. WASHER, PLAIN

92990-05200-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

. BOLT, ROTOR SET

[17-78155-21-00

Unavailable

14

. LUBRICATOR

[13-28153-11-00

Unavailable

15

SCREW, PAN HEAD

98507-04018-00

$2.19

16

. CONDENSER

144-81526-10-00

Unavailable

17

WASHER,PLAIN

92990-03200-00

Unavailable

18

WASHER, SPRING

92990-03100-00

Unavailable

19

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

20

SCREW, PAN HEAD

98517-04020-00

Unavailable

21

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

22

SCREW, PAN HEAD

98580-05020-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

24

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

25

GROMMET, HIGH TENSION CORD

[15-08235-50-00

Unavailable

26

PLUG CAP ASSY

166-82370-20-00

Unavailable

26

PLUG CAP ASSEMBLY

294-82370-00-00

Unavailable

27

PLUG, SPARK (B10EN) (94700-00017)

[94-70100-01-70

Unavailable

27

PLUG, SPARK (B10EN) (94700-00018)

[94-70100-01-80

Unavailable
