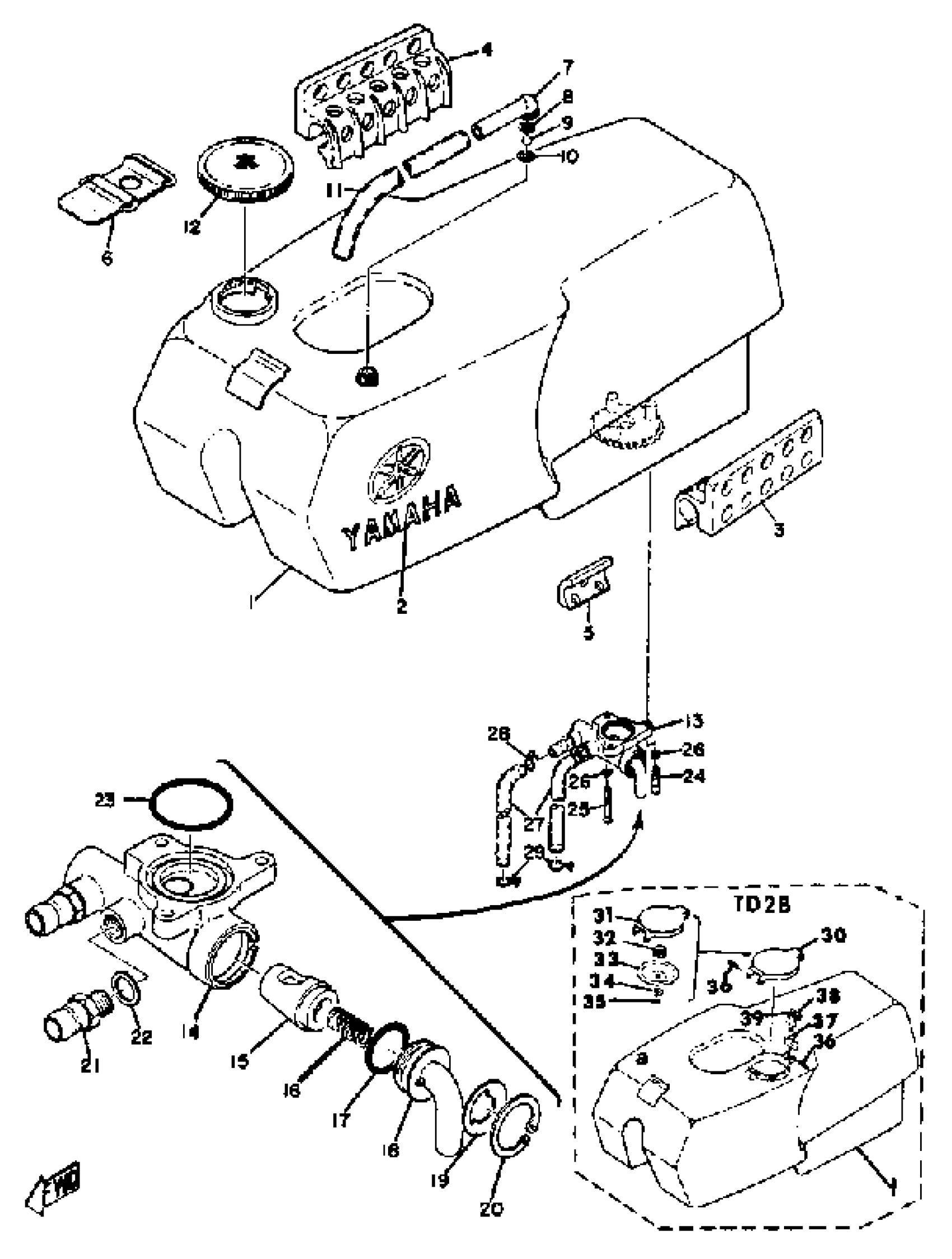

Yamaha TD2 (TD2) 1970 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

(240-24110-00-01)

Unavailable

1

FUEL TANK

(294-24110-00-00)

Unavailable

2

EMBLEM 1

240-24161-00-00

Unavailable

3

GRIP, KNEE 1

(240-24171-00-00)

Unavailable

4

GRIP, KNEE 2

(240-24172-00-00)

Unavailable

5

DAMPER,LOCATING 1

240-24181-00-00

$12.99

6

BAND, TNK FITTING 1

240-24173-00-00

Unavailable

7

NUT, BREATHER

143-24681-00-00

Unavailable

8

GASKET

(90430-10028-00)

Unavailable

9

BALL, VALVE

143-24684-00-00

Unavailable

10

CLIP, BALL HOLDER

143-24685-00-00

Unavailable

11

HOSE (MAXI MAROON)

(90446-06007-00)

Unavailable

12

CAP ASSY

7V5-24610-01-00

$48.99

13

FUEL COCK ASSEMBLY 1

(240-24500-01-00)

Unavailable

14

TOOL

UNA-VAILA-BL-EI

Unavailable

15

TOOL

UNA-VAILA-BL-EI

Unavailable

16

. SPRING

(145-24529-00-00)

Unavailable

17

. SEAL, COCK

(240-24534-00-00)

Unavailable

18

. LEVER, COCK

(240-24524-00-00)

Unavailable

19

. PLATE, LVR FITTING

(240-24525-00-00)

Unavailable

20

. BRACKET, FUEL COCK

(240-24544-00-00)

Unavailable

21

. NIPPLE

(240-24537-00-00)

Unavailable

22

. GASKET

(240-24528-00-00)

Unavailable

23

. GASKET

(145-24512-00-00)

Unavailable

24

SCREW, FLAT HEAD

(98701-04018-00)

Unavailable

25

WASHER, EX.TOOTH

(92901-04500-00)

Unavailable

26

WASHER, EX.TOOTH

(92901-04500-00)

Unavailable

27

HOSE

90445-11491-00

Unavailable

28

CLIP

90467-100A1-00

Unavailable

29

CLIP(1JH)

90467-11106-00

Unavailable

30

TOOL

UNA-VAILA-BL-EI

Unavailable

31

. BODY, CAP

294-24611-00-00

Unavailable

32

SPRING, CAP

90501-20130-00

Unavailable

33

. GASKET, CAP

294-24612-00-00

Unavailable

34

WASHER, PLAIN

92990-08200-00

Unavailable

35

CIRCLIP(53L)

99001-06600-00

Unavailable

36

PIN, SPRING (6H4)

91690-30020-00

Unavailable

37

SPRING, TORSION (256-24637-00)

90508-08223-00

Unavailable

38

HOOK

256-24628-00-00

Unavailable

39

O-RING (26H)

93210-06632-00

Unavailable
