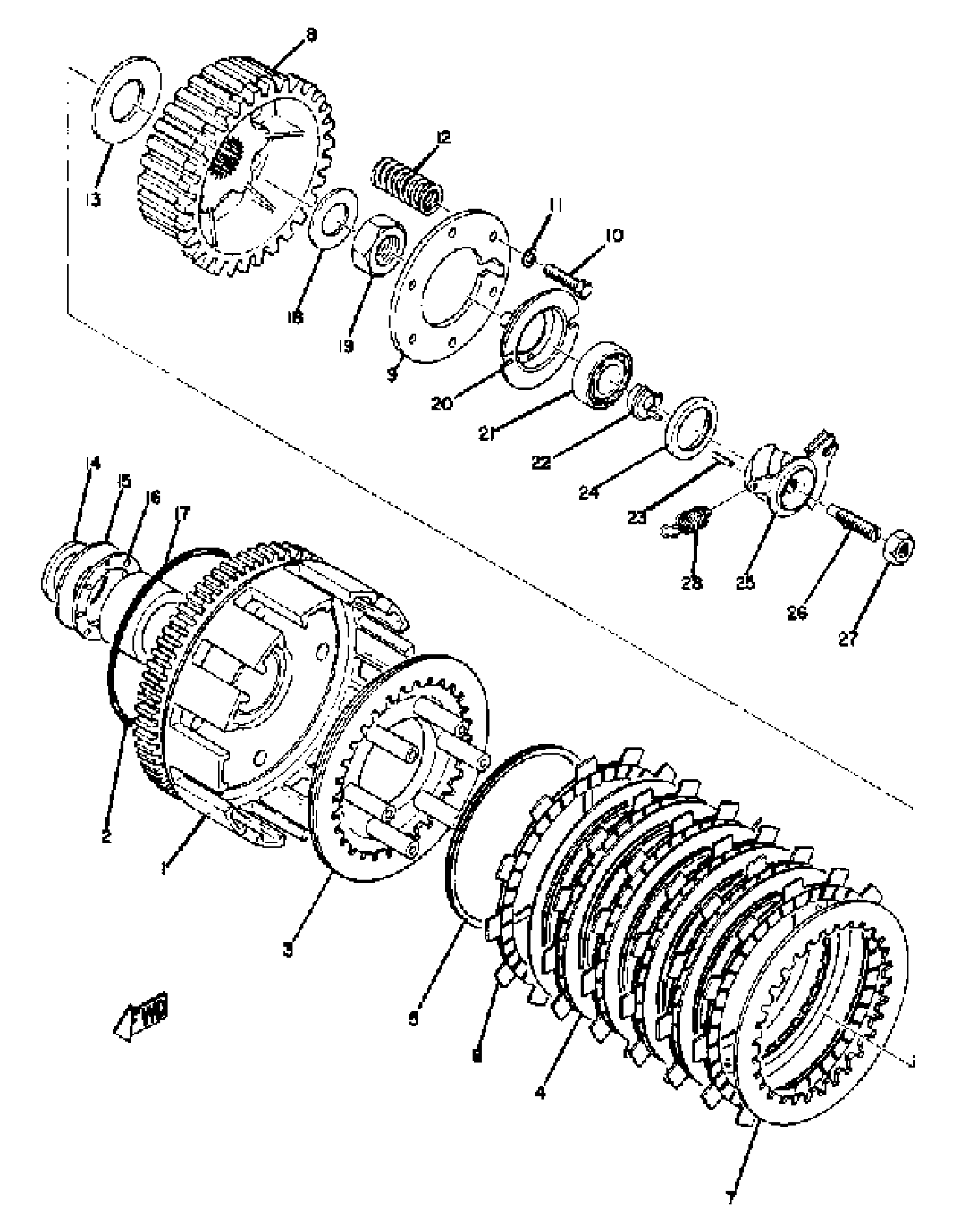

Yamaha TD2 (TD2) 1970 CLUTCH Diagram
#
Description
Price
1
PLATE, CLUTCH 3
(239-16326-00-00)
Unavailable
1
PRI DRVN GEAR
(240-16150-01-00)
Unavailable
3
PLATE, PRESSURE 1
(239-16351-00-00)
Unavailable
5
. RING, CUSHION
168-16367-00-00
Unavailable
6
PLATE, FRICTION
(240-16321-01-00)
Unavailable
8
BOSS, CLUTCH
(240-16371-00-00)
Unavailable
9
PLATE, PRESSURE 2
(168-16352-00-00)
Unavailable
10
SCREW, HEXAGON
(92603-06020-00)
Unavailable
14
PLATE, THRUST 1
(170-16154-00-00)
Unavailable
16
BEARING, FLAT #41
93341-23504-00
Unavailable
17
SPACER 1
(170-16181-00-00)
Unavailable
18
SPRING
214-16119-00-00
Unavailable
19
NUT
90170-18089-00
Unavailable
20
CROWN, PUSH
(170-16348-00-00)
Unavailable
21
BEARING, CYLINDER.#16
(93316-00301-00)
Unavailable
22
PLUG, PUSH
(168-16349-00-00)
Unavailable
23
PIN, DOWEL
93603-14026-00
Unavailable
24
OIL SEAL
93101-25030-00
Unavailable
25
PUSH LEVER ASSEMBLY
(170-16340-00-00)
Unavailable
26
BOLT, SET
(90113-08020-00)
Unavailable
27
. NUT
95380-08700-00
Unavailable
28
SPRING, TENSION
90506-10023-00
Unavailable
