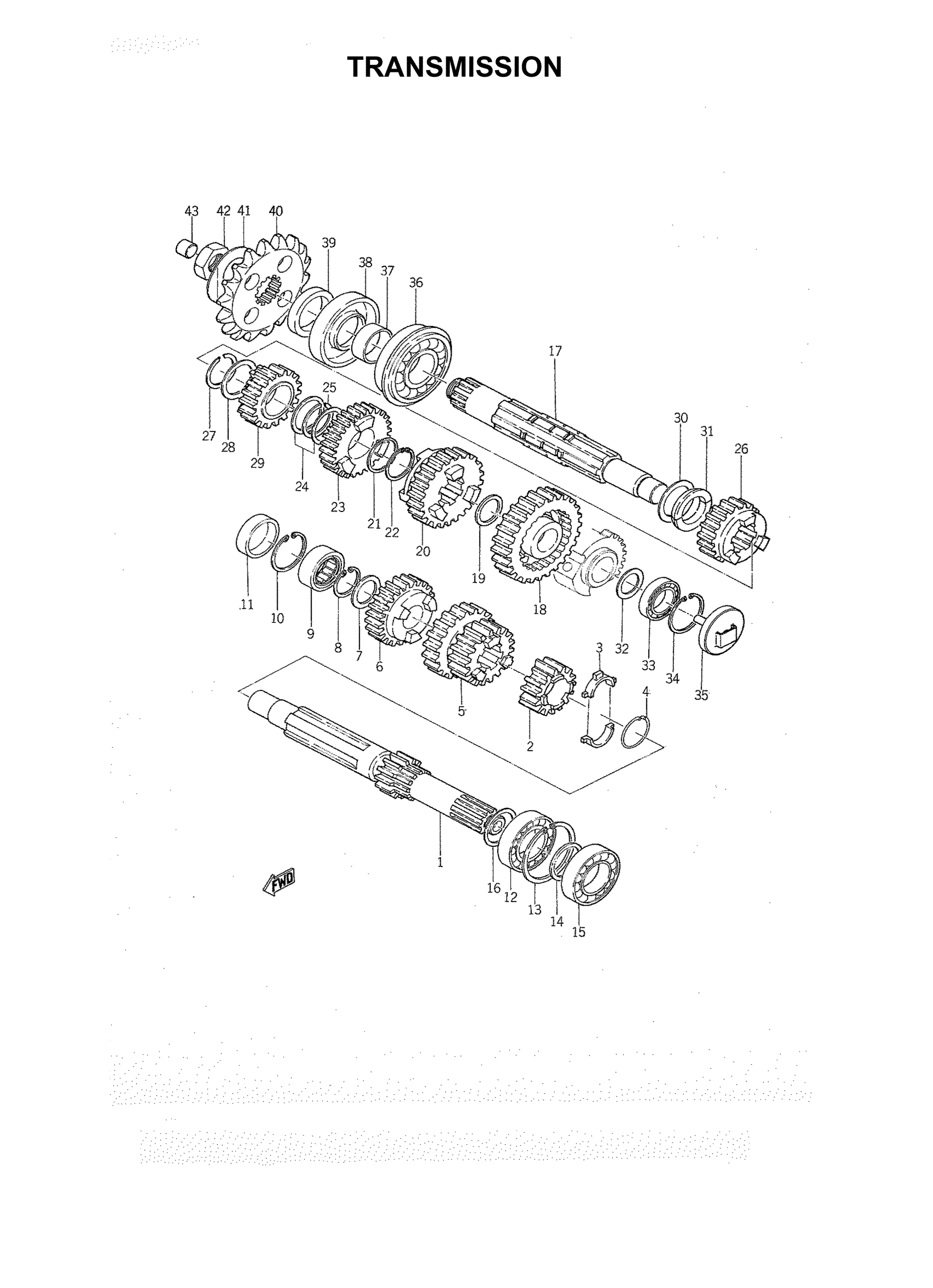

Yamaha TD1C (TD1) 177 1966 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

177-17411-00-00

Unavailable

2

GEAR,2ND PINION

246-17121-00-00

Unavailable

3

PLATE, SETTING

156-17115-00-00

Unavailable

4

CLIP

90468-14036-00

Unavailable

5

GEAR, 3RD AND 5TH PINION

177-17131-01-00

Unavailable

6

GEAR, 4TH PINION

157-17141-00-00

Unavailable

7

WASHER, PLATE (30X)

90201-177G4-00

$9.49

8

CIRCLIP(1EY)

99009-17400-00

$4.73

9

BEARING, CYLINDER.#11

93311-21704-00

Unavailable

10

CIRCLIP

99009-25500-00

$7.49

11

PLUG, BLIND

156-17481-00-00

Unavailable

12

BEARING(1FF)

93306-00519-00

$36.99

13

CIRCLIP, INNER

93450-47011-00

Unavailable

14

SPACER

90560-25044-00

Unavailable

15

BRG,R-B 6005 47MM 85G KY

93306-00507-00

$42.99

16

SHIM 1

156-17417-00-01

Unavailable

17

AXLE, DRIVE

156-17421-00-00

Unavailable

18

GEAR, 1ST WHEEL

145-17211-00-00

Unavailable

19

WASHER, PLATE (5N0)

90201-203E7-00

Unavailable

20

GEAR,2ND WHEEL

145-17221-00-00

Unavailable

21

WASHER,SPEC'L SHAP

90209-21081-00

Unavailable

22

CIRCLIP(JF7)

99009-25400-00

Unavailable

23

GEAR, 3RD WHEEL

177-17231-01-00

Unavailable

24

WASHER PLATE 152172260000

90201-25490-00

Unavailable

25

CIRCLIP(JF7)

99009-25400-00

Unavailable

26

GEAR, 4TH WHEEL

157-17241-00-00

Unavailable

27

CIRCLIP (4L0)

93440-25084-00

Unavailable

28

WASHER,SPEC'L SHAP

90209-21081-00

Unavailable

29

GEAR 5TH WHEEL

157-17251-00-00

Unavailable

30

SHIM 2

156-17428-00-00

Unavailable

31

SPACER, DRIVE AXLE

156-17429-00-00

Unavailable

32

SHIM 1

156-17427-00-07

Unavailable

32

SHIM 1

156-17427-00-08

Unavailable

33

BEARING (7X9)

93306-20327-00

Unavailable

34

CIR-CLIP (70R)

93420-40064-00

Unavailable

35

BUCKET, OIL 1

156-17488-00-00

Unavailable

35

BEARING

93306-30502-00

Unavailable

37

COLLAR(1AE)

90387-253M9-00

Unavailable

38

OIL SEAL, SD-TYPE

93102-30025-00

Unavailable

39

SEAL, FELT

156-17465-00-00

Unavailable

40

SPROCKET, DRIVE

156-17461-30-00

Unavailable

40

SPROCKET, DRIVE

156-17461-40-00

Unavailable

40

SPROCKET DRIVE

9384E-15155-00

Unavailable

40

SPROCKET, DRIVE

156-17461-60-00

Unavailable

40

SPROCKET, DRIVE

156-17461-70-00

Unavailable

40

SPROCKET, DRIVE

156-17461-80-00

Unavailable

41

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

42

NUT 152174630000

90179-18020-00

Unavailable

43

PLUG,TAPER

90336-09002-00

Unavailable

43

SHIM 1

156-17417-00-01

Unavailable
