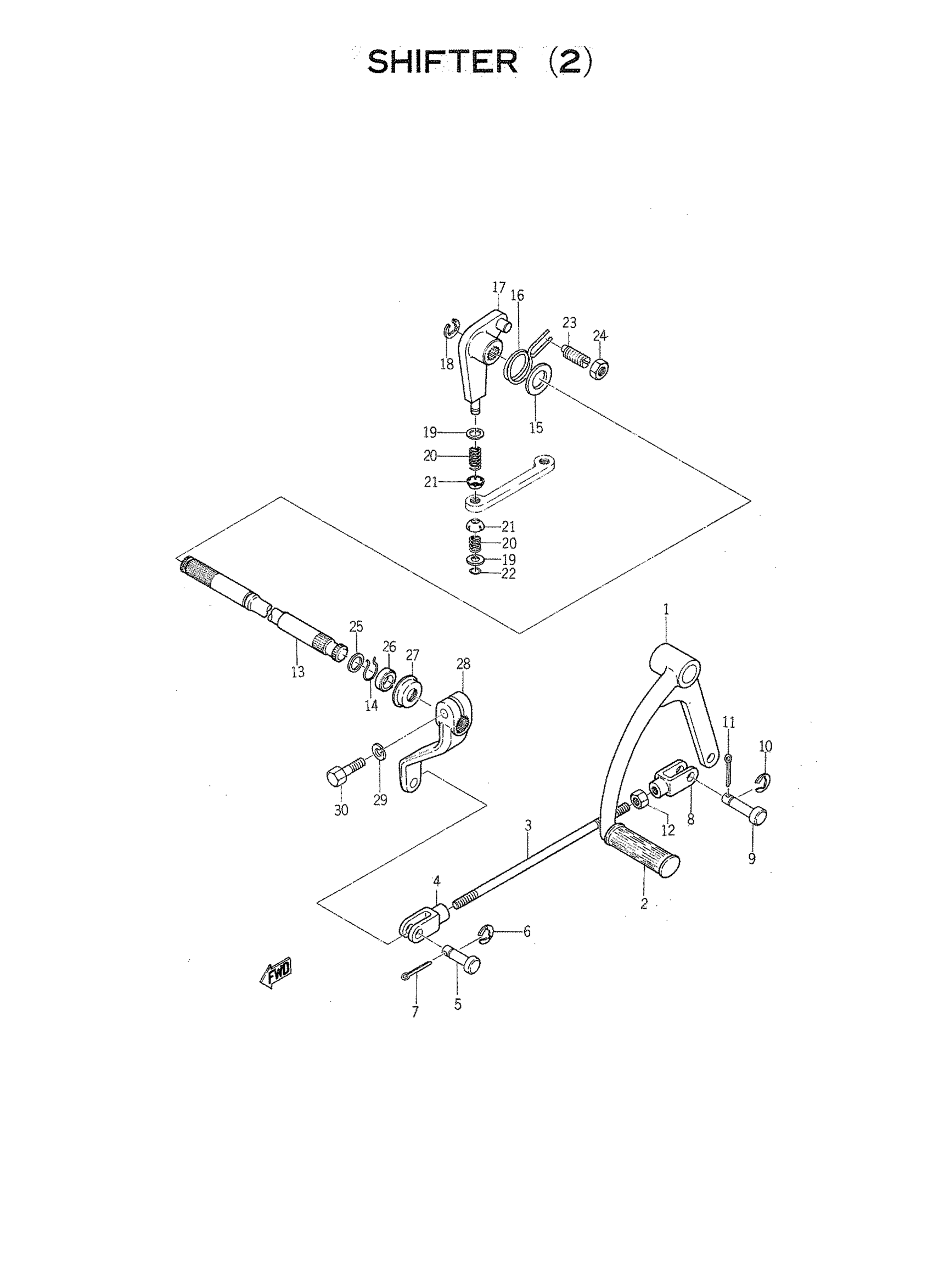

Yamaha TD1C (TD1) 177 1966 SHIFTER 2 Diagram

#

Description
Price

1

PEDAL,SHIFT

144-18111-00-93

Unavailable

2

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

3

ROD, CHANGE

144-18115-00-00

Unavailable

4

JOINT, CHANGE ROD 1

144-18116-00-00

Unavailable

5

PIN,SPEC'L SHAPE

90249-08085-00

Unavailable

6

CIRCLIP(53L)

99001-06600-00

$1.01

7

PIN, COTTER

91490-20025-00

$1.99

8

JOINT, CHANGE ROD 2

144-18117-00-00

Unavailable

9

PIN,SPEC'L SHAPE

90249-08085-00

Unavailable

10

CIRCLIP(53L)

99001-06600-00

$1.01

11

PIN, COTTER

91490-20025-00

$1.99

12

. NUT

95380-08700-00

Unavailable

13

SHAFT, SHIFT

170-18125-00-00

Unavailable

14

CLIP, SHIFT SHAFT

150-18135-00-00

Unavailable

15

WASHER,PLATE

90201-12186-00

Unavailable

16

SPRING,TORSION

90508-40209-00

Unavailable

17

SHIFT LEVER ASY

150-18120-00-00

Unavailable

18

CIRCLIP (137)

93430-10015-00

Unavailable

19

WASHER,PLATE

90201-06046-00

Unavailable

20

SPRING,COMPRESSION

90501-05021-00

Unavailable

21

WASHER,SPEC'L SHAP

90209-06083-00

Unavailable

22

CLIP, PAWL LOCK

150-18189-00-00

Unavailable

23

SCREW,SPEC'L SHAPE

90149-10045-00

Unavailable

24

NUT,HEXAGON

90170-10044-00

Unavailable

25

WASHER,PLATE

90201-12168-00

Unavailable

26

OIL SEAL (12X22X5-371)

93102-12106-00

Unavailable

27

SEAL, CHANGE SHAFT

170-18132-00-00

Unavailable

28

ARM,SHIFT

177-18112-00-93

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

BOLT, HEXAGON

97017-06020-00

Unavailable
