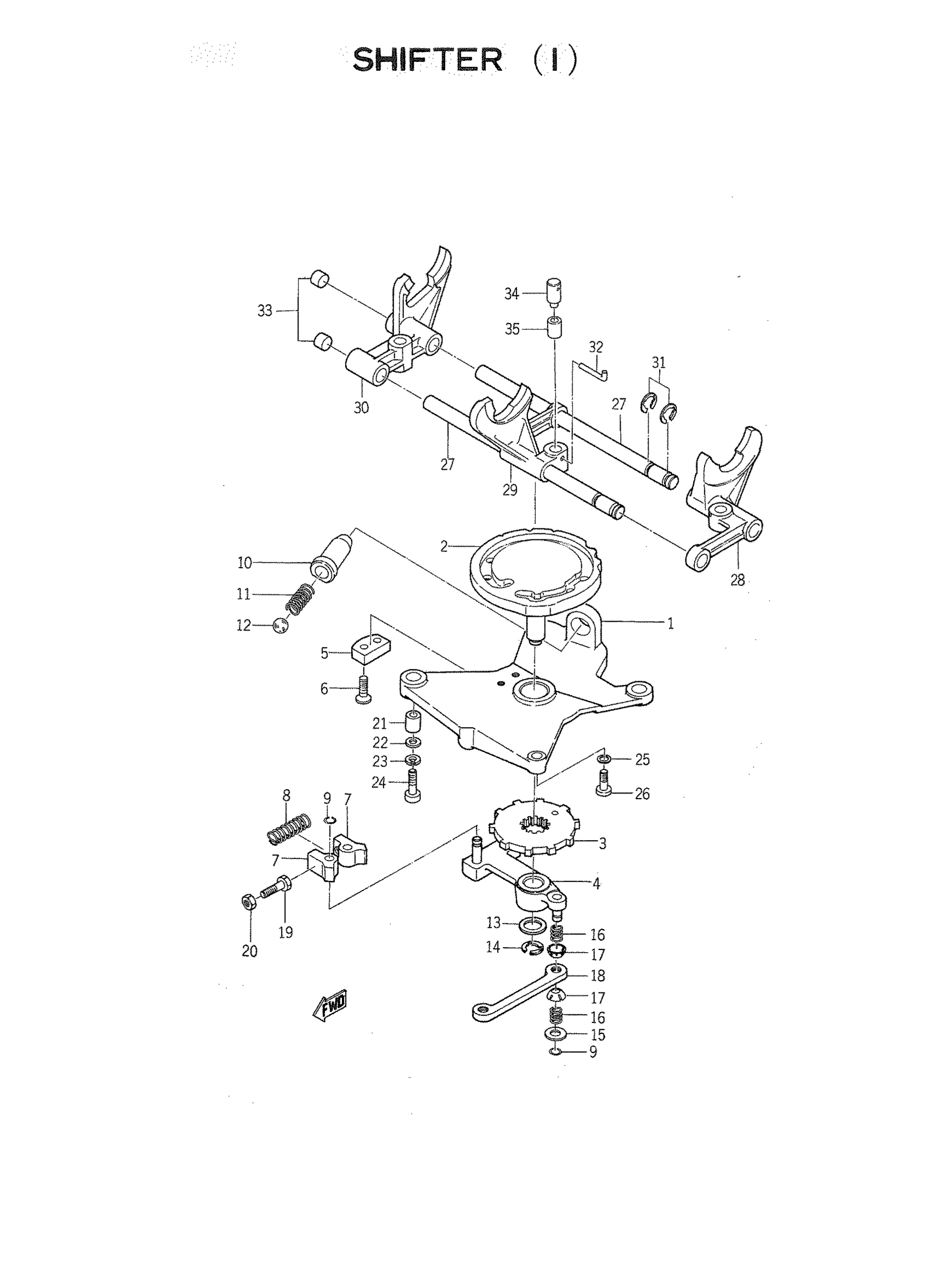

Yamaha TD1C (TD1) 177 1966 SHIFTER 1 Diagram

#

Description
Price

1

PLATE,CAM FITTING

170-18351-00-00

Unavailable

2

PLATE, SHIFT CAM

152-18331-00-00

Unavailable

3

PLATE, WORKING

156-18333-00-00

Unavailable

4

PAWL HOLDER ASSEMBLY

156-18180-00-00

Unavailable

5

PLATE, PAWL

150-18352-00-00

Unavailable

6

SCREW,OVAL HEAD

92601-04012-00

Unavailable

7

PAWL, SHIFTER

150-18182-00-00

Unavailable

8

SPRING,COMPRESSION

90501-06026-00

Unavailable

9

CLIP, PAWL LOCK

150-18189-00-00

Unavailable

10

BUSH

150-18587-00-00

Unavailable

11

SPRING,COMPRESSION

90501-16098-00

Unavailable

12

BALL 13/32

93513-32008-00

Unavailable

13

SHIM

150-18334-00-09

Unavailable

14

CIRCLIP(2R6)

99001-08600-00

$8.49

15

WASHER,PLATE

90201-06046-00

Unavailable

16

SPRING,COMPRESSION

90501-05021-00

Unavailable

17

WASHER,SPEC'L SHAP

90209-06083-00

Unavailable

18

LINK, SHIFT

150-18335-00-00

Unavailable

19

BOLT, HEXAGON

97017-06020-00

Unavailable

20

NUT(650)

95380-06700-00

Unavailable

21

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

27

SHAFT, SHIFTER

150-18318-00-00

Unavailable

28

FORK, SHIFT 1

152-18311-00-00

Unavailable

29

FORK, SHIFT 2

152-18312-00-00

Unavailable

30

FORK, SHIFT 3

152-18313-00-00

Unavailable

31

CIRCLIP(2R6)

99001-08600-00

$8.49

32

PIN, SPEC''L SHAPE

90249-02003-00

Unavailable

33

PLUG, BLIND

90334-10006-00

Unavailable

34

PIN, CAM FOLLOWER

145-18327-00-00

Unavailable

35

NUT,HEXAGON

90170-10044-00

Unavailable
