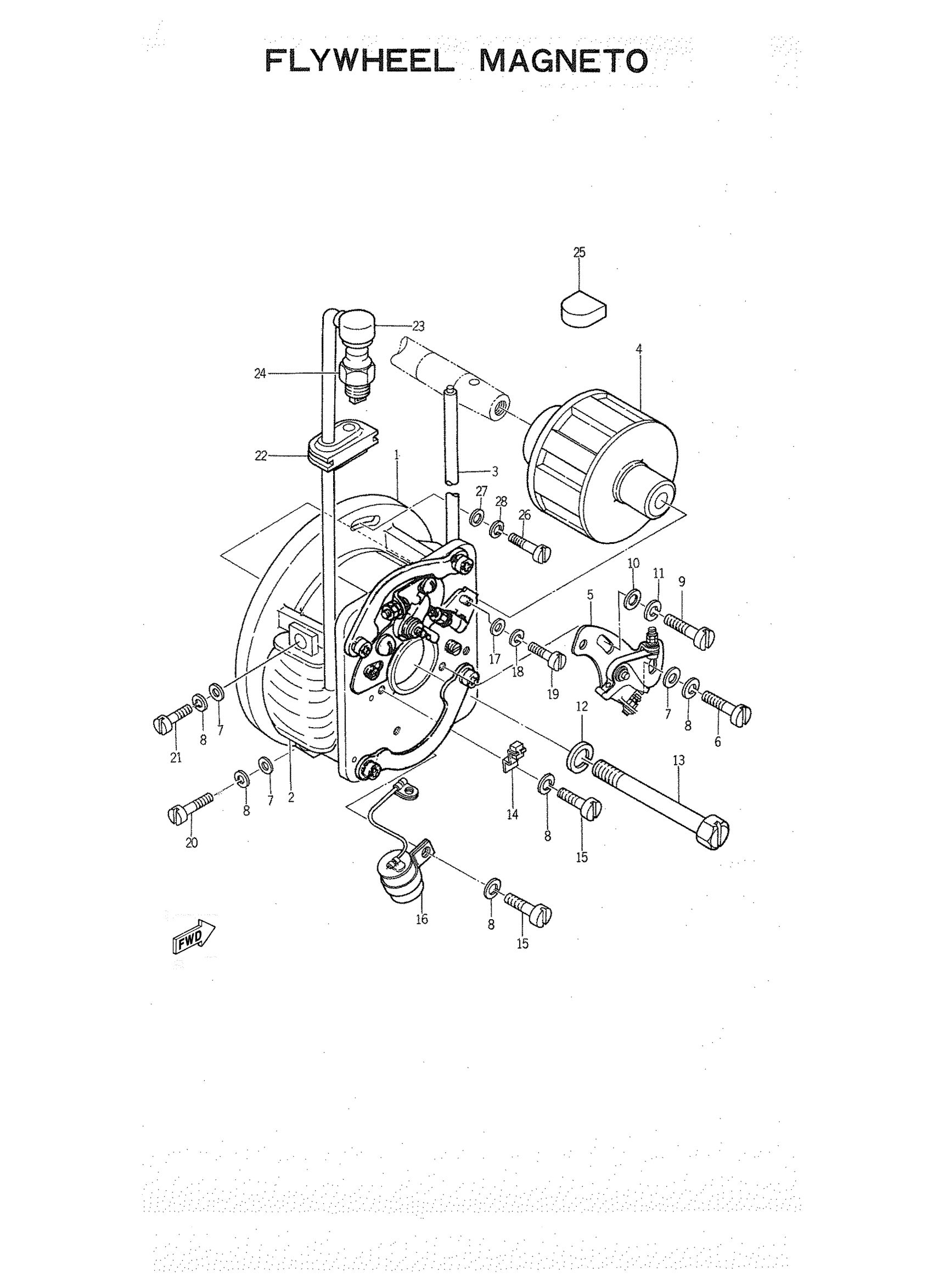

Yamaha TD1C (TD1) 177 1966 MAGNETO Diagram
#
Description
Price
1
MAGNETO ASY
177-81500-11-00
Unavailable
2
. COIL, IGNITION (LH)
177-81511-10-00
Unavailable
3
. COIL, IGNITION (RH)
177-81512-10-00
Unavailable
4
. ROTOR ASSY
177-81510-10-00
Unavailable
5
CONTACT BRKR ASY 1
177-81521-10-00
Unavailable
6
. SCREW, ADJUSTING
144-81524-10-00
Unavailable
10
. WASHER, PLAIN
92990-05200-00
Unavailable
13
. BOLT
177-81552-10-00
Unavailable
14
. LUBRICATOR
144-81531-10-00
Unavailable
15
SCREW, PAN HEAD
92503-04020-00
Unavailable
16
. CONDENSER
144-81526-10-00
Unavailable
17
WASHER,PLAIN
92990-03200-00
Unavailable
18
WASHER, SPRING
92990-03100-00
Unavailable
19
SCREW,PAN HEAD
92501-03008-00
Unavailable
20
SCREW, PAN HEAD
92503-04020-00
Unavailable
21
SCREW,PAN HEAD
92503-04015-00
Unavailable
22
GROMMET
150-82355-00-00
Unavailable
23
PLUG CAP ASSY
166-82370-20-00
Unavailable
24
SPARK PLUG B9EN
94701-00016-00
Unavailable
24
SPARK PLUG B10EN
94701-00017-00
Unavailable
24
SPARK PLUG B11EN
94701-00018-00
Unavailable
25
GROMMET
177-15367-00-00
Unavailable
26
SCREW, PAN HEAD
92503-05025-00
Unavailable
