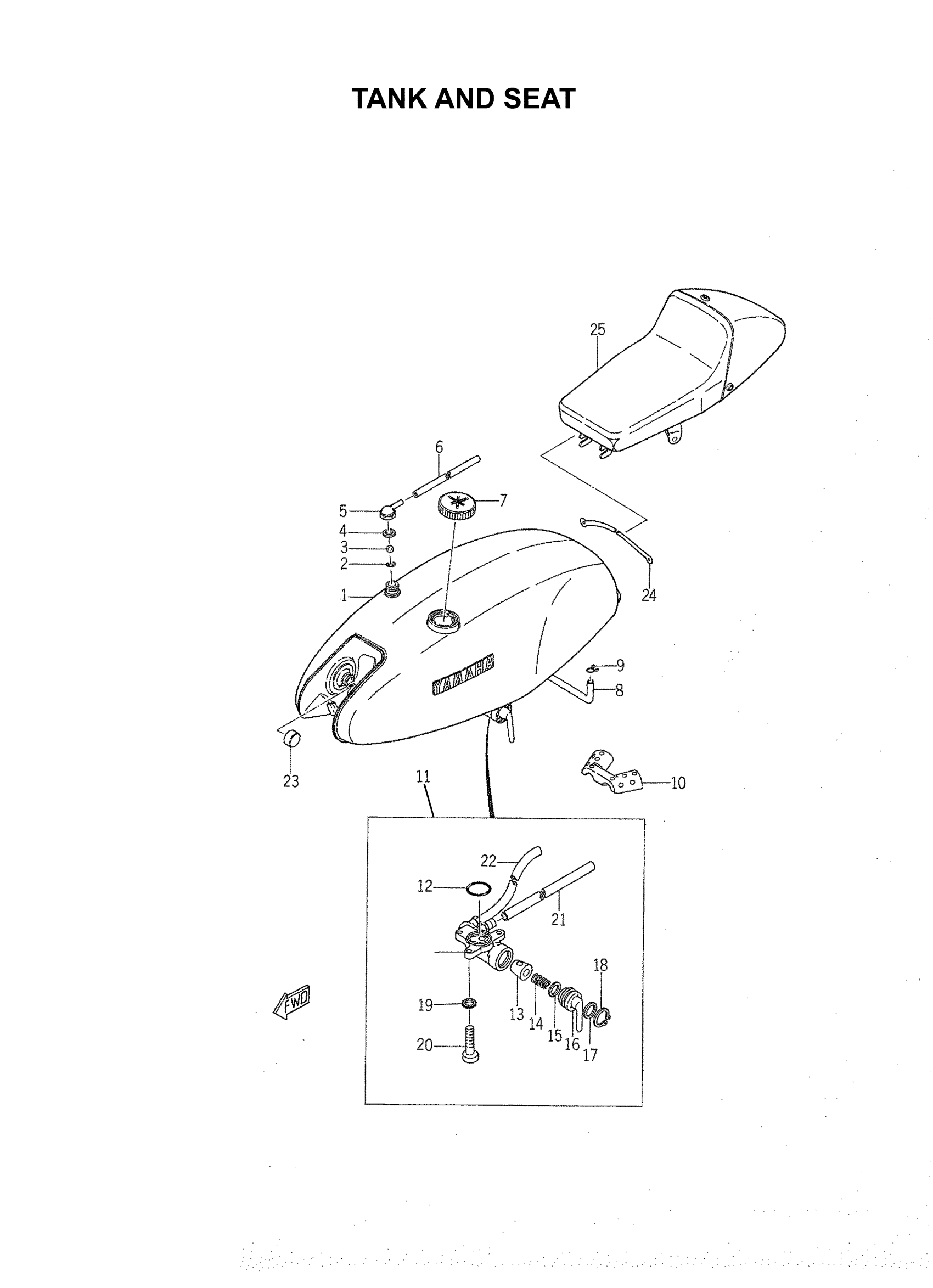

Yamaha TD1C (TD1) 177 1966 FUEL TANK AND SEAT Diagram

#

Description
Price

1

FUEL TANK

145-24110-00-46

Unavailable

2

CLIP, BALL HOLDER

143-24685-00-00

Unavailable

3

BALL, VALVE

143-24684-00-00

Unavailable

4

GASKET

90430-10028-00

Unavailable

5

NUT, BREATHER

143-24681-00-00

Unavailable

6

HOSE

90446-06007-00

Unavailable

7

CAP ASSY

122-24610-01-00

$22.99

8

PIPE, LEVEL

143-24331-00-00

Unavailable

9

CLIP

90467-100A1-00

$7.49

10

DAMPER, LOCATING

145-24183-00-00

Unavailable

11

FUEL COCK ASSY

145-24500-00-00

Unavailable

12

. GASKET

145-24512-00-00

Unavailable

13

. VALVE

145-24523-00-00

Unavailable

14

. SPRING

145-24529-00-00

Unavailable

15

. GASKET

145-24513-00-00

Unavailable

16

. LEVER

145-24524-00-00

Unavailable

17

. PLATE, LEVER FITTING

145-24525-00-00

Unavailable

18

. CLIP

145-24519-00-00

Unavailable

19

WASHET, TOOTH

92901-04500-00

Unavailable

20

SCREW

92601-04018-00

Unavailable

21

HOSE (L390)

90445-110H9-00

Unavailable

22

HOSE (L370)

90445-112E1-00

Unavailable

23

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

24

BAND, FUEL TANK

145-24173-00-00

Unavailable

25

SEAT ASSY

145-24710-00-00

Unavailable
