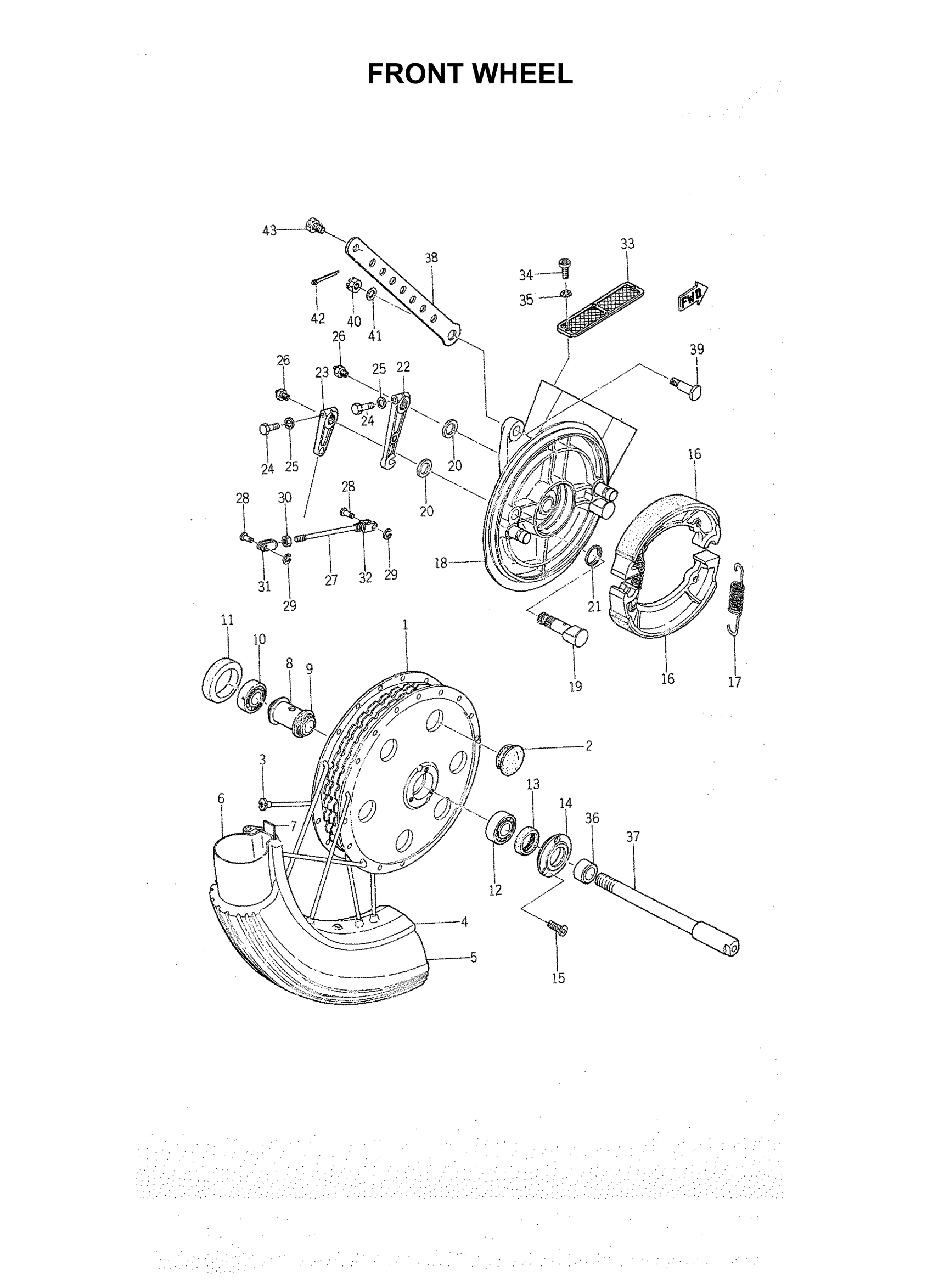

Yamaha TD1C (TD1) 177 1966 FRONT WHEEL Diagram

#

Description
Price

1

HUB,FRONT

177-25111-00-00

Unavailable

2

PLUG,SPEC'L SHAPE

90338-28052-00

Unavailable

3

SPOKE SET, FRONT

143-25104-00-00

Unavailable

4

RIM 1.60X18

94416-18110-00

Unavailable

5

TIRE

94127-18053-00

Unavailable

6

TUBE

94227-18010-00

Unavailable

7

BAND, RIM (2J4)

94340-18086-00

$17.99

8

SPACER, BEARING

144-25117-00-00

Unavailable

9

FLANGE, SPACER

146-25115-00-00

$6.99

10

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

12

BRG, R-B (7H4)

93306-20211-00

$25.99

13

OIL SEAL, OS-TYPE

93102-22027-00

Unavailable

14

HOUSING, OIL SEAL

144-25145-00-00

Unavailable

15

SCREW,OVAL HEAD

92601-05012-00

Unavailable

16

BRAKE SHOE

177-25130-00-00

Unavailable

17

SPRING, SHOE RETURN

143-25333-00-00

Unavailable

18

PLATE,BRAKE SHOE

177-25121-00-00

Unavailable

19

CAMSHAFT

143-25151-00-00

Unavailable

20

SEAL, CAMSHAFT

143-25359-00-00

Unavailable

21

SHIM, CAMSHAFT

143-25153-00-00

Unavailable

22

LEVER, CAMSHAFT 1

145-25155-00-00

Unavailable

23

LEVER, CAMSHAFT 2

145-25156-00-00

Unavailable

24

BOLT, HEXAGON

97017-06025-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

NIPPLE, GREASE

93700-06M03-00

Unavailable

27

ROD

143-25161-00-00

Unavailable

28

PIN,SPEC'L SHAPE

90249-06072-00

Unavailable

29

CIRCLIP (EU0)

99080-04600-00

Unavailable

30

NUT

95380-06300-00

Unavailable

31

END, ROD 1

143-25163-00-00

Unavailable

32

END, ROD 2

143-25164-00-00

Unavailable

33

COVER, SUCTION

143-25148-00-00

Unavailable

34

. SCREW

92503-03006-00

Unavailable

35

WASHER, SPRING

92990-03100-00

Unavailable

36

COLLAR

144-25183-00-00

Unavailable

37

AXLE,WHEEL

177-25181-00-00

Unavailable

38

BAR,TENSION

143-25171-00-93

Unavailable

39

BOLT, TENSION BAR UNDER

143-25173-00-00

Unavailable

40

NUT, SLOTTED

95307-08900-00

Unavailable

41

WASHER, PLAIN

92990-08200-00

Unavailable

42

PIN, COTTER

91401-020018-00

Unavailable

43

BOLT,FLAT HD.DRILL

95201-08015-00

Unavailable
