- TD1C (TD1) 177 1966
FRONT FORK

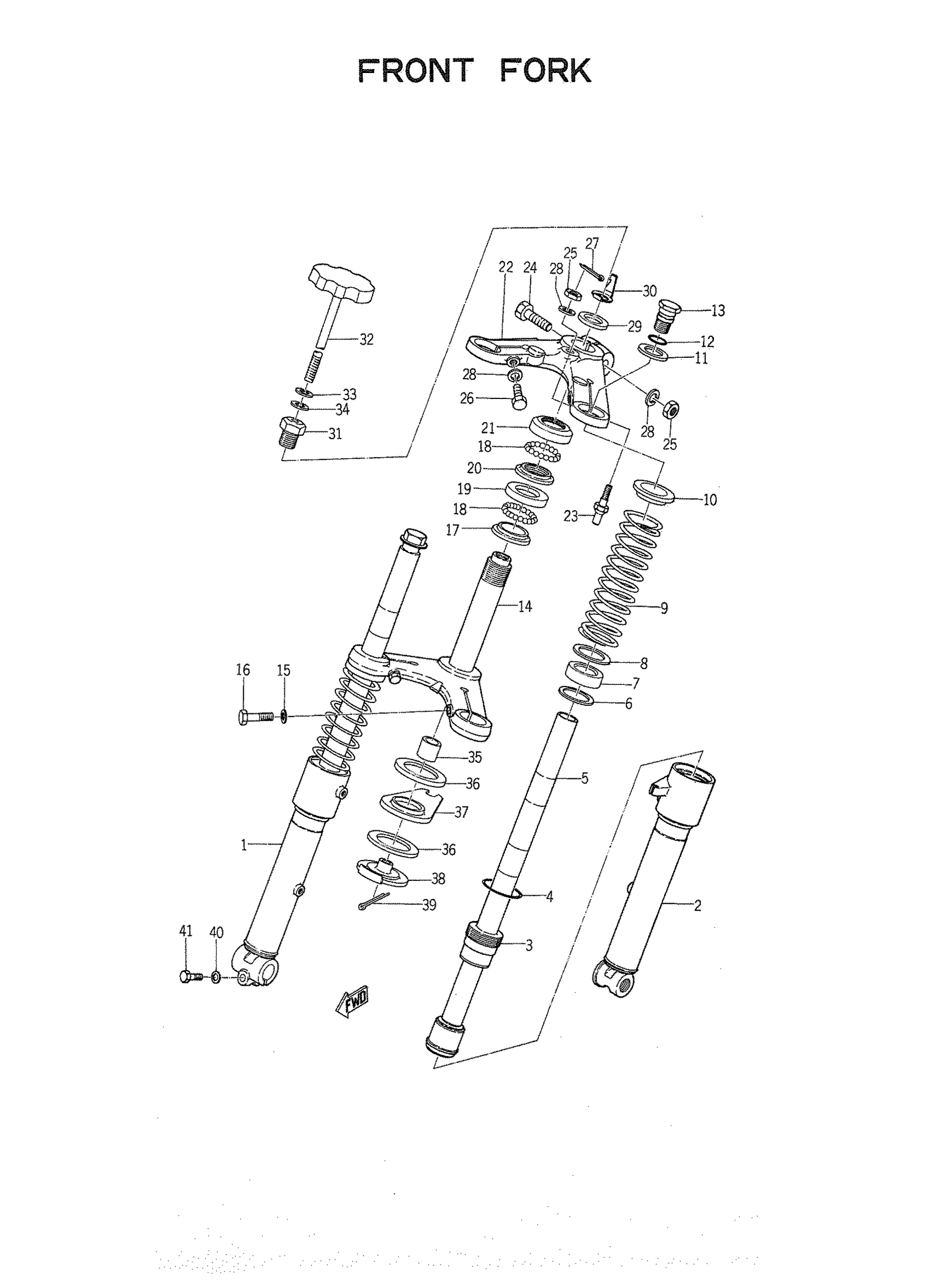

Yamaha TD1C (TD1) 177 1966 FRONT FORK Diagram
#
1
TUBE,OUTER 2
177-23136-00-47
Unavailable
2
TUBE,OUTER 1
177-23126-00-47
Unavailable
3
METAL, SLIDE 1
177-23125-00-00
Unavailable
4
O-RING
144-23147-00-00
Unavailable
5
TUBE, INNER 1
177-23124-00-00
Unavailable
6
WASHER, SPRING UNDER
144-23159-00-00
Unavailable
7
OIL SEAL
137-23145-00-OO
Unavailable
8
WASHER, OIL SEAL
177-23146-00-00
Unavailable
9
SPRING, FORK
177-23141-00-00
Unavailable
10
SEAT, SPRING UPPER
177-23142-00-00
Unavailable
11
WASHER
177-23112-00-00
Unavailable
13
BOLT, CAP
177-23111-00-00
Unavailable
14
UNDER BRACKET
177-23340-00-00
Unavailable
16
BOLT
144-23346-00-00
Unavailable
17
RACE, BALL UNDER 2
143-23414-00-00
Unavailable
18
BALL
95303-16010-00
Unavailable
19
RACE, BALL UNDER 1
143-23413-00-00
Unavailable
20
RACE, BALL UPPER 2
143-23412-00-00
Unavailable
21
RACE, BALL UPPER 1
143-23411-00-00
Unavailable
22
CROWN, HANDLE
177-23435-00-00
Unavailable
23
STOPPER
177-23429-00-00
Unavailable
24
BOLT
97014-08040-00
Unavailable
25
NUT(6L2)
95333-08600-00
Unavailable
26
BOLT
97013-08045-00
Unavailable
27
PIN, COTTER
91490-20025-00
Unavailable
28
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
29
WASHER, CROWN
177-23443-00-00
Unavailable
30
SPRING, DAMPER
144-23428-00-00
Unavailable
31
BOLT,UNION
90401-18023-00
Unavailable
32
SHAFT, DAMPER
177-23419-00-00
Unavailable
33
PIN, COTTER
156-23433-00-00
Unavailable
34
WASHER, PLATE 1412342700
90202-06008-00
Unavailable
35
BOLT
97013-08035-00
Unavailable
36
DAMPER, FRICTION
156-23425-00-00
Unavailable
37
PLATE,DAMPER 2
152-23422-00-47
Unavailable
38
PLATE,DAMPER 1
169-23421-00-33
Unavailable
39
BOLT
177-21531-00-00
Unavailable
40
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
41
BOLT
97013-08035-00
Unavailable
