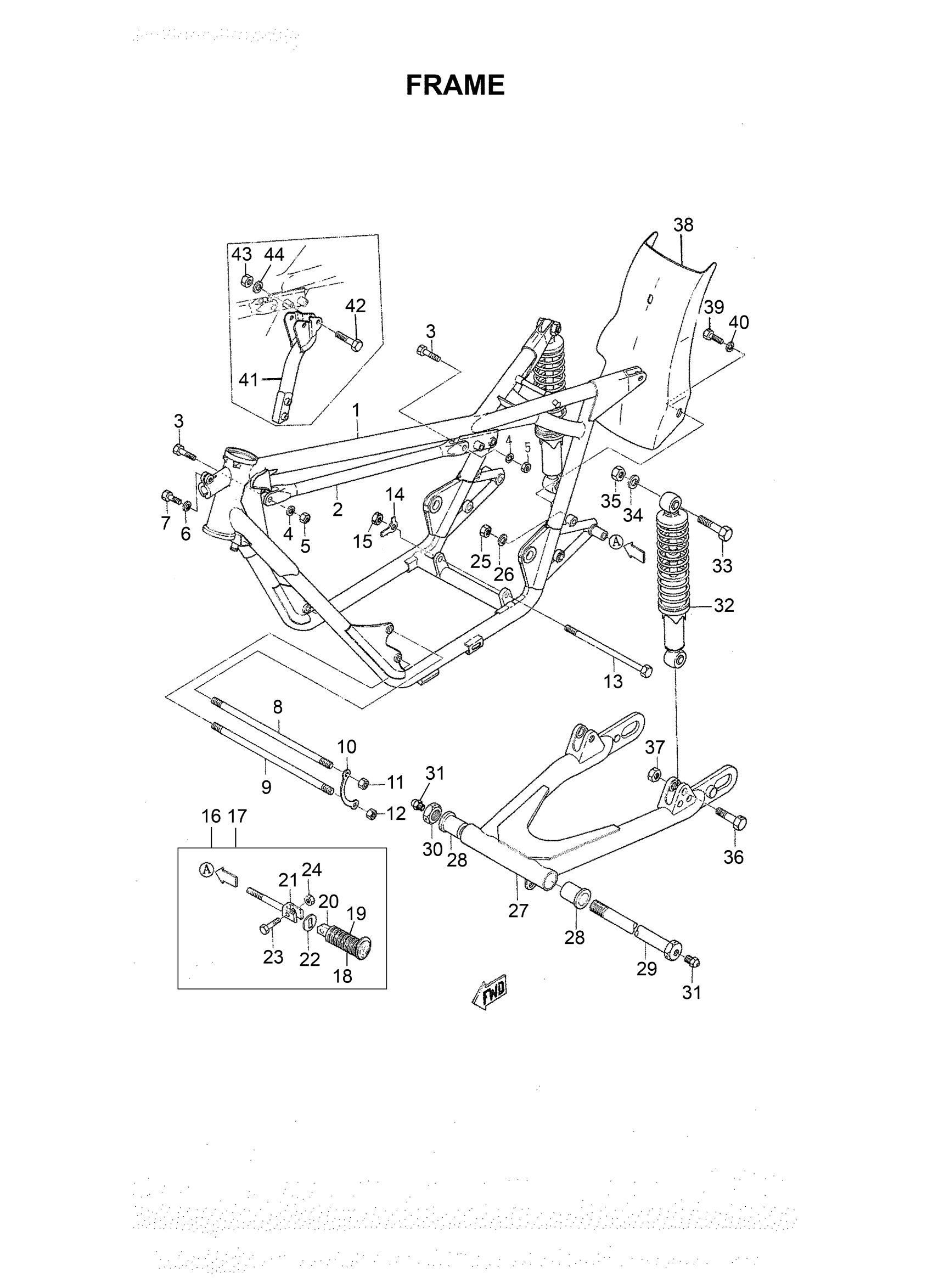

Yamaha TD1C (TD1) 177 1966 FRAME Diagram
#
1
FRAME
145-21110-02-47
Unavailable
2
PIPE,TENTION
143-21114-00-47
Unavailable
8
BOLT, STUD (90116-10093)
90116-10094-00
Unavailable
9
BOLT,STUD
90116-08151-00
Unavailable
10
WASHER, LOCK
145-21491-00-00
Unavailable
12
NUT, SELF LOCKING
90185-10031-00
Unavailable
13
BOLT
90101-10080-00
Unavailable
14
WASHER, LOCK
150-21492-00-00
Unavailable
15
NUT,SPEC'L SHAPE
90179-10119-00
Unavailable
16
FRT FOOTREST ASY L
145-27410-00-00
Unavailable
17
FRT FOOTREST ASY L
145-27410-00-00
Unavailable
18
. COVER, FOTTREST (LH)
145-27413-10-00
Unavailable
19
. COVER, FOTTREST (RH)
145-27423-10-00
Unavailable
20
FOOTREST
145-27411-10-00
Unavailable
21
BRACKET, FOOTREST
145-27412-10-00
Unavailable
22
WASHER, SPECIAL
145-27417-10-00
Unavailable
23
BOLT
145-27416-10-00
Unavailable
24
NUT, HEXAGON
95380-06600-00
Unavailable
25
NUT, SELF LOCKING
90185-10031-00
Unavailable
26
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
27
REAR ARM
143-22110-01-47
Unavailable
28
BUSHING, REAR ARM
143-22123-00-00
Unavailable
29
SHAFT, PIVOT
143-22141-00-00
Unavailable
30
NUT,SPEC'L SHAPE
90179-16118-00
Unavailable
31
NIPPLE, GREASE
93700-06M03-00
Unavailable
32
REAR CUSHION ASSY
143-22210-00-00
Unavailable
33
BOLT
177-22241-00-00
Unavailable
34
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
36
BOLT
177-22242-00-00
Unavailable
37
NUT (682)
95380-10700-00
Unavailable
38
FENDER, REAR
144-21611-00-00
Unavailable
39
BOLT, HEXAGON
97017-06020-00
Unavailable
40
WASHER, SPRING
92995-06100-00
Unavailable
41
STAY,FLT CHMBR MNT
145-21166-00-47
Unavailable
42
BOLT
97014-08040-00
Unavailable
