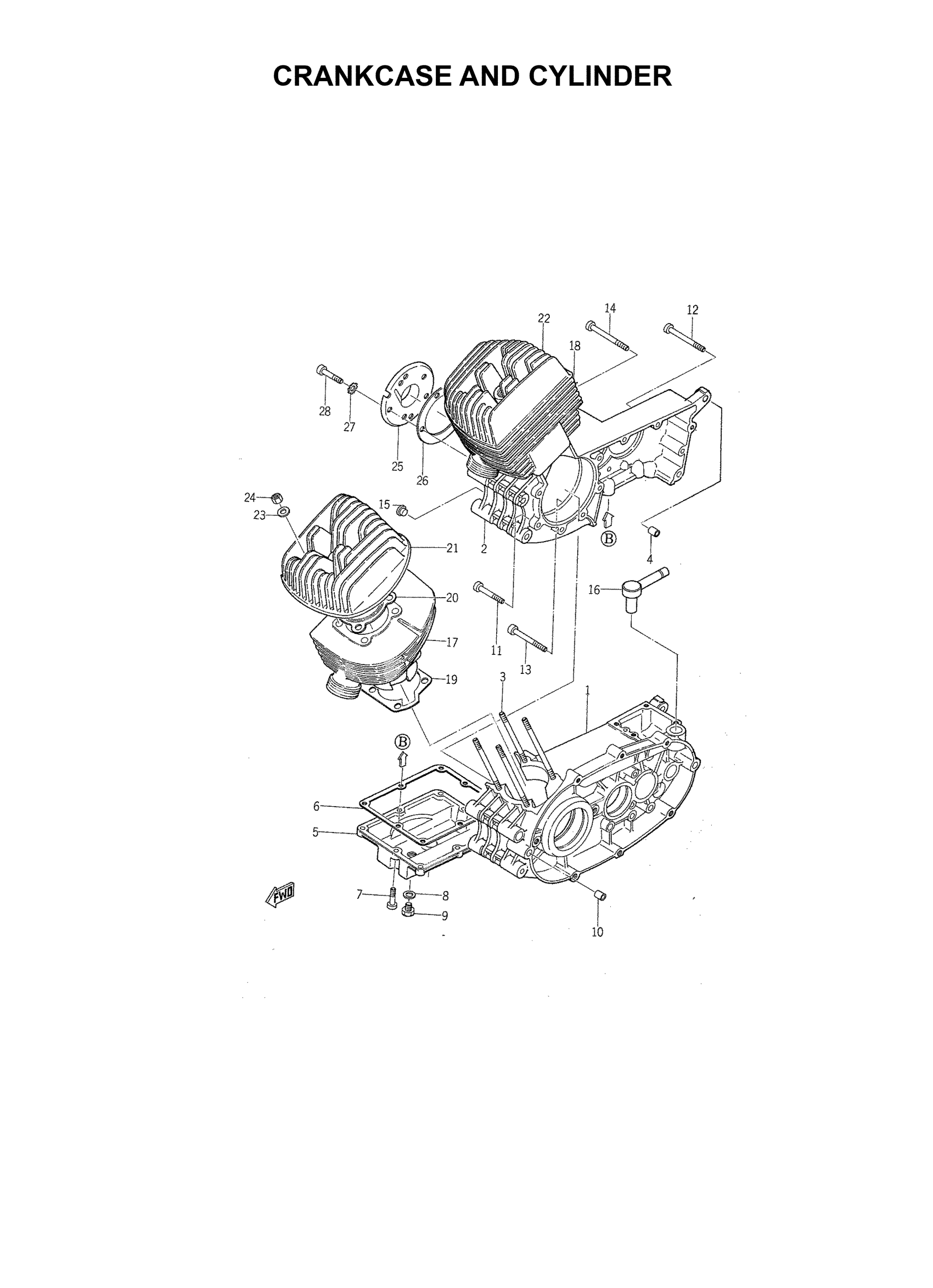

Yamaha TD1C (TD1) 177 1966 CRANKCASE AND CYLINDER Diagram

#

Description
Price

1

CRANKCASE ASY 1

204-15110-00-00

Unavailable

2

CRANKCASE 2

177-15121-01-00

Unavailable

3

BOLT,STUD

90116-08076-00

Unavailable

4

PIN, DOWEL

91810-05025-00

Unavailable

5

COVER,SHIFTER 1

177-15419-00-00

Unavailable

6

GASKET, SHFTR COVER

150-15459-00-00

Unavailable

7

SCREW PAN HEAD

98580-06020-00

$8.49

8

GASKET, DRAIN PLUG

137-15353-00

Unavailable

9

PLUG,STRAIGHT SCRW

90340-14033-00

Unavailable

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

12

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

13

SCREW, BIND (JH1)

98580-06560-00

Unavailable

14

SCREW PAN HEAD

98580-06040-00

$8.49

15

GROMMET

90480-12011-00

Unavailable

16

BREATHER

156-15371-00-00

Unavailable

17

CYLINDER (LH)

177-11311-01-00

Unavailable

18

CYLINDER (RH)

177-11321-01-00

Unavailable

19

GASKET,CYLINDER

171-11351-00-00

Unavailable

20

GASKET, CYLINDER HEAD

177-11181-00-00

Unavailable

21

HEAD, CYLINDER (LH)

177-11111-00-00

Unavailable

22

HEAD, CYLINDER (RH)

177-11121-00-00

Unavailable

23

WASHER, PLAIN

92990-08200-00

Unavailable

24

NUT(6L2)

95333-08600-00

Unavailable

25

HOUSING,OIL SEAL

156-15359-01-00

Unavailable

26

GASKET, OIL SEAL HOUSING

156-15369-00-00

Unavailable

27

WASHER, EX.TOOTH

92990-05400-00

Unavailable

28

SCREW,PAN HEAD

92503-05012-00

Unavailable
