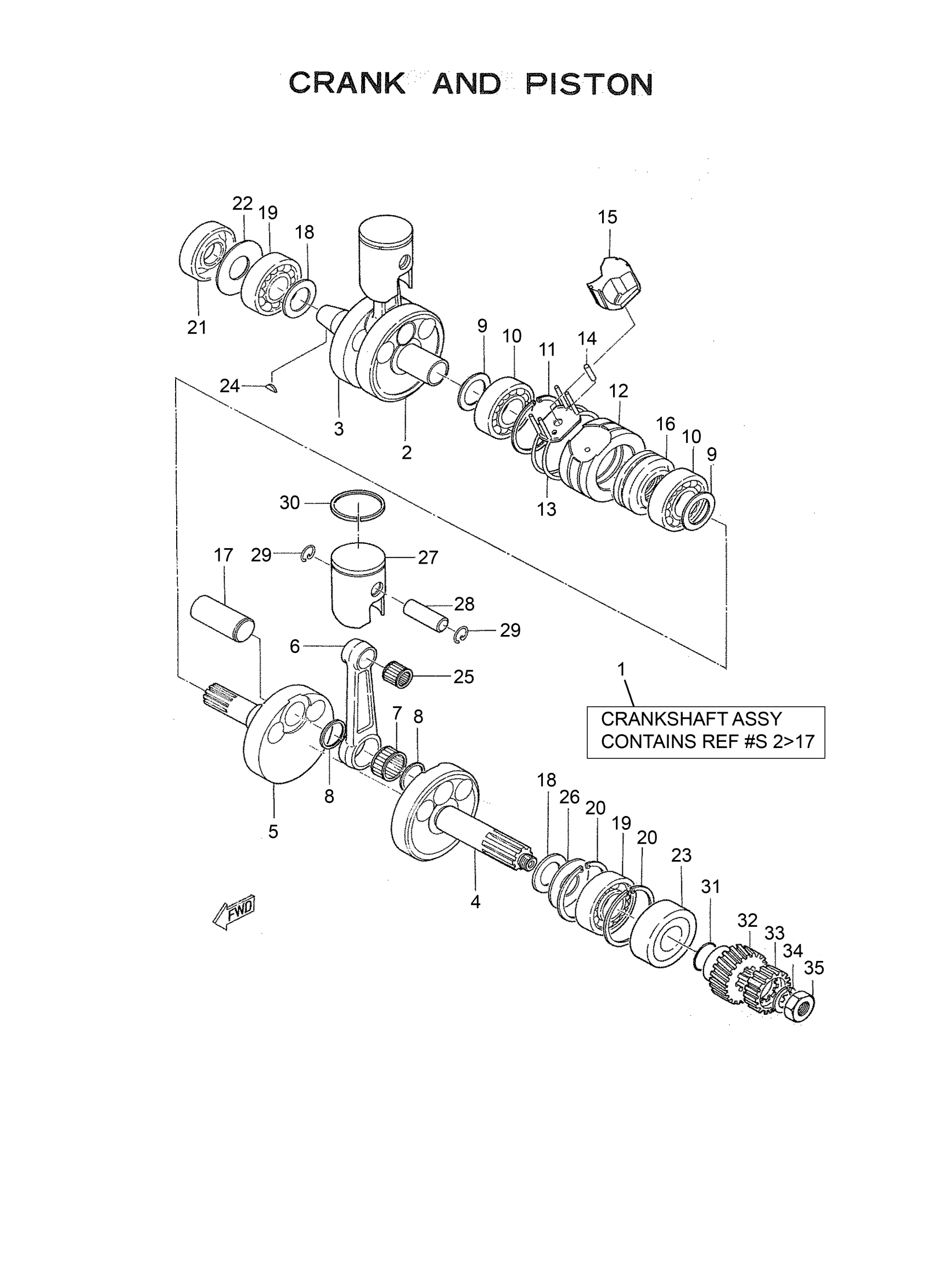

Yamaha TD1C (TD1) 177 1966 CRANK AND PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASY

170-11400-00-00

Unavailable

2

. CRANK 3

156-11432-01-00

Unavailable

3

. CRANK 4

170-11442-00-00

Unavailable

4

. CRANK 1

170-11412-00-00

Unavailable

5

CRANK 2

156-11422-01-00

Unavailable

6

ROD,CONNECTING

246-11651-00-00

Unavailable

7

BEARING, CYLINDER.#10

93310-42417-00

Unavailable

8

WASHER (152-11685-00)

90209-24073-00

$14.99

9

. SHIM, CRANK 4 (25-44-05)

156-11564-00-04

Unavailable

10

BEARING (5X5)

93306-20627-00

$75.99

11

CIRCLIP(MF1)

99009-62500-00

$8.49

12

. COVER, CRANK

170-11511-00-00

Unavailable

13

. SEAL, CRANK COVER

170-11512-00-00

Unavailable

14

PIN,DOWEL (137)

93604-14012-00

$1.81

15

. METAL, FILLER

170-11541-00-00

Unavailable

16

SEAL, LABYRINTH 1

145-11515-01-00

Unavailable

17

PIN, CRANK 1

156-11681-00-00

Unavailable

18

SHIM, CRANK 2

156-11562-00-05

Unavailable

19

BEARING (8R9)

93306-30536-00

Unavailable

20

CIRCLIP(MF1)

99009-62500-00

$8.49

21

BEARING (8R9)

93306-30536-00

Unavailable

22

SHIM,CRANK 3

156-11563-00-00

Unavailable

23

OIL SEAL, SW-TYPE

93103-35015-00

Unavailable

24

KEY,WOODRUFF

90280-04005-00

Unavailable

25

BEARING, NEEDLE (24X)

93310-216L2-00

Unavailable

26

SHIM, CRANK 1

156-11561-00-00

Unavailable

27

PISTON STD

177-11631-01-96

Unavailable

28

PIN, PISTON

137-11633-10-00

Unavailable

29

CIRCLIP (137-11634-00)

93450-17025-00

Unavailable

30

RING, PISTON

177-11611-00-00

Unavailable

31

O-RING (169)

93210-25071-00

Unavailable

32

GEAR, PRIMARY DRIVE

177-16111-00-00

Unavailable

33

GEAR, DRIVE

170-13188-00-00

Unavailable

34

WASHER(JN5)

92907-16100-00

Unavailable

35

NUT

90170-16425-00

Unavailable
