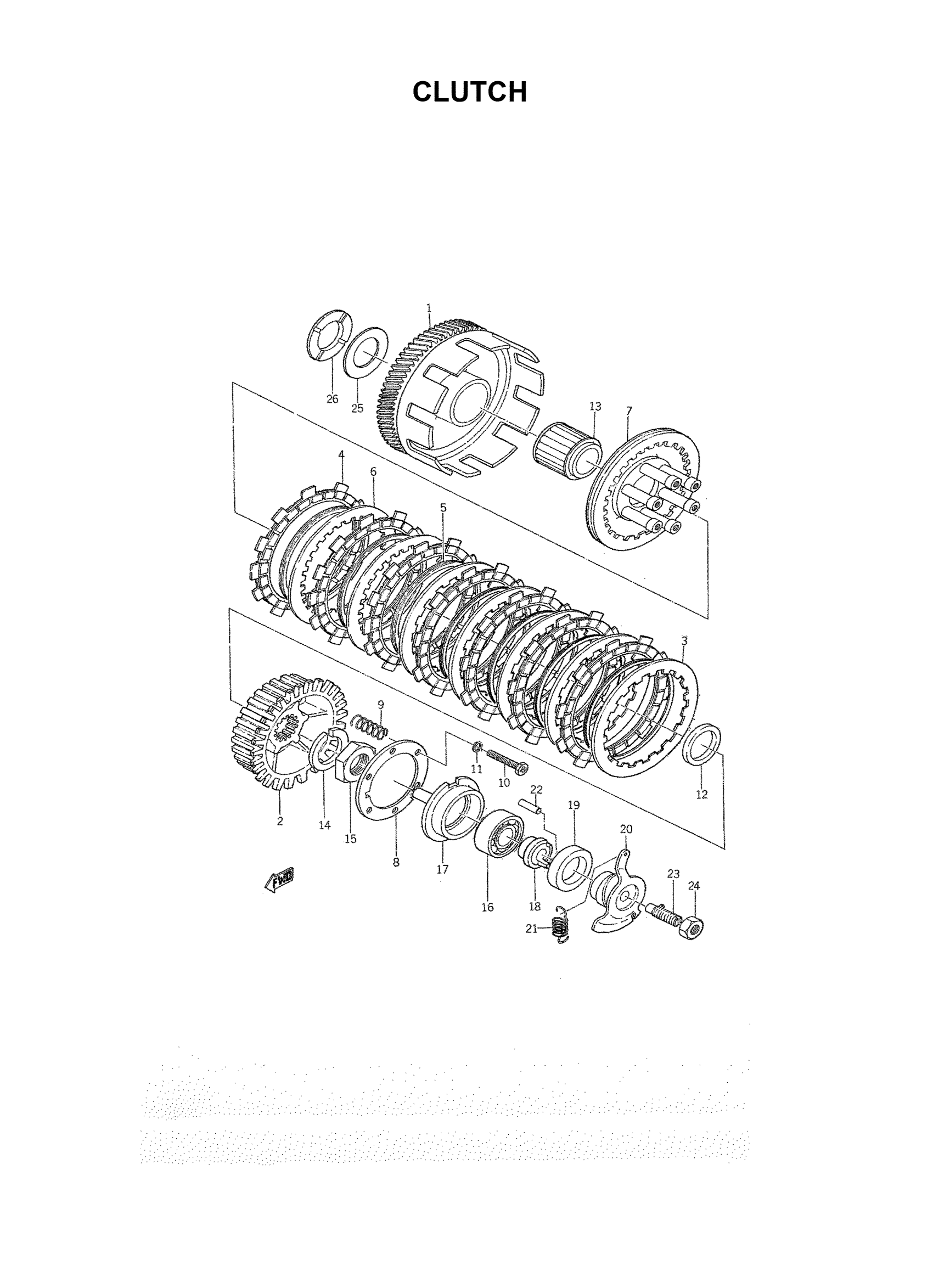

Yamaha TD1C (TD1) 177 1966 CLUTCH Diagram

#

Description
Price

1

CLUTCH ASY

177-16301-02-00

Unavailable

2

BOSS, CLUTCH

170-16371-00-00

Unavailable

3

PLATE, CLUTCH 1

168-16324-10-00

Unavailable

4

PLATE, FRICTION

5Y1-16331-01-00

$29.99

5

. RING, CUSHION

168-16367-00-00

Unavailable

6

PLATE, CLUTCH 2

168-16325-10-00

$14.49

7

PLATE,PRESSURE 1

168-16351-91-00

Unavailable

8

PLATE, PRESSURE 2

168-16352-00-00

Unavailable

9

SPRING,COMPRESSION

90501-20127-00

Unavailable

10

SCREW, SPRING

168-16337-00-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

WASHER, THRUST

168-16153-00-00

Unavailable

13

BEARING, CYLINDER.#18

93318-32501-00

Unavailable

14

WASHER(N15)

92907-18100-00

$9.49

15

NUT

90170-18089-00

Unavailable

16

BEARING, CYLINDER.#16

93316-00301-00

Unavailable

17

CROWN, PUSH

170-16348-00-00

Unavailable

18

PLUG, PUSH

168-16349-00-00

Unavailable

19

OIL SEAL

93101-25030-00

Unavailable

20

PUSH LEVER ASSEMBLY

170-16340-00-00

Unavailable

21

SPRING, TENSION

90506-10023-00

Unavailable

22

PIN, DOWEL

93603-14026-00

Unavailable

23

BOLT,SET

90113-08020-00

Unavailable

24

. NUT

95380-08700-00

Unavailable

25

WASHER, THRUST

168-16153-00-00

Unavailable
