TRANSMISSION

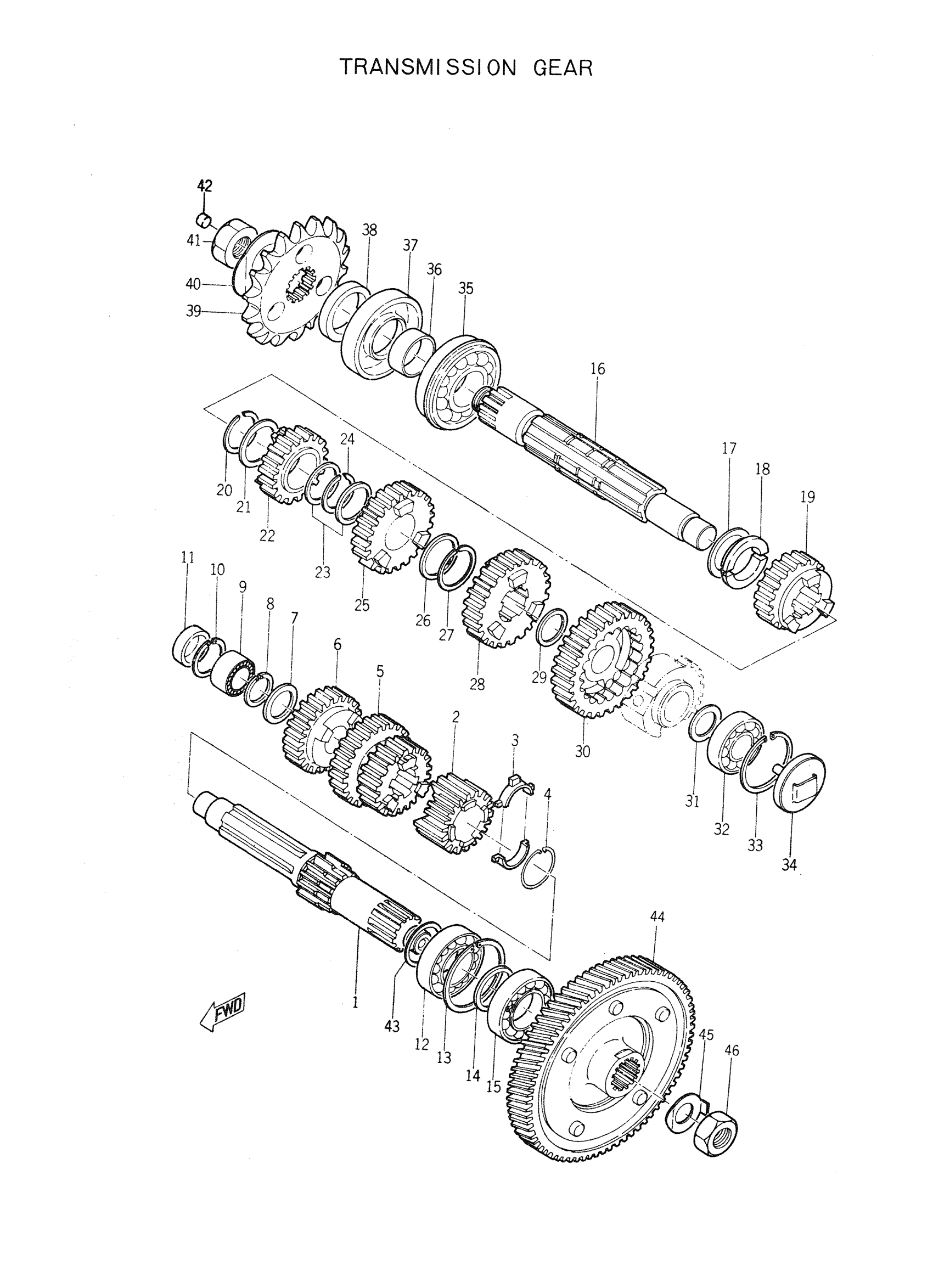

Yamaha TD1B (TD1) 145 1964 TRANSMISSION Diagram
#
1
AXLE, MAIN
145-17411-00-00
Unavailable
2
GEAR,2ND PINION
246-17121-00-00
Unavailable
3
PLATE, SETTING
156-17115-00-00
Unavailable
4
CLIP
90468-14036-00
Unavailable
5
GEAR, 3RD PINION
159-17131-01-00
Unavailable
6
GEAR, 4TH PINION
157-17141-00-00
Unavailable
7
WASHER, PLATE (30X)
90201-177G4-00
$9.49
8
CIRCLIP(1EY)
99009-17400-00
$4.73
9
BEARING, CYLINDER.#11
93311-21704-00
Unavailable
10
CIRCLIP
99009-25500-00
$7.49
11
PLUG, BLIND
156-17481-00-00
Unavailable
12
BEARING(1FF)
93306-00519-00
$36.99
13
CIRCLIP, INNER
93450-47011-00
Unavailable
14
SPACER
90560-25044-00
Unavailable
15
BRG,R-B 6005 47MM 85G KY
93306-00507-00
$42.99
16
AXLE, DRIVE
156-17421-00-00
Unavailable
17
SHIM 2
156-17428-00-00
Unavailable
18
SPACER, DRIVE AXLE
156-17429-00-00
Unavailable
19
GEAR, 4TH WHEEL
157-17241-00-00
Unavailable
20
CIRCLIP (4L0)
93440-25084-00
Unavailable
21
WASHER,SPEC'L SHAP
90209-21081-00
Unavailable
22
GEAR 5TH WHEEL
157-17251-00-00
Unavailable
23
WASHER PLATE 152172260000
90201-25490-00
Unavailable
24
CIRCLIP(JF7)
99009-25400-00
Unavailable
25
GEAR,3RD WHEEL
246-17231-00-00
Unavailable
26
WASHER,SPEC'L SHAP
90209-21081-00
Unavailable
27
CIRCLIP(JF7)
99009-25400-00
Unavailable
28
GEAR,2ND WHEEL
145-17221-00-00
Unavailable
29
WASHER, PLATE (5N0)
90201-203E7-00
Unavailable
30
GEAR, 1ST WHEEL
145-17211-00-00
Unavailable
31
SHIM 1
156-17427-00-06
Unavailable
31
SHIM 1
156-17427-00-07
Unavailable
31
SHIM 1
156-17427-00-08
Unavailable
32
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
Unavailable
33
CIR-CLIP (70R)
93420-40064-00
Unavailable
34
BUCKET, OIL 1
156-17488-00-00
Unavailable
35
BEARING
93306-30502-00
Unavailable
36
COLLAR(1AE)
90387-253M9-00
Unavailable
37
OIL SEAL, SD-TYPE
93102-30025-00
Unavailable
38
SEAL, FELT
156-17465-00-00
Unavailable
39
SPROCKET, DRIVE
156-17461-30-00
Unavailable
39
SPROCKET, DRIVE
156-17461-40-00
Unavailable
39
SPROCKET DRIVE
9384E-15155-00
Unavailable
39
SPROCKET, DRIVE
156-17461-60-00
Unavailable
39
SPROCKET, DRIVE
156-17461-70-00
Unavailable
39
SPROCKET, DRIVE
156-17461-80-00
Unavailable
40
WASHER, LOCK(3LD)
90215-21290-00
Unavailable
41
NUT 152174630000
90179-18020-00
Unavailable
42
PLUG,TAPER
90336-09002-00
Unavailable
43
SHIM 1
156-17417-00-01
Unavailable
44
PRIMARY DRIVEN GEAR COMP.
145-16150-00-00
Unavailable
45
WASHER,LOCK
90215-19089-00
Unavailable
46
NUT
90170-18089-00
Unavailable
