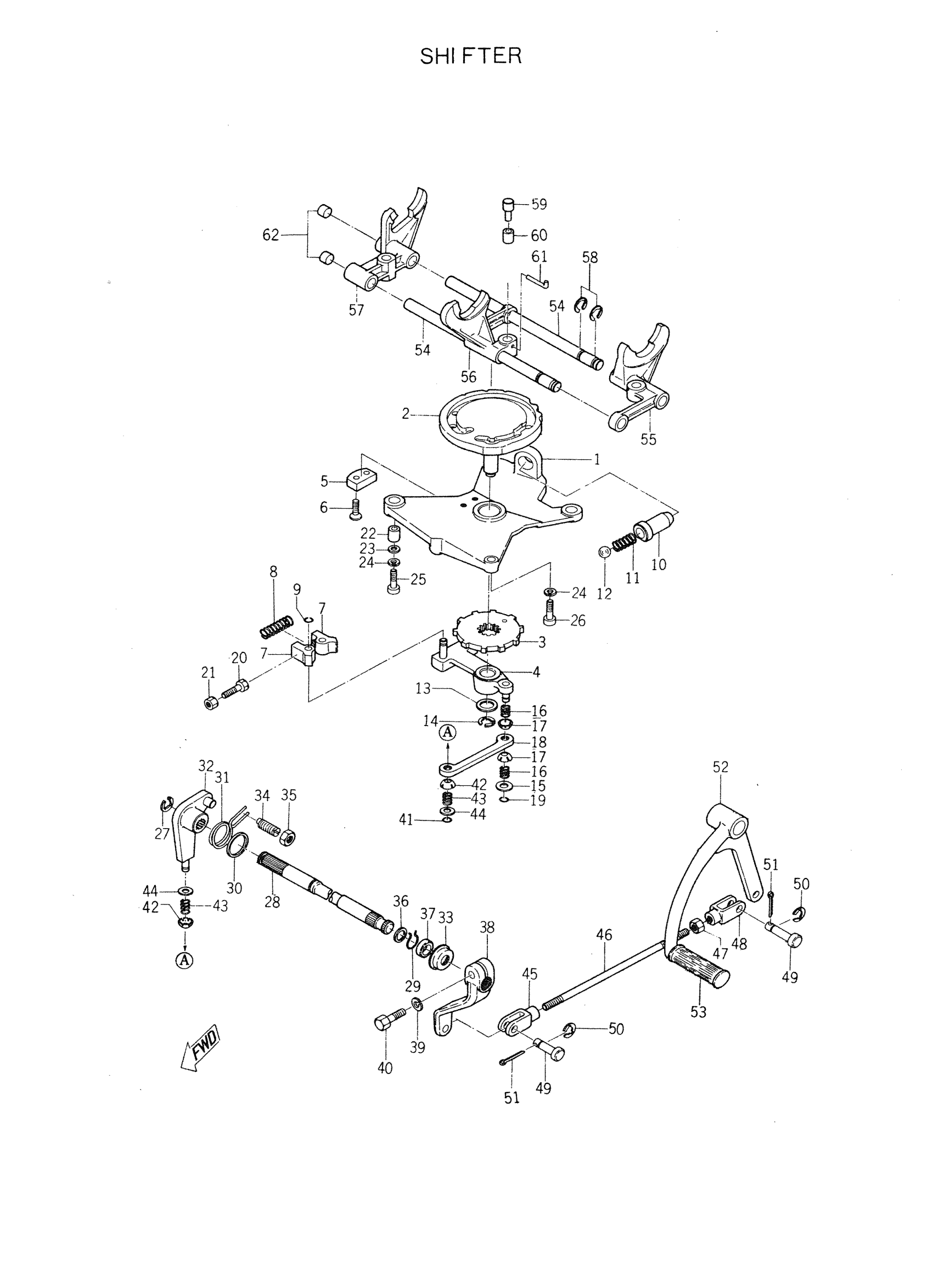

Yamaha TD1B (TD1) 145 1964 SHIFTER Diagram
#
1
PLATE,CAM FITTING
170-18351-00-00
Unavailable
2
PLATE, SHIFT CAM
152-18331-00-00
Unavailable
3
PLATE, WORKING
156-18333-00-00
Unavailable
4
PAWL HOLDER ASSEMBLY
156-18180-00-00
Unavailable
5
PLATE, PAWL
150-18352-00-00
Unavailable
6
SCREW,OVAL HEAD
92601-04012-00
Unavailable
7
PAWL, SHIFTER
150-18182-00-00
Unavailable
8
SPRING,COMPRESSION
90501-06026-00
Unavailable
9
CLIP, PAWL LOCK
150-18189-00-00
Unavailable
10
BUSH
150-18587-00-00
Unavailable
11
SPRING,COMPRESSION
90501-16098-00
Unavailable
12
BALL 13/32
93513-32008-00
Unavailable
13
SHIM
150-18334-00-09
Unavailable
14
CIRCLIP(2R6)
99001-08600-00
$8.49
15
WASHER,PLATE
90201-06046-00
Unavailable
16
SPRING,COMPRESSION
90501-05021-00
Unavailable
17
WASHER,SPEC'L SHAP
90209-06083-00
Unavailable
18
LINK, SHIFT
150-18335-00-00
Unavailable
19
CLIP, PAWL LOCK
150-18189-00-00
Unavailable
20
BOLT, HEXAGON
97017-06020-00
Unavailable
21
NUT, HEXAGON
95380-06600-00
Unavailable
22
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
23
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
CIRCLIP (137)
93430-10015-00
Unavailable
28
SHAFT, CHANGE
150-18125-00-00
Unavailable
29
CLIP, SHIFT SHAFT
150-18135-00-00
Unavailable
30
WASHER,PLATE
90201-12186-00
Unavailable
31
SPRING,TORSION
90508-40209-00
Unavailable
32
SHIFT LEVER ASY
150-18120-00-00
Unavailable
33
COVER, CHANGE SHAFT
150-18129-00-00
Unavailable
34
SCREW,SPEC'L SHAPE
90149-10045-00
Unavailable
35
NUT,HEXAGON
90170-10044-00
Unavailable
36
WASHER,PLATE
90201-12168-00
Unavailable
37
OIL SEAL (12X22X5-371)
93102-12106-00
Unavailable
38
SCREW,SPEC'L SHAPE
90149-10045-00
Unavailable
39
WASHER, SPRING
92995-06100-00
Unavailable
40
BOLT, HEXAGON
97017-06020-00
Unavailable
41
CLIP, PAWL LOCK
150-18189-00-00
Unavailable
42
WASHER,SPEC'L SHAP
90209-06083-00
Unavailable
43
SPRING,COMPRESSION
90501-05021-00
Unavailable
44
WASHER,PLATE
90201-06046-00
Unavailable
45
JOINT, CHANGE ROD 1
144-18116-00-00
Unavailable
46
ROD, CHANGE
144-18115-00-00
Unavailable
47
. NUT
95380-08700-00
Unavailable
48
JOINT, CHANGE ROD 2
144-18117-00-00
Unavailable
49
PIN,SPEC'L SHAPE
90249-08085-00
Unavailable
50
CIRCLIP(53L)
99001-06600-00
Unavailable
51
PIN, COTTER
91490-20025-00
Unavailable
52
PEDAL,SHIFT
144-18111-00-93
Unavailable
53
COVER, CHANGE PEDAL
132-18113-01-00
Unavailable
54
SHAFT, SHIFTER
150-18318-00-00
Unavailable
55
FORK, SHIFT 3
152-18313-00-00
Unavailable
56
FORK, SHIFT 1
152-18311-00-00
Unavailable
57
FORK, SHIFT 2
152-18312-00-00
Unavailable
58
CIRCLIP(2R6)
99001-08600-00
$8.49
59
PIN, CAM FOLLOWER
145-18327-00-00
Unavailable
60
PIN,SPEC'L SHAPE
90249-05035-00
Unavailable
61
PIN, SPEC''L SHAPE
90249-02003-00
Unavailable
62
PLUG, BLIND
90334-10006-00
Unavailable
