REAR WHEEL

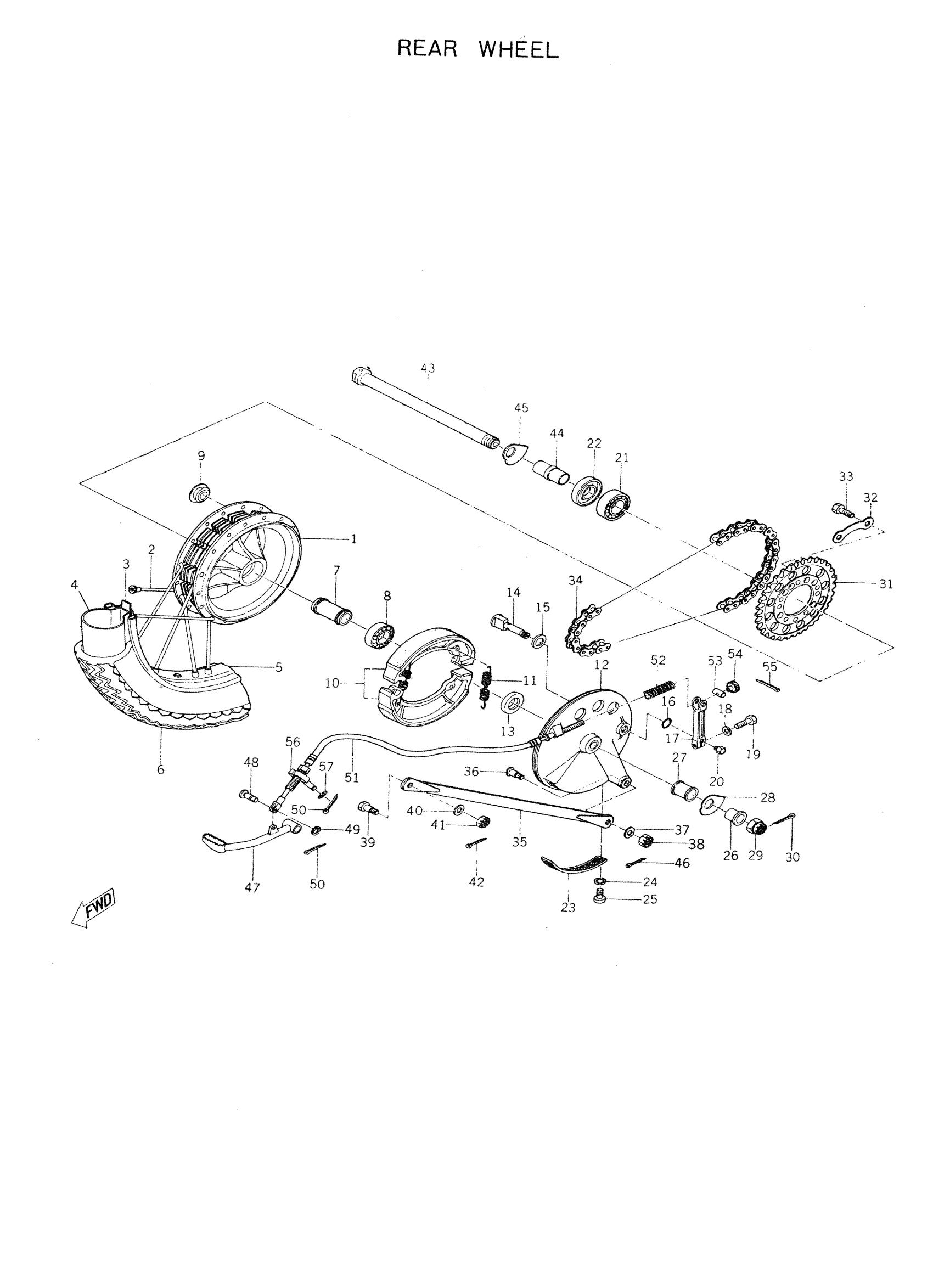

Yamaha TD1B (TD1) 145 1964 REAR WHEEL Diagram
#
1
HUB,REAR
143-25311-01-00
Unavailable
2
SPOKE SET, REAR
143-25304-00-00
Unavailable
3
BAND, RIM (2J4)
94340-18086-00
$17.99
4
TUBE (5H5)
94227-18195-00
$35.99
5
RIM 1.60X18
94416-18110-00
Unavailable
6
TIRE
94130-18054-00
Unavailable
7
SPACER
143-25317-00-00
Unavailable
8
BRG,R-B 6202Z 35MM 48G NT
93306-20204-00
$22.99
9
PLUG,SPEC'L SHAPE
90338-28052-00
Unavailable
10
BRAKE SHOE
177-25330-00-00
Unavailable
11
SPRING, SHOE RETURN
143-25333-00-00
Unavailable
12
PLATE,BRAKE SHOE
177-25321-00-00
Unavailable
13
OIL SEAL, OS-TYPE
93102-22027-00
Unavailable
14
CAMSHAFT
143-25351-00-00
Unavailable
15
SHIM, CAMSHAFT
143-25153-00-00
Unavailable
16
O-RING (137)
93210-12014-00
Unavailable
17
LEVER, CAMSHAFT
143-25355-00-00
Unavailable
18
SPRING, TENSION 2462533300
90507-20002-00
Unavailable
19
BOLT, HEXAGON
97017-06025-00
Unavailable
20
NIPPLE, GREASE
93700-06M03-00
Unavailable
21
BEARING
93306-30212-00
Unavailable
22
OIL SEAL (22X42X7)
93102-22014-00
Unavailable
23
COVER, SUCTION
143-25348-00-00
Unavailable
24
WASHER, SPRING
92990-03100-00
Unavailable
25
. SCREW
92503-03006-00
Unavailable
26
COLLAR, WHEEL SHAFT 1
143-25377-00-00
Unavailable
27
COLLAR, WHEEL SHAFT 2
143-25383-00-00
Unavailable
28
PULLER, CHAIN (LH)
143-25388-00-00
Unavailable
29
NUT,CASTLE
90171-15010-00
Unavailable
30
PIN, COTTER
91401-30025-00
Unavailable
31
SPROCKET,DRIVN 32T
177-25432-00-00
Unavailable
31
SPROCKET, DRIVN 34T
144-25434-00-00
Unavailable
31
SPROCKET, DRIVN 36T
144-25436-00-00
Unavailable
32
NUT, SLOTTED
95307-08900-00
Unavailable
33
COLLAR
90387-23180-00
Unavailable
34
525T 92L
94515-25092-00
Unavailable
34
. MASTER LINKS
94615-25001-00
Unavailable
35
BAR,TENSION
143-25371-00-93
Unavailable
36
BOLT
90109-08332-00
Unavailable
37
WASHER, PLAIN
92990-08200-00
Unavailable
38
NUT, SLOTTED
95307-08900-00
Unavailable
39
BOLT,TENS BAR FRT
177-25378-00-00
Unavailable
40
WASHER, PLAIN
90201-08200-00
Unavailable
41
NUT, SLOTTED
95307-08900-00
Unavailable
42
PIN, COTTER
91490-20025-00
Unavailable
43
SHAFT, REAR WHEEL
143-25381-00-00
Unavailable
44
COLLAR, SPROCKET SHAFT
143-25386-00-00
Unavailable
45
PULLER, CHAIN (RH)
143-25389-00-00
Unavailable
46
PIN, COTTER
91490-20025-00
Unavailable
47
PEDAL,BRAKE
144-27211-00-93
Unavailable
48
PIN,SPEC'L SHAPE
90249-06074-00
Unavailable
49
CIRCLIP (EU0)
99080-04600-00
Unavailable
50
PIN, COTTER
91490-20025-00
Unavailable
51
WIRE, REAR BRAKE
143-26351-00-00
Unavailable
52
SPRING, BRAKE WIRE
143-27236-00-00
Unavailable
53
PIN,SPEC'L SHAPE
90249-10073-00
Unavailable
54
NUT, SPEC''L SHAPE
90179-05150-00
Unavailable
55
PIN, COTTER
91490-16020-00
Unavailable
56
HOLDER, BRAKE WIRE
144-21161-00-00
Unavailable
57
CIRCLIP(53L)
99001-06600-00
Unavailable
62
BAR, PEDAL LINK
156-27224-00-00
Unavailable
