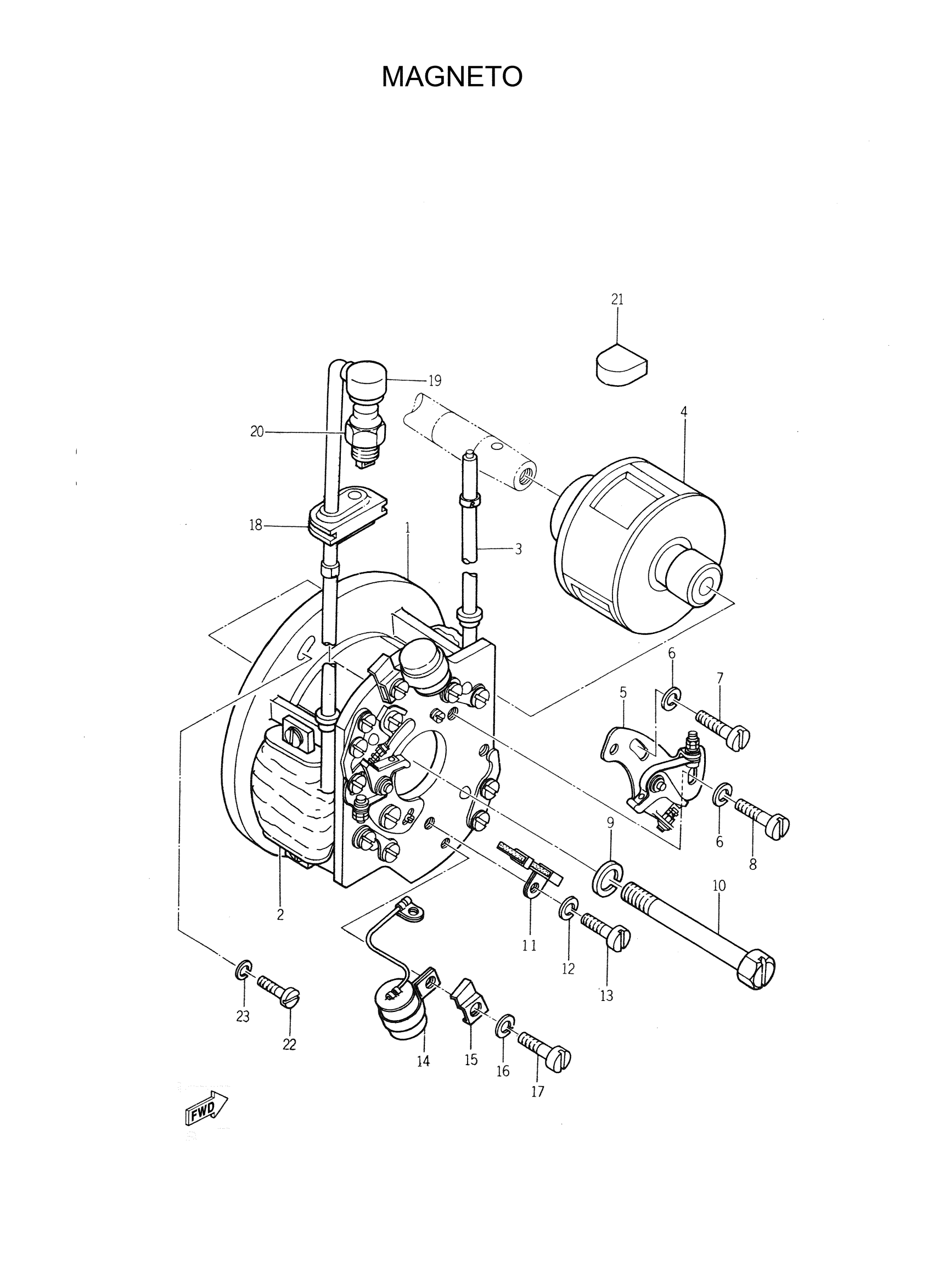

Yamaha TD1B (TD1) 145 1964 MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY

152-81500-10-00

Unavailable

2

. COIL, IGNITION (LH)

144-81511-10-00

Unavailable

3

. COIL, IGNITION (RH)

144-81512-10-00

Unavailable

4

. ROTOR ASSY

144-81510-10-00

Unavailable

5

CONTACT BRKR ASY 1

177-81521-10-00

Unavailable

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

. SCREW, ADJUSTING

144-81524-10-00

Unavailable

8

. SCREW

144-81523-10-00

Unavailable

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

. BOLT

144-81552-10-00

Unavailable

11

. LUBRICATOR

144-81531-10-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW,PAN HEAD

164-81245-20-00

Unavailable

14

. CONDENSER

144-81526-10-00

Unavailable

15

. FIXTURE, CONDENSER

144-81527-10-00

Unavailable

16

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

17

SCREW,PAN HEAD

164-81245-20-00

Unavailable

18

GROMMET

150-82355-00-00

Unavailable

19

PLUG CAP ASSY

166-82370-20-00

Unavailable

20

SPARK PLUG B9EN

94701-00016-00

Unavailable

20

SPARK PLUG B10EN

94701-00017-00

Unavailable

20

SPARK PLUG B11EN

94701-00018-00

Unavailable

21

GROMMET

150-15367-00-00

Unavailable

22

SCREW, PAN HEAD

92503-05025-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
