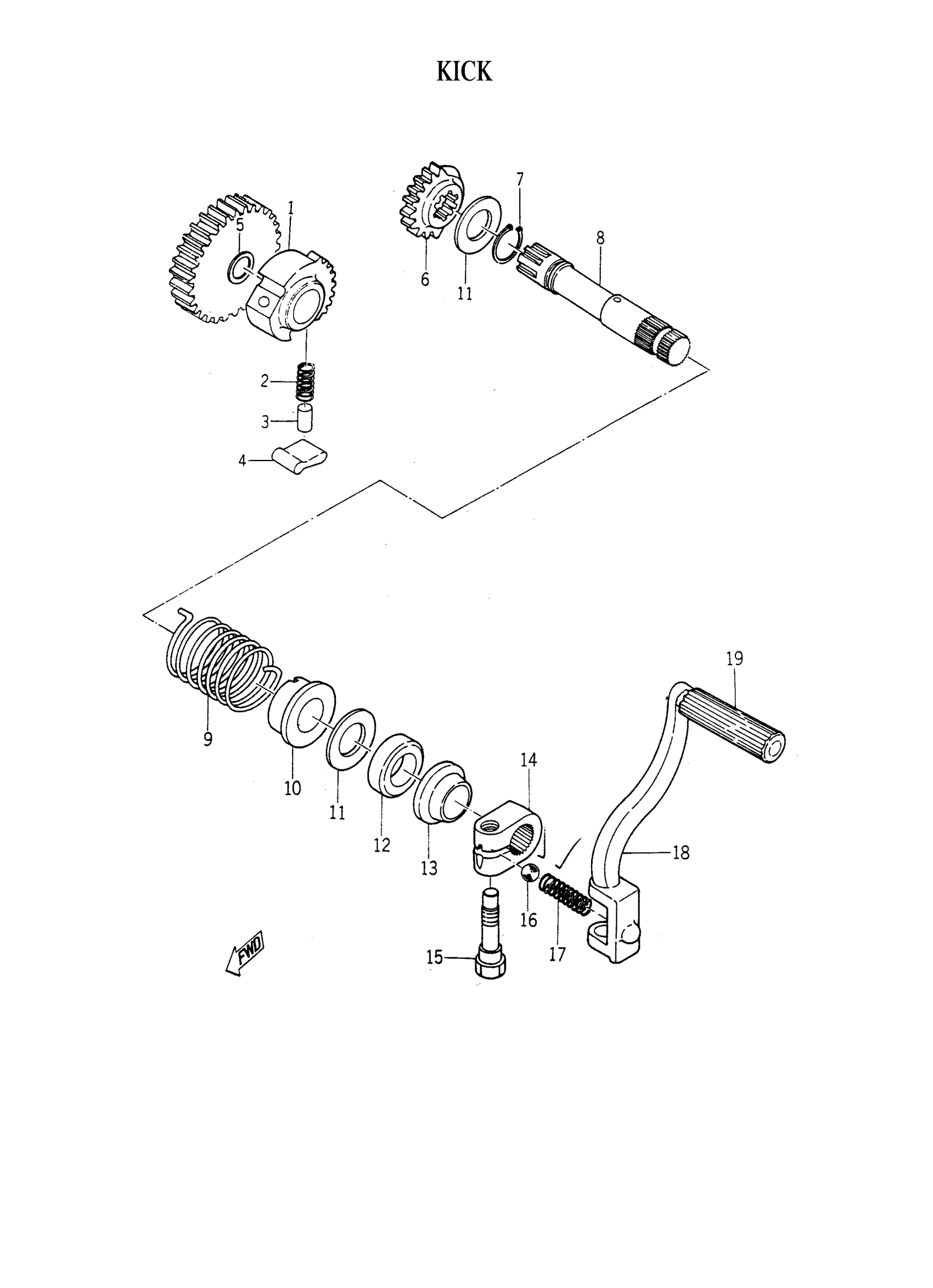

Yamaha TD1B (TD1) 145 1964 KICK Diagram

#

Description
Price

1

GEAR, KICK PINION

152-15631-01-00

Unavailable

2

SPRING,COMPRESSION

90501-05020-00

Unavailable

3

PIN,STRAIGHT

90250-05007-00

Unavailable

4

PAWL, KICK

152-15635-00-00

Unavailable

5

WASHER,PLATE

90201-20268-00

Unavailable

6

GEAR, KICK

156-15641-00-00

Unavailable

7

CIRCLIP, OUTER

93440-20002-00

Unavailable

8

AXLE, KICK

152-15661-00-00

Unavailable

9

SPRING,TORSION

90508-35069-00

Unavailable

10

GUIDE, SPRING

146-15664-00-00

Unavailable

11

WASHER, PLATE 1832514700

90201-20269-00

$7.49

12

OIL SEAL (20X30X4.5-146)

93104-20007-00

$8.49

13

COVER, KICK AXLE

146-15662-00-00

Unavailable

14

BOSS,KICK CRANK

156-15621-00-00

Unavailable

15

BOLT, KICK CRANK

150-15623-00-00

Unavailable

16

BALL

93501-04011-00

Unavailable

17

SPRING,COMPRESSION

90501-14093-00

Unavailable

18

CRANK,KICK

144-15611-00-93

Unavailable

19

COVER, KICK LEVER

156-15618-01-00

Unavailable
