- TD1B (TD1) 145 1964
FRONT WHEEL

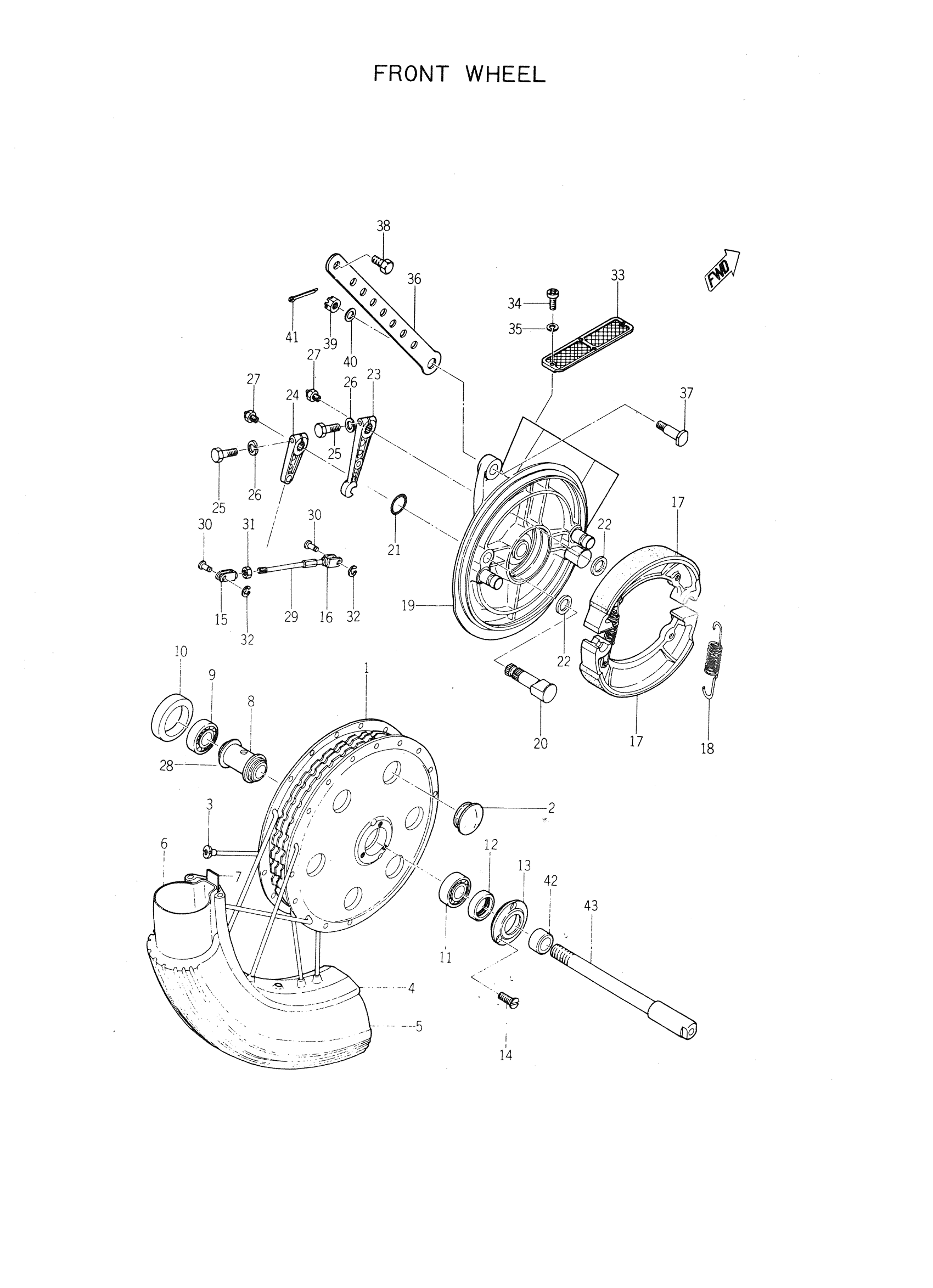

Yamaha TD1B (TD1) 145 1964 FRONT WHEEL Diagram
#
1
HUB,FRONT
177-25111-00-00
Unavailable
2
PLUG,SPEC'L SHAPE
90338-28052-00
Unavailable
3
SPOKE SET, FRONT
143-25104-00-00
Unavailable
4
RIM 1.60X18
94416-18110-00
Unavailable
5
TIRE
94127-18053-00
Unavailable
6
TUBE
94227-18010-00
Unavailable
7
BAND, RIM (2J4)
94340-18086-00
$17.99
8
SPACER, BEARING
144-25117-00-00
Unavailable
9
BRG,R-B 6202Z 35MM 48G NT
93306-20204-00
$22.99
10
FLANGE, SPACER
146-25315-00-00
$7.99
11
BRG, R-B (7H4)
93306-20211-00
$25.99
12
OIL SEAL (20X30X7-371)
93102-20108-00
$11.49
13
HOUSING, OIL SEAL
144-25145-00-00
Unavailable
14
SCREW,OVAL HEAD
92601-05012-00
Unavailable
15
END, ROD 1
143-25163-00-00
Unavailable
16
END, ROD 2
143-25164-00-00
Unavailable
17
BRAKE SHOE
177-25130-00-00
Unavailable
18
SPRING, SHOE RETURN
143-25333-00-00
Unavailable
19
PLATE,BRAKE SHOE
177-25121-00-00
Unavailable
20
CAMSHAFT
143-25151-00-00
Unavailable
21
SEAL, CAMSHAFT
143-25359-00-00
Unavailable
22
SHIM, CAMSHAFT
143-25153-00-00
Unavailable
23
LEVER, CAMSHAFT 1
145-25155-00-00
Unavailable
24
LEVER, CAMSHAFT 2
145-25156-00-00
Unavailable
25
BOLT, HEXAGON
97017-06025-00
Unavailable
26
WASHER, SPRING
92901-06001-00
Unavailable
27
NIPPLE, GREASE
93700-06M03-00
Unavailable
28
FLANGE, SPACER
146-25115-00-00
Unavailable
29
ROD
143-25161-00-00
Unavailable
30
PIN,SPEC'L SHAPE
90249-06072-00
Unavailable
31
NUT
95380-06300-00
Unavailable
32
CIRCLIP (EU0)
99080-04600-00
Unavailable
33
COVER, SUCTION
143-25148-00-00
Unavailable
34
. SCREW
92503-03006-00
Unavailable
35
WASHER, SPRING
92990-03100-00
Unavailable
36
BAR,TENSION
143-25171-00-93
Unavailable
37
BOLT, TENSION BAR UNDER
143-25173-00-00
Unavailable
38
BOLT,FLAT HD.DRILL
95201-08015-00
Unavailable
39
NUT, SLOTTED
95307-08900-00
Unavailable
40
WASHER, PLAIN
92990-08200-00
Unavailable
41
PIN, COTTER
91401-020018-00
Unavailable
42
COLLAR
144-25183-00-00
Unavailable
43
AXLE,WHEEL
177-25181-00-00
Unavailable
