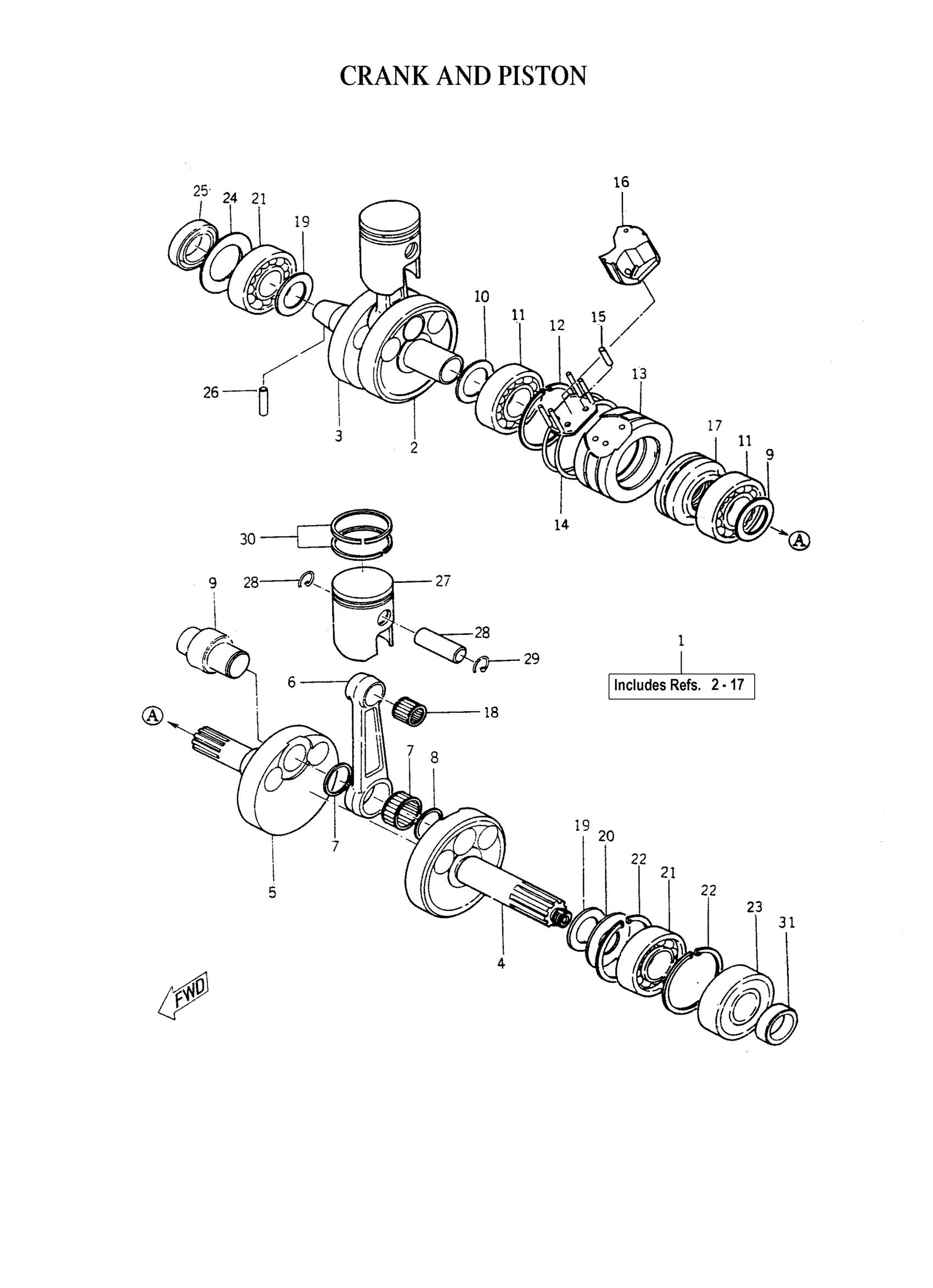

Yamaha TD1B (TD1) 145 1964 CRANK AND PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

156-11400-00-00

Unavailable

2

. CRANK 3

156-11432-01-00

Unavailable

3

. CRANK 2 (RH)

156-11442-00-00

Unavailable

4

. CRANK 1 (LH)

156-11412-00-00

Unavailable

5

CRANK 2

156-11422-01-00

Unavailable

6

ROD,CONNECTING

246-11651-00-00

Unavailable

7

BEARING, CYLINDER.#10

93310-42417-00

Unavailable

8

WASHER (152-11685-00)

90209-24073-00

$14.99

9

PIN, CRANK 1

156-11681-00-00

Unavailable

10

. SHIM, CRANK 4 (25-44-05)

156-11564-00-04

Unavailable

11

BEARING (5X5)

93306-20627-00

$75.99

12

CIRCLIP(MF1)

99009-62500-00

$8.49

13

COVER, CRANK

156-11511-01-00

Unavailable

14

SEAL, CRANK COVER

156-11512-00-00

Unavailable

15

PIN,DOWEL (137)

93604-14012-00

$1.81

16

METAL, FILLER

156-11541-00-00

Unavailable

17

SEAL, LABYRINTH 1

145-11515-01-00

Unavailable

18

BEARING, NEEDLE (24X)

93310-216L2-00

Unavailable

19

SHIM, CRANK 2

156-11562-00-05

Unavailable

20

SHIM, CRANK 1

156-11561-00-00

Unavailable

21

BEARING (8R9)

93306-30536-00

Unavailable

22

CIRCLIP(MF1)

99009-62500-00

$8.49

23

OIL SEAL, SW-TYPE

93103-35015-00

Unavailable

24

SHIM,CRANK 3

156-11563-00-00

Unavailable

25

OIL SEAL (20X36X10-733)

93103-20110-00

Unavailable

26

PIN,DOWEL (626)

93604-08062-00

Unavailable

27

PISTON STD

177-11631-01-96

Unavailable

28

PIN, PISTON

137-11633-10-00

Unavailable

29

CIRCLIP (137-11634-00)

93450-17025-00

Unavailable

30

RING, PISTON

144-11611-00-00

Unavailable

31

COLLAR

90387-25189-00

Unavailable
