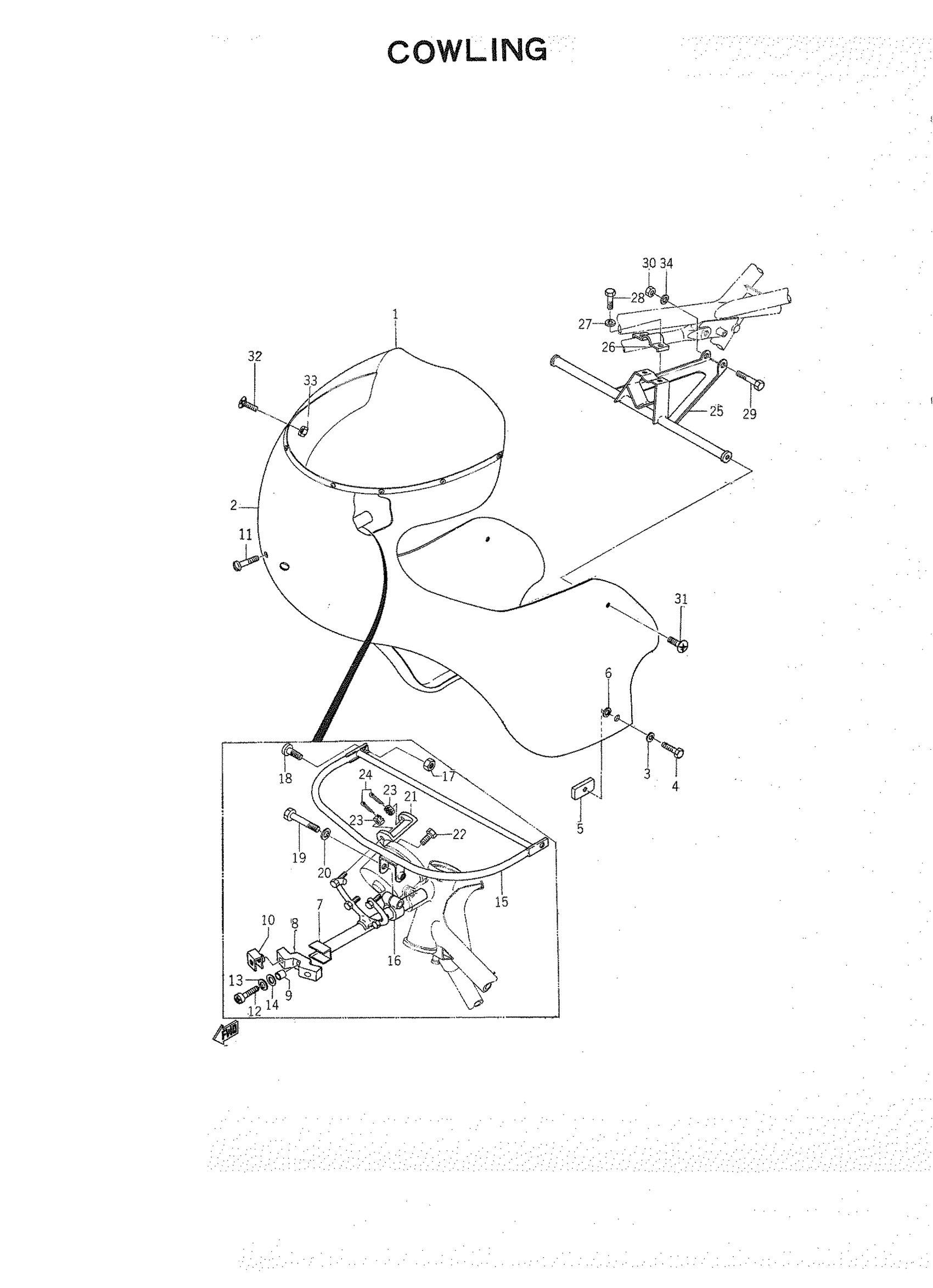

Yamaha TD1B (TD1) 145 1964 COWLING Diagram
#
1
TZ750E WNDSHD ONLY
ACC-11110-77-04
Unavailable
2
COWLING ASSY
328-28350-00-02
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
4
BOLT, COWLING
145-28374-00-00
Unavailable
5
NUT
143-28363-00-00
Unavailable
6
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
7
STAY 1
145-28356-00-47
Unavailable
8
DAMPER, COWLING
145-28371-00-00
Unavailable
9
COLLAR
145-28373-00-00
Unavailable
10
PLATE, FITTING
145-28361-00-00
Unavailable
11
SCREW
148-28352-00-00
Unavailable
12
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
13
WASHER, SPRING
92995-06100-00
Unavailable
14
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
15
STAY 2
145-28357-00-47
Unavailable
16
BRACKET, STAY
145-28367-00-00
Unavailable
17
NUT, NYLON
95707-06300-00
Unavailable
18
SCREW, ROUND HEAD(55K)
90150-06021-00
Unavailable
19
BOLT, HEXAGON
97013-06050-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
DAMPER, BRACKET
143-83543-00-00
Unavailable
22
BOLT,WITH HOLE
90102-05012-00
Unavailable
23
NUT, SLTED
95307-05900-00
Unavailable
24
. PIN, COTTER
91401-10015-00
Unavailable
25
STAY 1
143-28356-00-47
Unavailable
26
BRACKET, STAY
143-28366-00-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
29
BOLT, HEXAGON
97013-08055-00
Unavailable
30
NUT(6L2)
95333-08600-00
Unavailable
31
SCREW, ROUND HEAD(55K)
90150-06021-00
Unavailable
32
SCREW,SPEC'L SHAPE
90149-04083-00
Unavailable
33
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
34
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
