CARBURETOR

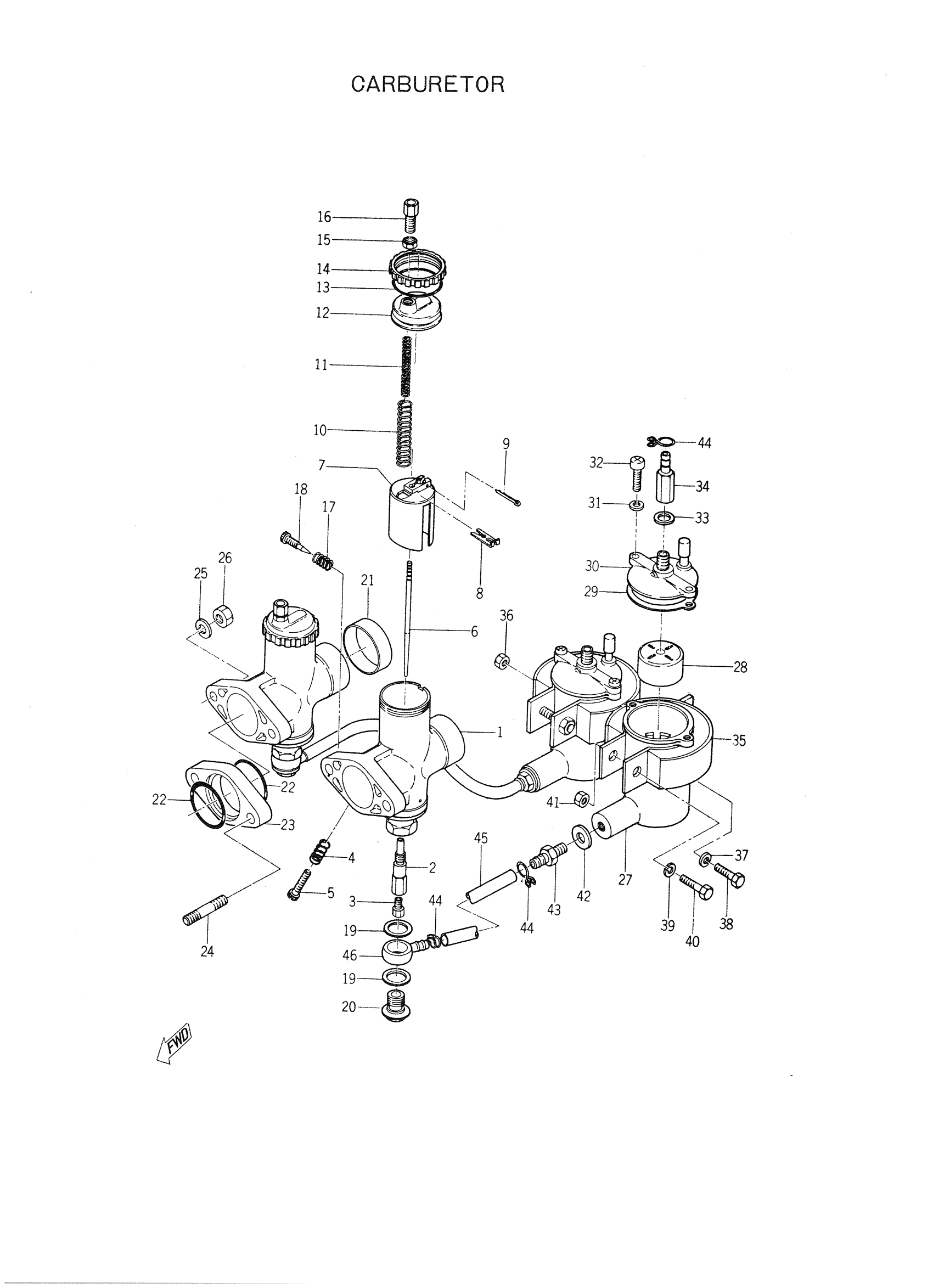

Yamaha TD1B (TD1) 145 1964 CARBURETOR Diagram
#
1
MIXING ASY 1
177-14110-00-00
Unavailable
2
NOZZLE,MAIN
145-14141-34-00
Unavailable
3
JET, MAIN #180
137-14143-36-A1
Unavailable
3
JET,MAIN #190
137-14143-38-A0
Unavailable
3
JET, MAIN #200
137-14143-40-A1
$13.49
3
JET, MAIN #210
137-14143-42-A1
Unavailable
3
JET, MAIN #220
137-14143-44-A1
$11.99
3
JET, MAIN #230
137-14143-46-A1
$13.49
4
. SPRING, THROTTLE STOP
143-14133-00-00
Unavailable
5
. SCREW, THRTL STOP
143-14121-00-00
Unavailable
6
. NEEDLE
143-14116-03-00
Unavailable
7
VALVE, THROTTLE
143-14112-52-00
Unavailable
8
. CLIP
143-14137-00-00
Unavailable
9
. PIN, COTTER
91401-10015-00
Unavailable
10
. SPRING, THRTL VALVE 1
143-14131-00-00
Unavailable
11
SPRING, THRTL VALVE
156-14131-01-00
Unavailable
12
. TOP, MIXING CHAMBER
143-14158-00-00
Unavailable
13
O-RING
184-14147-00-00
Unavailable
14
. CAP, MIXING CHAMBER
143-14168-00-00
Unavailable
15
NUT, WIRE ADJUSTING
127-14161-00-00
Unavailable
16
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
17
. SPRING, AIR ADJUSTING
143-14134-00-00
Unavailable
18
SCREW, AIR ADJUSTING
137-14123-00-00
Unavailable
19
. GASKET, HOLDING BOLT
143-14165-00-00
Unavailable
20
. BOLT, HOLDING
144-14162-00-00
Unavailable
21
COVER, MIXING
144-14157-00-00
Unavailable
22
O-RING
93210-33035-00
Unavailable
23
BAR, THROTTLE
156-14114-00-00
Unavailable
24
BOLT, STUD
145-13558-00-00
Unavailable
25
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
26
NUT(6L2)
95333-08600-00
Unavailable
27
FLOAT CHAMBER ASSY
144-14180-00-00
Unavailable
28
FLOAT
136-14185-00-00
Unavailable
29
GASKET,FLOAT CHMBR
136-14184-00-00
Unavailable
30
. COVER, FLOAT CHAMBER
143-14182-00-00
Unavailable
31
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
32
. SCREW
92301-04012-00
Unavailable
33
GASKET, FLOAT CHAMBER
144-14198-00-00
Unavailable
34
CONNECTOR, FLOAT
144-14188-00-00
Unavailable
35
HOLDER, FLOAT CHAMBER
145-14491-00-00
Unavailable
36
NUT, HEXAGON
95380-06600-00
Unavailable
37
WASHER, SPRING
92995-06100-00
Unavailable
38
BOLT, HEXAGON
97017-06030-00
Unavailable
39
WASHER, SPRING
92995-06100-00
Unavailable
40
BOLT(3RV)
97014-06035-00
Unavailable
41
NUT, HEXAGON
95380-06600-00
Unavailable
42
GASKET, CONNECTOR
144-14199-00-00
Unavailable
43
CONNECTOR, FLOAT PIPE
144-14189-00-00
Unavailable
44
CLIP(1JH)
90467-11106-00
Unavailable
45
PIPE, FLOAT
145-14149-00-00
Unavailable
46
CONNECTOR, BANJO
150-14167-00-00
Unavailable
